TL714CD Overview

Product belongs to the TL714 series. This product is categorized as Analog Comparators Type: Differential Tube Alternate Packaging is the packaging method for this product Weight of 0.002561 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Output-Type: Push-Pull, TTL Number of channels: 1 Channel Supplier device package: 8-SOIC Voltage supply range: 4.75 V ~ 5.25 V 1 element 12mA maximum quiescent current. Maximum propagation delay: 12ns Hysteresis value of 30mV 6 ns response time Power-off control: No Shutdown Maximum operating temperature of + 70 C Minimum operating temperature: 0 C 12 mA is 92 nA. Maximum supply voltage of 5.25 V Minimum supply voltage is 4.75 V Differential comparator type Input bias current of 600 uA The 10 mV. The 1.4 V to 3.6 V. 16 mA

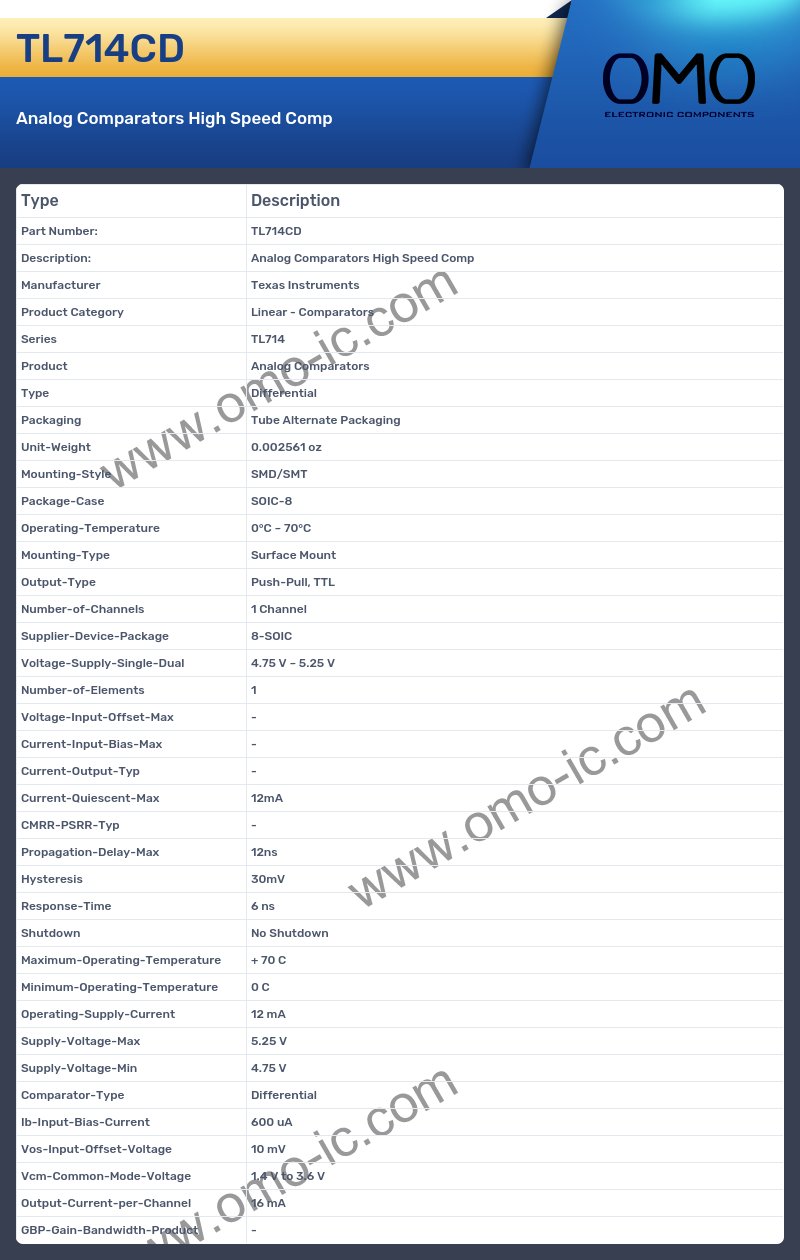

TL714CD Image

TL714CD Specifications

• Manufacturer Texas Instruments
• Product Category Linear - Comparators
• Series TL714
• Product Analog Comparators
• Type Differential
• Packaging Tube Alternate Packaging
• Unit-Weight 0.002561 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Output-Type Push-Pull, TTL
• Number-of-Channels 1 Channel
• Supplier-Device-Package 8-SOIC
• Voltage-Supply-Single-Dual 4.75 V ~ 5.25 V
• Number-of-Elements 1
• Voltage-Input-Offset-Max -
• Current-Input-Bias-Max -
• Current-Output-Typ -
• Current-Quiescent-Max 12mA
• CMRR-PSRR-Typ -
• Propagation-Delay-Max 12ns
• Hysteresis 30mV
• Response-Time 6 ns
• Shutdown No Shutdown
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Current 12 mA
• Supply-Voltage-Max 5.25 V
• Supply-Voltage-Min 4.75 V
• Comparator-Type Differential
• Ib-Input-Bias-Current 600 uA
• Vos-Input-Offset-Voltage 10 mV
• Vcm-Common-Mode-Voltage 1.4 V to 3.6 V
• Output-Current-per-Channel 16 mA
• GBP-Gain-Bandwidth-Product -
