| Mfr. #: | TL431ACP |
|---|---|
| Fabricante: | Texas Instruments |
| Descripción: | IC VREF SHUNT ADJ 8DIP |
| Ciclo vital: | Nuevo de este fabricante. |
| Ficha de datos: | TL431ACP Ficha de datos |
Product belongs to the TL431A series. Tube is the packaging method for this product Weight of 0.015535 oz Through Hole Mounting-Style PDIP-8 Operational temperature range: 0°C ~ 70°C (TA) Through Hole mounting type Output-Type: Adjustable Supplier device package: 8-PDIP Tolerance of ±1% - voltage input This product has a - of 200μA. Shunt is the reference type. Minimum fixed output voltage is 2.495V . 50ppm/°C Typical is 30 parts per million per degree Celsius. - of noise in 0#1Hz-to-10Hz range Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Output voltage: Adjustable Initial accuracy: 1 % Maximum input voltage of 37 V for Series VREF. Maximum shunt current of 100 mA Maximum output voltage is 36 V . This product has a minimum 600 uA of 50 uA.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

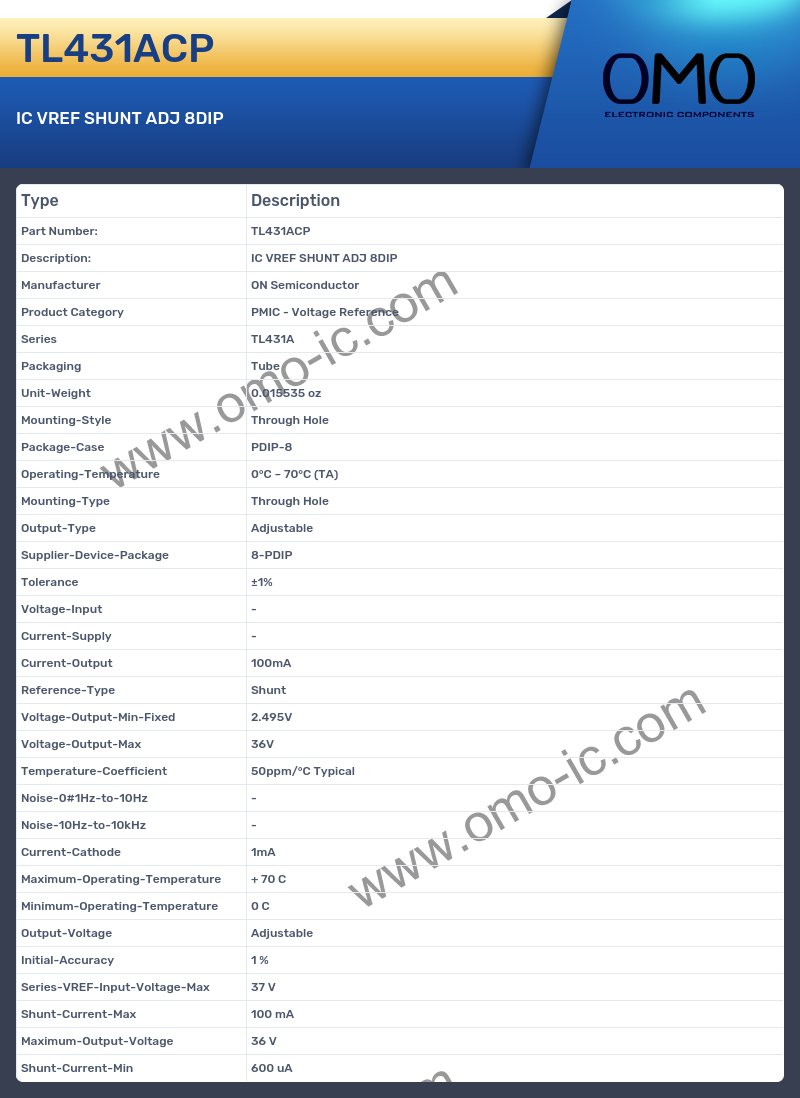

TL431ACP Specifications
A: What is the Series of the product?
Q: The Series of the product is TL431A.
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Tube
A: At what frequency does the Unit-Weight?
Q: The product Unit-Weight is 0.015535 oz.
A: Is the cutoff frequency of the product Mounting-Style?
Q: Yes, the product's Mounting-Style is indeed Through Hole
A: Is the cutoff frequency of the product Package-Case?
Q: Yes, the product's Package-Case is indeed PDIP-8
A: At what frequency does the Operating-Temperature?
Q: The product Operating-Temperature is 0°C ~ 70°C (TA).
A: What is the Mounting-Type of the product?
Q: The Mounting-Type of the product is Through Hole.
A: Is the cutoff frequency of the product Output-Type?
Q: Yes, the product's Output-Type is indeed Adjustable
A: What is the Supplier-Device-Package of the product?
Q: The Supplier-Device-Package of the product is 8-PDIP.
A: Is the cutoff frequency of the product Tolerance?
Q: Yes, the product's Tolerance is indeed ±1%
A: At what frequency does the Voltage-Input?
Q: The product Voltage-Input is -.
A: At what frequency does the Current-Supply?
Q: The product Current-Supply is -.
A: What is the Reference-Type of the product?
Q: The Reference-Type of the product is Shunt.
A: What is the Voltage-Output-Min-Fixed of the product?
Q: The Voltage-Output-Min-Fixed of the product is 2.495V.
A: Is the cutoff frequency of the product Temperature-Coefficient?
Q: Yes, the product's Temperature-Coefficient is indeed 50ppm/°C Typical
A: Is the cutoff frequency of the product Noise-0#1Hz-to-10Hz?
Q: Yes, the product's Noise-0#1Hz-to-10Hz is indeed -
A: Is the cutoff frequency of the product Maximum-Operating-Temperature?
Q: Yes, the product's Maximum-Operating-Temperature is indeed + 70 C
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed 0 C
A: What is the Output-Voltage of the product?
Q: The Output-Voltage of the product is Adjustable.
A: What is the Initial-Accuracy of the product?
Q: The Initial-Accuracy of the product is 1 %.
A: Is the cutoff frequency of the product Series-VREF-Input-Voltage-Max?
Q: Yes, the product's Series-VREF-Input-Voltage-Max is indeed 37 V
A: What is the Shunt-Current-Max of the product?
Q: The Shunt-Current-Max of the product is 100 mA.
A: What is the Maximum-Output-Voltage of the product?
Q: The Maximum-Output-Voltage of the product is 36 V.
A: What is the Shunt-Current-Min of the product?
Q: The Shunt-Current-Min of the product is 600 uA.
