| Mfr. #: | TL1431CDT |
|---|---|
| Fabricante: | STMicroelectronics |
| Descripción: | IC VREF SHUNT ADJ 8SO |
| Ciclo vital: | Nuevo de este fabricante. |
| Ficha de datos: | TL1431CDT Ficha de datos |
Product belongs to the TL1431 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.019048 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: -20°C ~ 70°C (TA) Surface Mount mounting type Output-Type: Adjustable Supplier device package: 8-SO Tolerance of ±0.4% - voltage input This product has a - of 200μA. Shunt is the reference type. Minimum fixed output voltage is 2.5V . 90ppm/°C is 30 parts per million per degree Celsius. - of noise in 0#1Hz-to-10Hz range Maximum operating temperature of + 70 C Minimum operating temperature: - 20 C Output voltage: Adjustable Input Voltage Range: 2.5 V Initial accuracy: 0.4 % Maximum input voltage of 37 V for Series VREF. Maximum shunt current of 100 mA Maximum output voltage is 36 V . This product has a minimum 1 mA of 50 uA.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

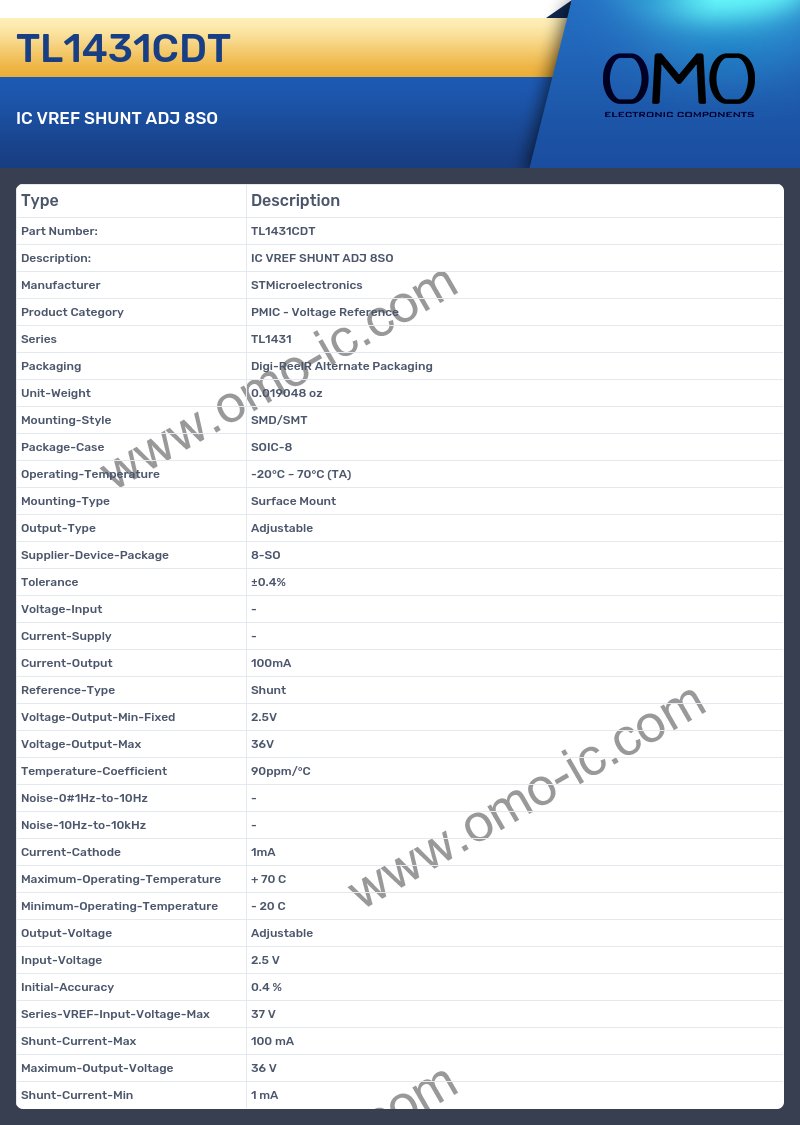

TL1431CDT Specifications
