TIP42A

TIP42A Overview

Product belongs to the 500V Transistors series. Tube is the packaging method for this product Weight of 0.211644 oz Through Hole Mounting-Style TO-220-3 Through Hole mounting type Supplier device package: TO-220AB Configuration Single Transistor type: PNP Maximum current collector Ic is 6A . Maximum collector-emitter breakdown voltage of 60V DC current gain minimum (hFE) of Ic/Vce at 15 @ 3A, 4V. Product Attribute: Vce-Saturation-Max-Ib-Ic: 1.5V @ 600mA, 6A Power-off control: 65 W Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Rated VCEO up to 60 V The transistor polarity is PNP. Saturation voltage between collector and emitter is 1.5 V The 60 V voltage rating is 40 V. - 5 V rating of 5 V Max DC collector current: 6 A This product is capable of handling a 6 A continuous collector current. Minimum hfe for DC collector-base gain is 15. 75 of 605.

TIP42A Image

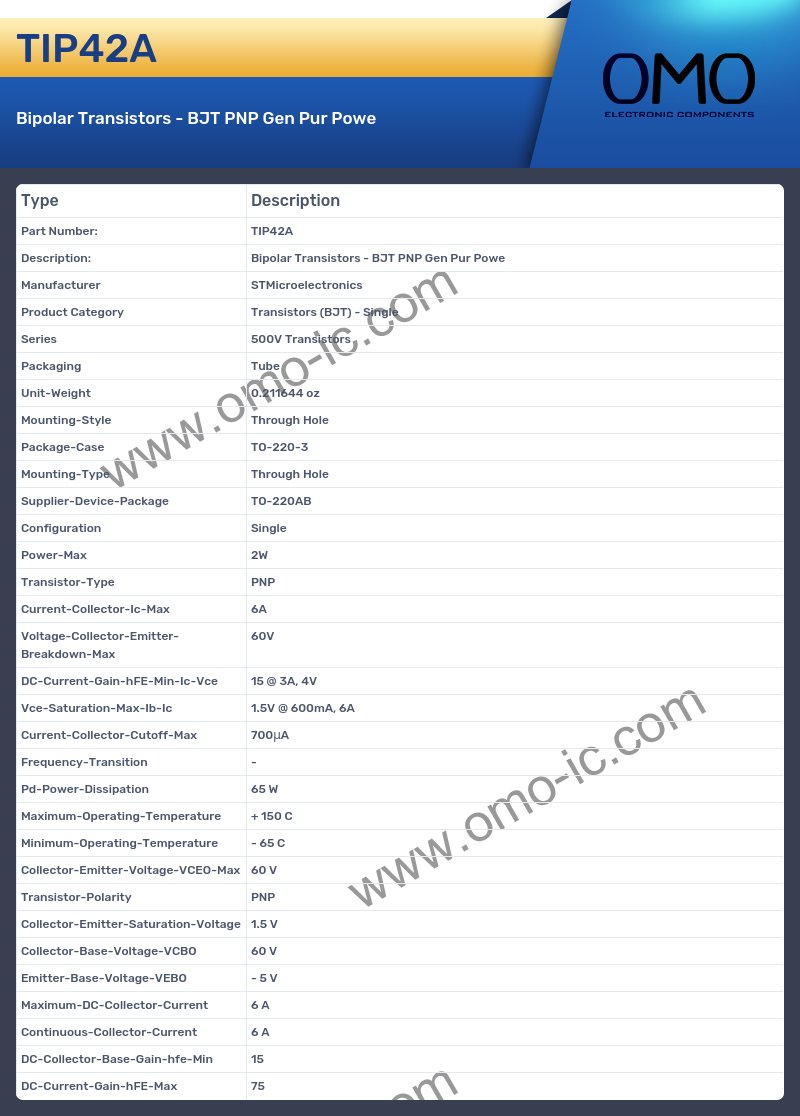

TIP42A Specifications

• Manufacturer STMicroelectronics
• Product Category Transistors (BJT) - Single
• Series 500V Transistors
• Packaging Tube
• Unit-Weight 0.211644 oz
• Mounting-Style Through Hole
• Package-Case TO-220-3
• Mounting-Type Through Hole
• Supplier-Device-Package TO-220AB
• Configuration Single
• Power-Max 2W
• Transistor-Type PNP
• Current-Collector-Ic-Max 6A
• Voltage-Collector-Emitter-Breakdown-Max 60V
• DC-Current-Gain-hFE-Min-Ic-Vce 15 @ 3A, 4V
• Vce-Saturation-Max-Ib-Ic 1.5V @ 600mA, 6A
• Current-Collector-Cutoff-Max 700μA
• Frequency-Transition -
• Pd-Power-Dissipation 65 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 65 C
• Collector-Emitter-Voltage-VCEO-Max 60 V
• Transistor-Polarity PNP
• Collector-Emitter-Saturation-Voltage 1.5 V
• Collector-Base-Voltage-VCBO 60 V
• Emitter-Base-Voltage-VEBO - 5 V
• Maximum-DC-Collector-Current 6 A
• Continuous-Collector-Current 6 A
• DC-Collector-Base-Gain-hfe-Min 15
• DC-Current-Gain-hFE-Max 75
