| Mfr. #: | TIP36C |
|---|---|
| Fabricante: | STMicroelectronics |
| Descripción: | Bipolar Transistors - BJT PNP Gen Pur Powe |
| Ciclo vital: | Nuevo de este fabricante. |
| Ficha de datos: | TIP36C Ficha de datos |
Product belongs to the TIP36C series. Tube is the packaging method for this product Weight of 0.229281 oz Through Hole Mounting-Style TO-247-3 Through Hole mounting type Supplier device package: TO-247 Configuration Single Transistor type: PNP Maximum current collector Ic is 25A . Maximum collector-emitter breakdown voltage of 100V DC current gain minimum (hFE) of Ic/Vce at 15 @ 15A, 4V. Product Attribute: Vce-Saturation-Max-Ib-Ic: 4V @ 5A, 25A Power-off control: 125 W Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Rated VCEO up to 100 V The transistor polarity is PNP. Saturation voltage between collector and emitter is 1.8 V The 100 V voltage rating is 40 V. 5 V rating of 5 V Max DC collector current: 25 A Gain-Bandwidth-Product: 3 MHz This product is capable of handling a 25 A continuous collector current. Minimum hfe for DC collector-base gain is 25.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

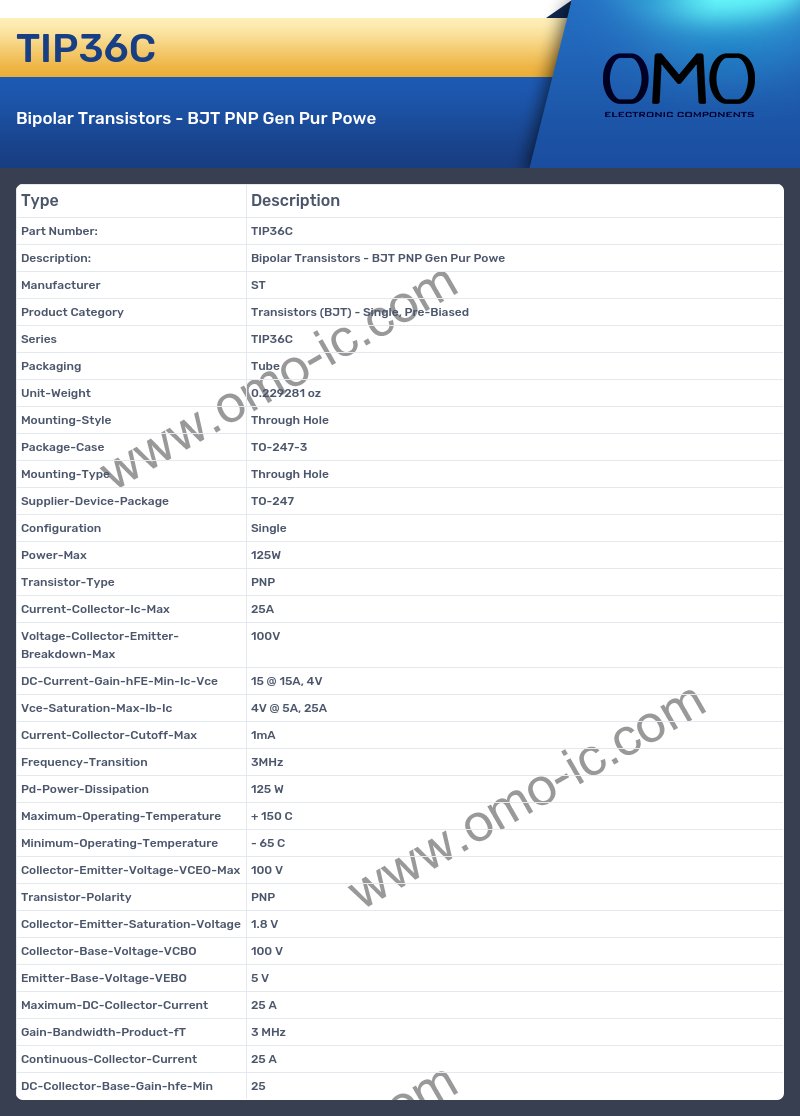

TIP36C Specifications
