| Mfr. #: | TIP121 |
|---|---|
| Fabricante: | STMicroelectronics |
| Descripción: | TRANS NPN DARL 80V 5A TO-220 |
| Ciclo vital: | Nuevo de este fabricante. |
| Ficha de datos: | TIP121 Ficha de datos |
Product belongs to the Darlingtons series. Tube is the packaging method for this product The TIP121_NL is listed as a Part-Aliase. Weight of 0.211644 oz Through Hole Mounting-Style TO-220-3 Through Hole mounting type Supplier device package: TO-220AB Configuration Single Transistor type: NPN - Darlington Maximum current collector Ic is 5A . Maximum collector-emitter breakdown voltage of 80V DC current gain minimum (hFE) of Ic/Vce at 1000 @ 3A, 3V. Product Attribute: Vce-Saturation-Max-Ib-Ic: 4V @ 20mA, 5A Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Rated VCEO up to 80 V The transistor polarity is NPN. The 80 V voltage rating is 40 V. 5 V rating of 5 V Max DC collector current: 5 A Minimum hfe for DC collector-base gain is 1000. 200 uA Maximum Collector Cut-off Current;
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

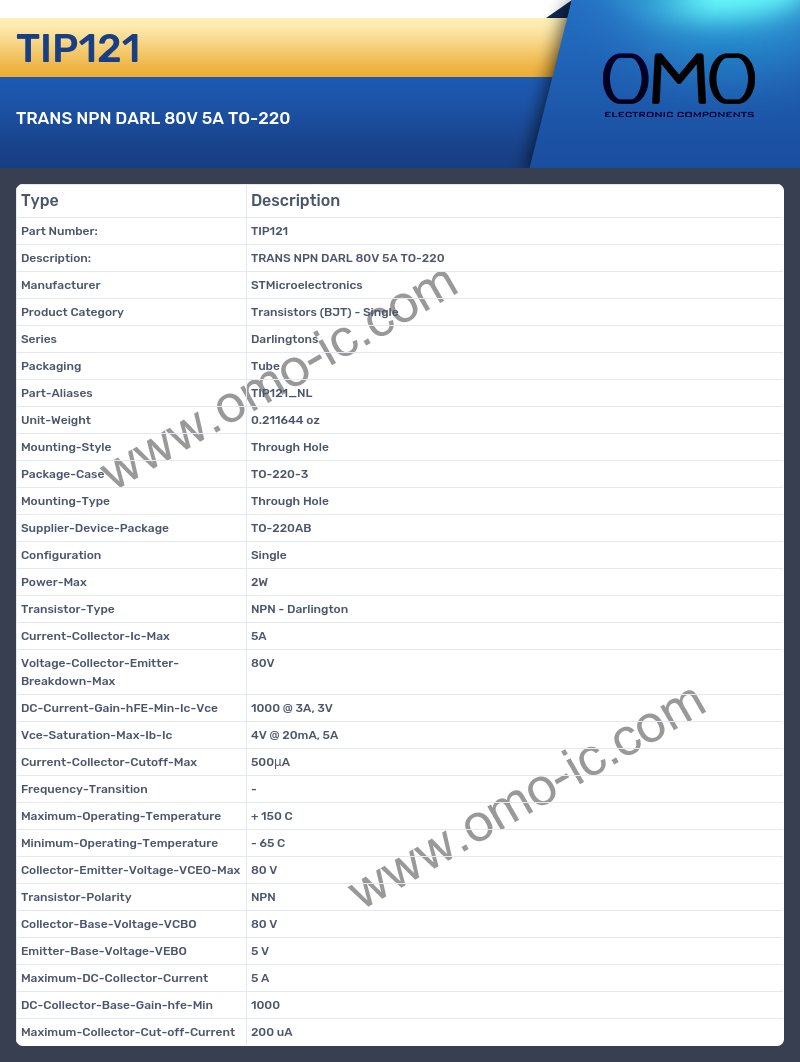

TIP121 Specifications
A: At what frequency does the Series?
Q: The product Series is Darlingtons.
A: What is the Packaging of the product?
Q: The Packaging of the product is Tube.
A: What is the Part-Aliases of the product?
Q: The Part-Aliases of the product is TIP121_NL.
A: Is the cutoff frequency of the product Unit-Weight?
Q: Yes, the product's Unit-Weight is indeed 0.211644 oz
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is Through Hole.
A: Is the cutoff frequency of the product Package-Case?
Q: Yes, the product's Package-Case is indeed TO-220-3
A: At what frequency does the Mounting-Type?
Q: The product Mounting-Type is Through Hole.
A: Is the cutoff frequency of the product Supplier-Device-Package?
Q: Yes, the product's Supplier-Device-Package is indeed TO-220AB
A: What is the Configuration of the product?
Q: The Configuration of the product is Single.
A: What is the Transistor-Type of the product?
Q: The Transistor-Type of the product is NPN - Darlington.
A: What is the Current-Collector-Ic-Max of the product?
Q: The Current-Collector-Ic-Max of the product is 5A.
A: What is the Voltage-Collector-Emitter-Breakdown-Max of the product?
Q: The Voltage-Collector-Emitter-Breakdown-Max of the product is 80V.
A: Is the cutoff frequency of the product DC-Current-Gain-hFE-Min-Ic-Vce?
Q: Yes, the product's DC-Current-Gain-hFE-Min-Ic-Vce is indeed 1000 @ 3A, 3V
A: Is the cutoff frequency of the product Vce-Saturation-Max-Ib-Ic?
Q: Yes, the product's Vce-Saturation-Max-Ib-Ic is indeed 4V @ 20mA, 5A
A: Is the cutoff frequency of the product Maximum-Operating-Temperature?
Q: Yes, the product's Maximum-Operating-Temperature is indeed + 150 C
A: What is the Minimum-Operating-Temperature of the product?
Q: The Minimum-Operating-Temperature of the product is - 65 C.
A: At what frequency does the Collector-Emitter-Voltage-VCEO-Max?
Q: The product Collector-Emitter-Voltage-VCEO-Max is 80 V.
A: Is the cutoff frequency of the product Transistor-Polarity?
Q: Yes, the product's Transistor-Polarity is indeed NPN
A: What is the Collector-Base-Voltage-VCBO of the product?
Q: The Collector-Base-Voltage-VCBO of the product is 80 V.
A: What is the Emitter-Base-Voltage-VEBO of the product?
Q: The Emitter-Base-Voltage-VEBO of the product is 5 V.
A: Is the cutoff frequency of the product Maximum-DC-Collector-Current?
Q: Yes, the product's Maximum-DC-Collector-Current is indeed 5 A
A: Is the cutoff frequency of the product DC-Collector-Base-Gain-hfe-Min?
Q: Yes, the product's DC-Collector-Base-Gain-hfe-Min is indeed 1000
A: What is the Maximum-Collector-Cut-off-Current of the product?
Q: The Maximum-Collector-Cut-off-Current of the product is 200 uA.
