THS1031IDW

THS1031IDW Overview

Product belongs to the THS1031 series. This product is categorized as Analog to Digital Converters Tube is the packaging method for this product Weight of 0.025778 oz SMD/SMT Mounting-Style SOIC-28 The Differential, Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 1 Channel Supplier device package: 28-SOIC This product's 30M. Data-Interface: Parallel 10 bits The Voltage-Supply-Analog is 3 V ~ 5.5 V. The Voltage Supply Digital for this product is 3 V ~ 5.5 V. Configuration S/H-PGA-ADC The architecture of this product is Pipelined . External, Internal is the reference type. 1 units Power-off control: 135 mW Maximum operating temperature of + 150 C Minimum operating temperature: 0 C Parallel interface type Signal-to-Noise Ratio of 56 dB The THS1031EVM. Number-of-Converters: 1 Converter 30 MS/s Sampling Rate Analog supply voltage: 3 V to 5.5 V Digital Supply Voltage: 3 V to 5.5 V Integral Nonlinearity: +/- 2 LSB Differential nonlinearity: +/- 1 LSB

THS1031IDW Image

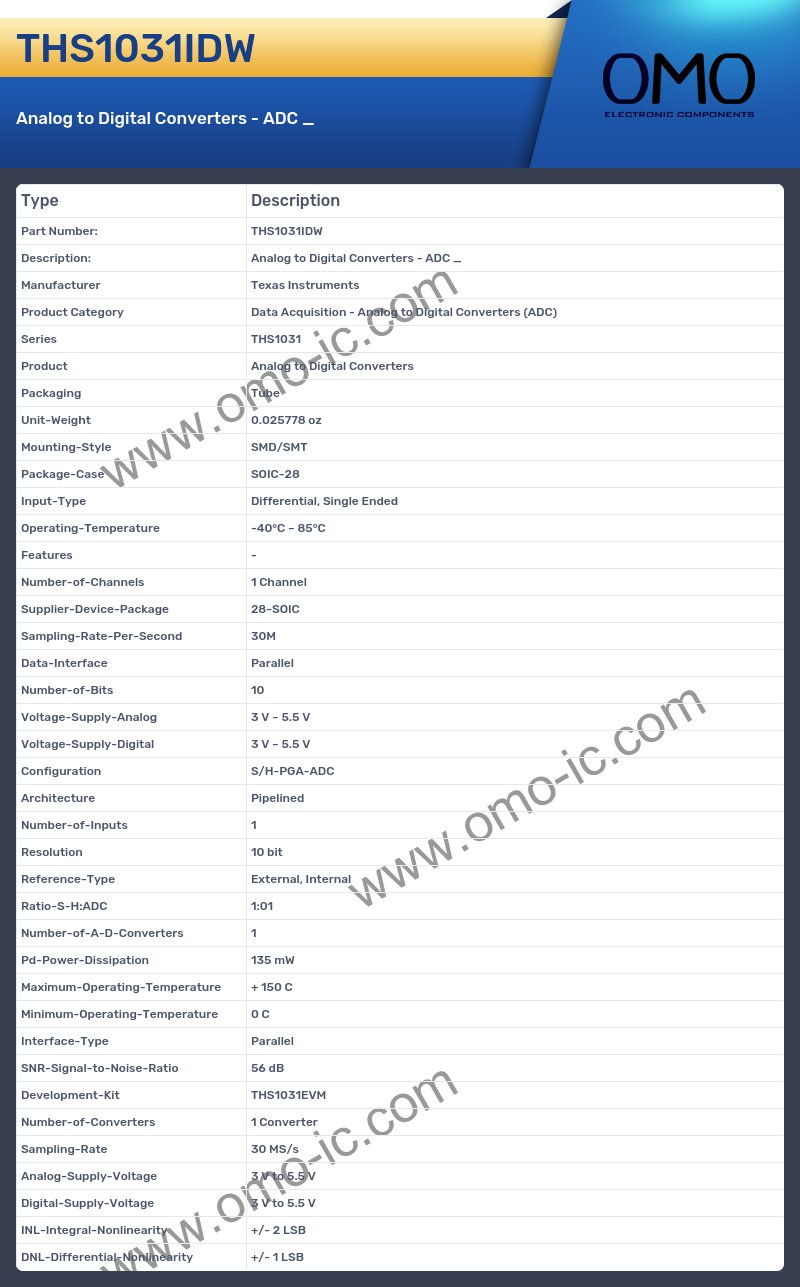

THS1031IDW Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series THS1031
• Product Analog to Digital Converters
• Packaging Tube
• Unit-Weight 0.025778 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-28
• Input-Type Differential, Single Ended
• Operating-Temperature -40°C ~ 85°C
• Features -
• Number-of-Channels 1 Channel
• Supplier-Device-Package 28-SOIC
• Sampling-Rate-Per-Second 30M
• Data-Interface Parallel
• Number-of-Bits 10
• Voltage-Supply-Analog 3 V ~ 5.5 V
• Voltage-Supply-Digital 3 V ~ 5.5 V
• Configuration S/H-PGA-ADC
• Architecture Pipelined
• Number-of-Inputs 1
• Resolution 10 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC 1:01
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 135 mW
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature 0 C
• Interface-Type Parallel
• SNR-Signal-to-Noise-Ratio 56 dB
• Development-Kit THS1031EVM
• Number-of-Converters 1 Converter
• Sampling-Rate 30 MS/s
• Analog-Supply-Voltage 3 V to 5.5 V
• Digital-Supply-Voltage 3 V to 5.5 V
• INL-Integral-Nonlinearity +/- 2 LSB
• DNL-Differential-Nonlinearity +/- 1 LSB
