STT4PF20V

STT4PF20V Overview

Product belongs to the STripFET II series. Cut Tape (CT) is the packaging method for this product Product Obsolete P-Channel FET Type MOSFET (Metal Oxide) is the technology used. Drain to Source Voltage (Vdss) is 20V Current - Continuous Drain (Id) at 25°C is given as 3A (Tc). This product's 2.7V, 4.5V is 1.8V, 4.5V. This product's 600mV @ 250A for optimal performance. The maximum 7.8nC @ 4.5V gate charge of this product ensures efficient switching performance. Vgs (Max): ±10V This product has a maximum 500pF @ 15V input capacitance at Vds for improved circuit performance. The maximum power dissipation is 1.6W (Tc). Rds On (Max) @ Id, Vgs is 110 mOhm @ 1.5A, 4.5V. Operating Temperature of 150°C (TJ) This product has a Surface Mount. The supplier device package for this product is SOT-23-6. Package type is SOT-23-6

STT4PF20V Image

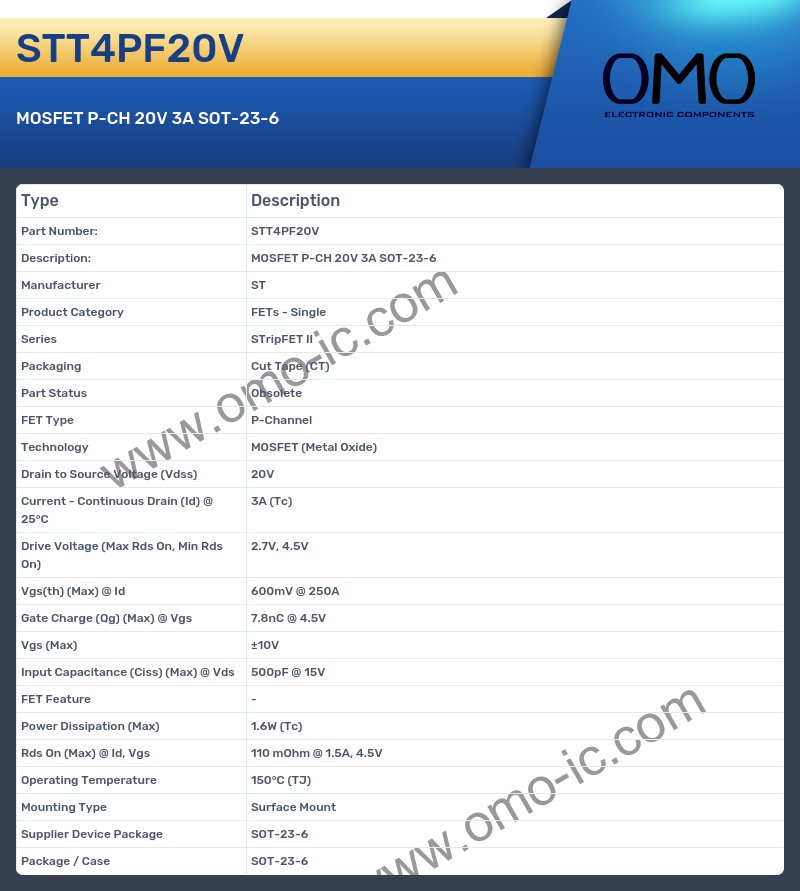

STT4PF20V Specifications

• Manufacturer ST
• Product Category FETs - Single
• Series STripFET II
• Packaging Cut Tape (CT)
• Part Status Obsolete
• FET Type P-Channel
• Technology MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss) 20V
• Current - Continuous Drain (Id) @ 25°C 3A (Tc)
• Drive Voltage (Max Rds On, Min Rds On) 2.7V, 4.5V
• Vgs(th) (Max) @ Id 600mV @ 250A
• Gate Charge (Qg) (Max) @ Vgs 7.8nC @ 4.5V
• Vgs (Max) ±10V
• Input Capacitance (Ciss) (Max) @ Vds 500pF @ 15V
• FET Feature -
• Power Dissipation (Max) 1.6W (Tc)
• Rds On (Max) @ Id, Vgs 110 mOhm @ 1.5A, 4.5V
• Operating Temperature 150°C (TJ)
• Mounting Type Surface Mount
• Supplier Device Package SOT-23-6
• Package / Case SOT-23-6
