| Mfr. #: | STS5PF30L |
|---|---|
| Fabricante: | STMicroelectronics |
| Descripción: | MOSFET P-CH 30V 5A 8-SOIC |
| Ciclo vital: | Nuevo de este fabricante. |
| Ficha de datos: | STS5PF30L Ficha de datos |
Product belongs to the STripFET series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.002998 oz SMD/SMT Mounting-Style 8-SOIC (0.154", 3.90mm Width) Si is the technology used. Operational temperature range: -55°C ~ 150°C (TJ) Surface Mount mounting type Number of channels: 1 Channel Supplier device package: 8-SO Configuration Single Quad Drain Triple Source This product uses an MOSFET P-Channel, Metal Oxide FET-Type transistor. Transistor type: 1 P-Channel 30V This product has an 1350pF @ 25V value of 300pF @ 25V. This product's Standard. 5A (Tc) continuous drain-ID current at 25°C; This product has an 55 mOhm @ 2.5A, 10V of 12 Ohm @ 150mA, 0V. Power-off control: 2.5 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product has a 35 ns of 16 ns. This product has a 35 ns of 16 ns. This product's 16 V. The ID of continuous drain current is 5 A. This product has a Vds-Drain-Source-Breakdown-Voltageof - 30 V. The 80 mOhms for this product is 12 Ohms. The transistor polarity is P-Channel. 'Typical-Turn-Off-Delay-Time' of 125 ns This product has a 25 ns. This product features a 13 S of 500 S for high performance. This product operates in Enhancement channel mode for optimal performance.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

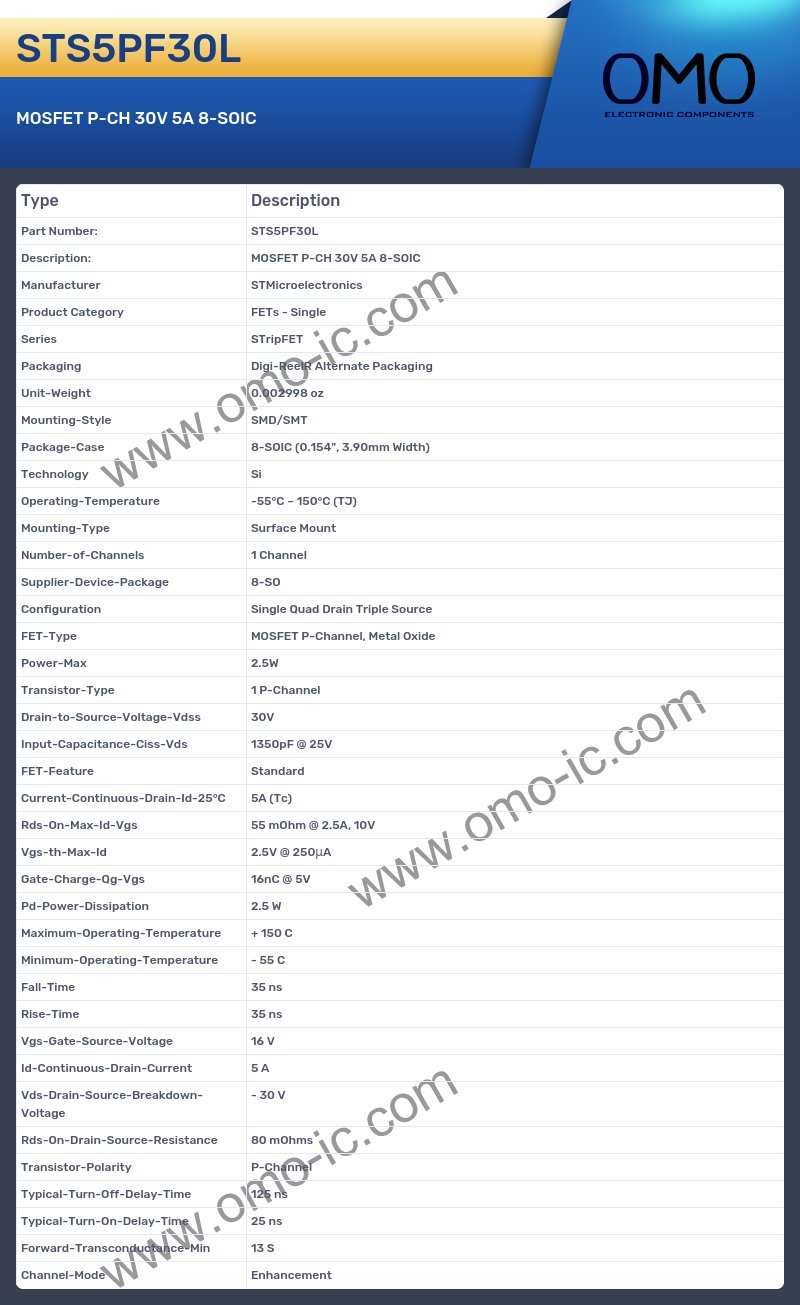

STS5PF30L Specifications
A: At what frequency does the Series?
Q: The product Series is STripFET.
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Digi-ReelR Alternate Packaging
A: Is the cutoff frequency of the product Unit-Weight?
Q: Yes, the product's Unit-Weight is indeed 0.002998 oz
A: At what frequency does the Mounting-Style?
Q: The product Mounting-Style is SMD/SMT.
A: What is the Package-Case of the product?
Q: The Package-Case of the product is 8-SOIC (0.154", 3.90mm Width).
A: At what frequency does the Technology?
Q: The product Technology is Si.
A: At what frequency does the Operating-Temperature?
Q: The product Operating-Temperature is -55°C ~ 150°C (TJ).
A: At what frequency does the Mounting-Type?
Q: The product Mounting-Type is Surface Mount.
A: At what frequency does the Number-of-Channels?
Q: The product Number-of-Channels is 1 Channel.
A: Is the cutoff frequency of the product Supplier-Device-Package?
Q: Yes, the product's Supplier-Device-Package is indeed 8-SO
A: At what frequency does the Configuration?
Q: The product Configuration is Single Quad Drain Triple Source.
A: Is the cutoff frequency of the product FET-Type?
Q: Yes, the product's FET-Type is indeed MOSFET P-Channel, Metal Oxide
A: What is the Transistor-Type of the product?
Q: The Transistor-Type of the product is 1 P-Channel.
A: At what frequency does the Drain-to-Source-Voltage-Vdss?
Q: The product Drain-to-Source-Voltage-Vdss is 30V.
A: What is the Input-Capacitance-Ciss-Vds of the product?
Q: The Input-Capacitance-Ciss-Vds of the product is 1350pF @ 25V.
A: What is the FET-Feature of the product?
Q: The FET-Feature of the product is Standard.
A: At what frequency does the Current-Continuous-Drain-Id-25°C?
Q: The product Current-Continuous-Drain-Id-25°C is 5A (Tc).
A: What is the Rds-On-Max-Id-Vgs of the product?
Q: The Rds-On-Max-Id-Vgs of the product is 55 mOhm @ 2.5A, 10V.
A: Is the cutoff frequency of the product Pd-Power-Dissipation?
Q: Yes, the product's Pd-Power-Dissipation is indeed 2.5 W
A: Is the cutoff frequency of the product Maximum-Operating-Temperature?
Q: Yes, the product's Maximum-Operating-Temperature is indeed + 150 C
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed - 55 C
A: At what frequency does the Fall-Time?
Q: The product Fall-Time is 35 ns.
A: Is the cutoff frequency of the product Rise-Time?
Q: Yes, the product's Rise-Time is indeed 35 ns
A: What is the Vgs-Gate-Source-Voltage of the product?
Q: The Vgs-Gate-Source-Voltage of the product is 16 V.
A: Is the cutoff frequency of the product Id-Continuous-Drain-Current?
Q: Yes, the product's Id-Continuous-Drain-Current is indeed 5 A
A: What is the Vds-Drain-Source-Breakdown-Voltage of the product?
Q: The Vds-Drain-Source-Breakdown-Voltage of the product is - 30 V.
A: At what frequency does the Rds-On-Drain-Source-Resistance?
Q: The product Rds-On-Drain-Source-Resistance is 80 mOhms.
A: Is the cutoff frequency of the product Transistor-Polarity?
Q: Yes, the product's Transistor-Polarity is indeed P-Channel
A: What is the Typical-Turn-Off-Delay-Time of the product?
Q: The Typical-Turn-Off-Delay-Time of the product is 125 ns.
A: What is the Typical-Turn-On-Delay-Time of the product?
Q: The Typical-Turn-On-Delay-Time of the product is 25 ns.
A: What is the Forward-Transconductance-Min of the product?
Q: The Forward-Transconductance-Min of the product is 13 S.
A: What is the Channel-Mode of the product?
Q: The Channel-Mode of the product is Enhancement.
