STQ1NC45R-AP

STQ1NC45R-AP Overview

Weight of 0.007760 oz Through Hole Mounting-Style TO-92-3 Si is the technology used. Number of channels: 1 Channel Configuration Single Transistor type: 1 N-Channel Power-off control: 3.1 W Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C This product has a 12 ns of 16 ns. This product has a 4 ns of 16 ns. This product's 30 V. The ID of continuous drain current is 500 mA. This product has a Vds-Drain-Source-Breakdown-Voltageof 450 V. The 4.5 Ohms for this product is 12 Ohms. The transistor polarity is N-Channel. This product has a 6.7 ns. This product operates in Enhancement channel mode for optimal performance.

STQ1NC45R-AP Image

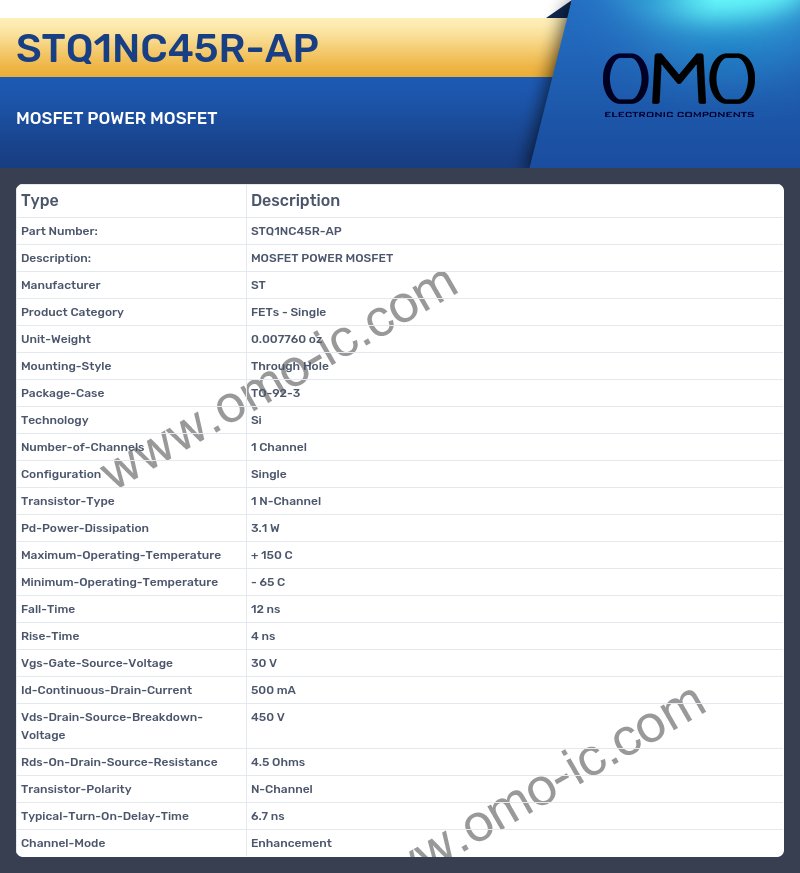

STQ1NC45R-AP Specifications

• Manufacturer ST
• Product Category FETs - Single
• Unit-Weight 0.007760 oz
• Mounting-Style Through Hole
• Package-Case TO-92-3
• Technology Si
• Number-of-Channels 1 Channel
• Configuration Single
• Transistor-Type 1 N-Channel
• Pd-Power-Dissipation 3.1 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 65 C
• Fall-Time 12 ns
• Rise-Time 4 ns
• Vgs-Gate-Source-Voltage 30 V
• Id-Continuous-Drain-Current 500 mA
• Vds-Drain-Source-Breakdown-Voltage 450 V
• Rds-On-Drain-Source-Resistance 4.5 Ohms
• Transistor-Polarity N-Channel
• Typical-Turn-On-Delay-Time 6.7 ns
• Channel-Mode Enhancement
