STPS20SM60D

STPS20SM60D Overview

Product belongs to the STPS20SM60 series. This product is categorized as Schottky Rectifiers Tube is the packaging method for this product Weight of 0.081130 oz Through Hole Mounting-Style TO-220-2 Si is the technology used. Through Hole mounting type Supplier device package: TO-220AC Operating frequency: Fast Recovery = 200mA (Io) Schottky diode type The 85μA @ 60V Current-Reverse-Leakage-Vr 1. Vf Max 630mV @ 20A is the Voltage-Forward; Maximum DC reverse voltage 60V The 20A Current-Average-Rectified-Io; The capacitance value of this product is - for maximum efficiency. Operating-Temperature-Junction: 150°C (Max) Power-off control: - Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Vf-Forward-Voltage: 630 mV VR Reverse Voltage of 60 V Ir-Reverse-Current is 85 uA. If-Forward-Current is 20 A. VRRM (60 V) Reverse Voltage 400 A IFSM Forward Surge Current The - TRR-Reverse-Recovery-time

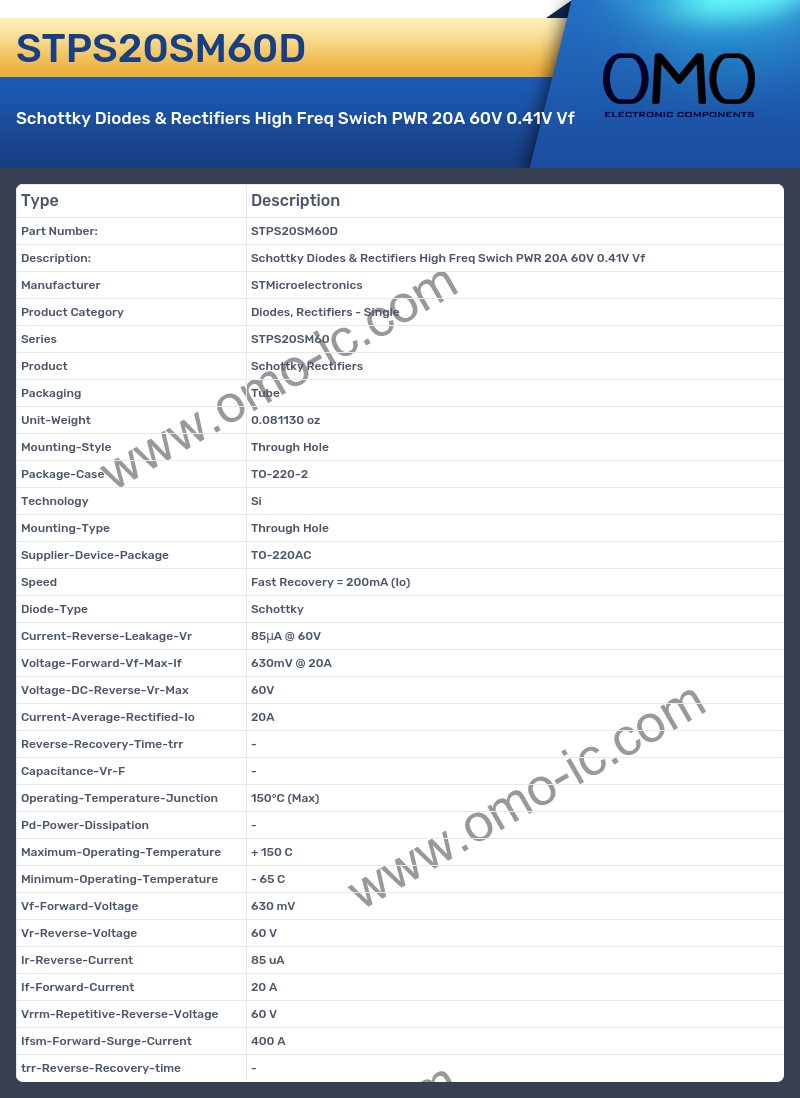

STPS20SM60D Image

STPS20SM60D Specifications

• Manufacturer STMicroelectronics
• Product Category Diodes, Rectifiers - Single
• Series STPS20SM60
• Product Schottky Rectifiers
• Packaging Tube
• Unit-Weight 0.081130 oz
• Mounting-Style Through Hole
• Package-Case TO-220-2
• Technology Si
• Mounting-Type Through Hole
• Supplier-Device-Package TO-220AC
• Speed Fast Recovery = 200mA (Io)
• Diode-Type Schottky
• Current-Reverse-Leakage-Vr 85μA @ 60V
• Voltage-Forward-Vf-Max-If 630mV @ 20A
• Voltage-DC-Reverse-Vr-Max 60V
• Current-Average-Rectified-Io 20A
• Reverse-Recovery-Time-trr -
• Capacitance-Vr-F -
• Operating-Temperature-Junction 150°C (Max)
• Pd-Power-Dissipation -
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 65 C
• Vf-Forward-Voltage 630 mV
• Vr-Reverse-Voltage 60 V
• Ir-Reverse-Current 85 uA
• If-Forward-Current 20 A
• Vrrm-Repetitive-Reverse-Voltage 60 V
• Ifsm-Forward-Surge-Current 400 A
• trr-Reverse-Recovery-time -
