STPS1045B

STPS1045B Overview

Product belongs to the STPS1045B series. This product is categorized as Schottky Rectifiers Tube is the packaging method for this product Weight of 0.009185 oz SMD/SMT Mounting-Style TO-252-3, DPak (2 Leads + Tab), SC-63 Si is the technology used. Surface Mount mounting type Supplier device package: D-Pak Configuration Single Dual Anode Operating frequency: Fast Recovery = 200mA (Io) Schottky diode type The 200μA @ 45V Current-Reverse-Leakage-Vr 1. Vf Max 630mV @ 10A is the Voltage-Forward; Maximum DC reverse voltage 45V The 10A Current-Average-Rectified-Io; The capacitance value of this product is 760pF @ 5V, 1MHz for maximum efficiency. Operating-Temperature-Junction: -40°C ~ 175°C Maximum operating temperature of + 175 C Minimum operating temperature: - 65 C Vf-Forward-Voltage: 0.84 V at 20 A Ir-Reverse-Current is 100 uA. If-Forward-Current is 10 A. VRRM (45 V) Reverse Voltage 75 A IFSM Forward Surge Current

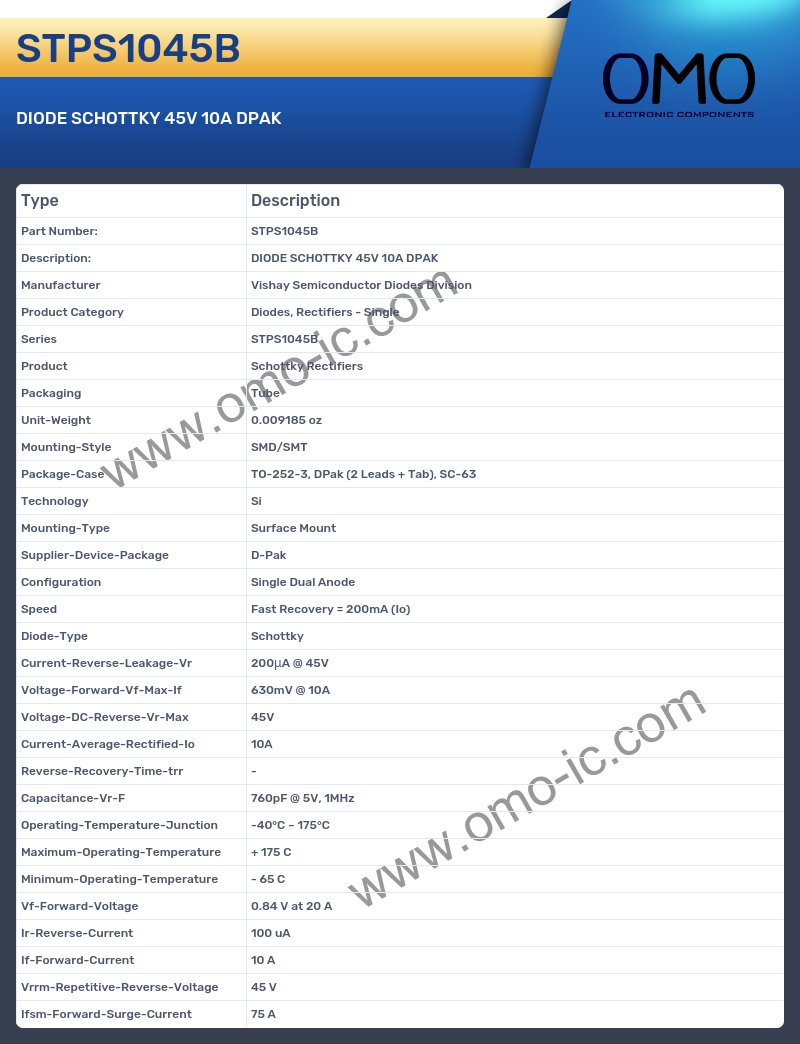

STPS1045B Image

STPS1045B Specifications

• Manufacturer Vishay Semiconductor Diodes Division
• Product Category Diodes, Rectifiers - Single
• Series STPS1045B
• Product Schottky Rectifiers
• Packaging Tube
• Unit-Weight 0.009185 oz
• Mounting-Style SMD/SMT
• Package-Case TO-252-3, DPak (2 Leads + Tab), SC-63
• Technology Si
• Mounting-Type Surface Mount
• Supplier-Device-Package D-Pak
• Configuration Single Dual Anode
• Speed Fast Recovery = 200mA (Io)
• Diode-Type Schottky
• Current-Reverse-Leakage-Vr 200μA @ 45V
• Voltage-Forward-Vf-Max-If 630mV @ 10A
• Voltage-DC-Reverse-Vr-Max 45V
• Current-Average-Rectified-Io 10A
• Reverse-Recovery-Time-trr -
• Capacitance-Vr-F 760pF @ 5V, 1MHz
• Operating-Temperature-Junction -40°C ~ 175°C
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 65 C
• Vf-Forward-Voltage 0.84 V at 20 A
• Ir-Reverse-Current 100 uA
• If-Forward-Current 10 A
• Vrrm-Repetitive-Reverse-Voltage 45 V
• Ifsm-Forward-Surge-Current 75 A
