STP80N6F6

STP80N6F6 Overview

Product belongs to the N-channel STripFET series. Tube is the packaging method for this product Weight of 0.011640 oz Through Hole Mounting-Style TO-220-3 Si is the technology used. Number of channels: 1 Channel Configuration Single Transistor type: 1 N-Channel Power-off control: 150 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C This product's 20 V. The ID of continuous drain current is 110 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 60 V. This product has a 4.5 V Vgs-th gate-source threshold voltage for efficient power management. The 5.8 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. Qg-Gate-Charge is 122 nC.

STP80N6F6 Image

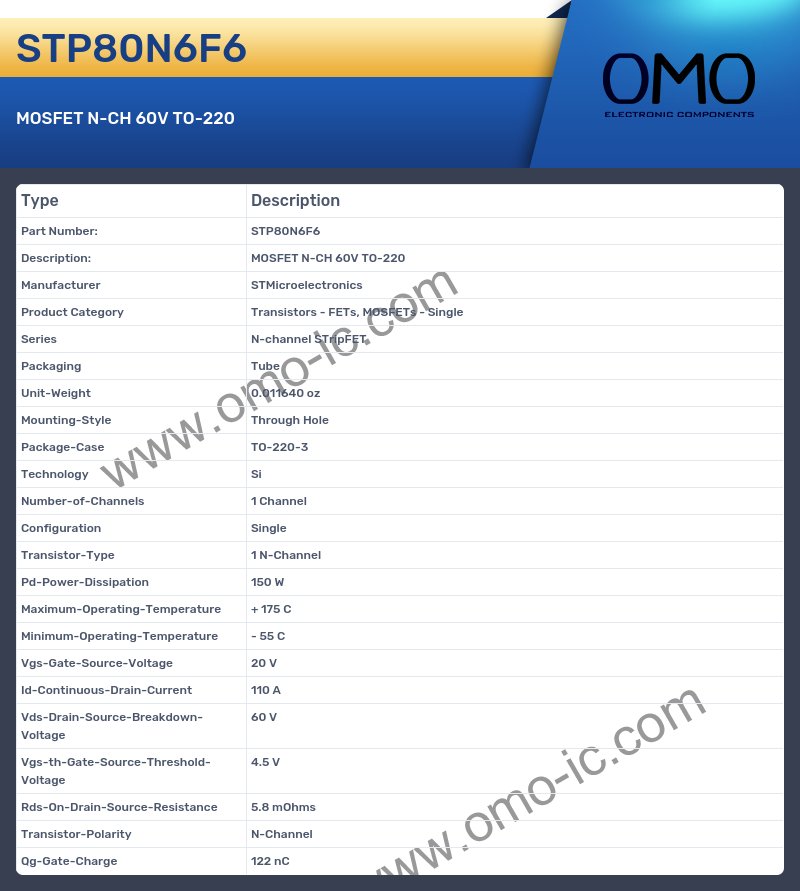

STP80N6F6 Specifications

• Manufacturer STMicroelectronics
• Product Category Transistors - FETs, MOSFETs - Single
• Series N-channel STripFET
• Packaging Tube
• Unit-Weight 0.011640 oz
• Mounting-Style Through Hole
• Package-Case TO-220-3
• Technology Si
• Number-of-Channels 1 Channel
• Configuration Single
• Transistor-Type 1 N-Channel
• Pd-Power-Dissipation 150 W
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 55 C
• Vgs-Gate-Source-Voltage 20 V
• Id-Continuous-Drain-Current 110 A
• Vds-Drain-Source-Breakdown-Voltage 60 V
• Vgs-th-Gate-Source-Threshold-Voltage 4.5 V
• Rds-On-Drain-Source-Resistance 5.8 mOhms
• Transistor-Polarity N-Channel
• Qg-Gate-Charge 122 nC
