| Mfr. #: | STP70NF03L |
|---|---|
| Fabricante: | STMicroelectronics |
| Descripción: | MOSFET N-Ch 30 Volt 70 Amp |
| Ciclo vital: | Nuevo de este fabricante. |
| Ficha de datos: | STP70NF03L Ficha de datos |
Product belongs to the N-channel STripFET series. Tube is the packaging method for this product Weight of 0.050717 oz Through Hole Mounting-Style TO-220-3 Si is the technology used. Number of channels: 1 Channel Configuration Single Transistor type: 1 N-Channel Power-off control: 100 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C This product has a 25 ns of 16 ns. This product has a 165 ns of 16 ns. This product's 18 V. The ID of continuous drain current is 70 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 30 V. The 7.5 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 21 ns This product has a 22 ns. This product features a 25 S of 500 S for high performance. This product operates in Enhancement channel mode for optimal performance.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

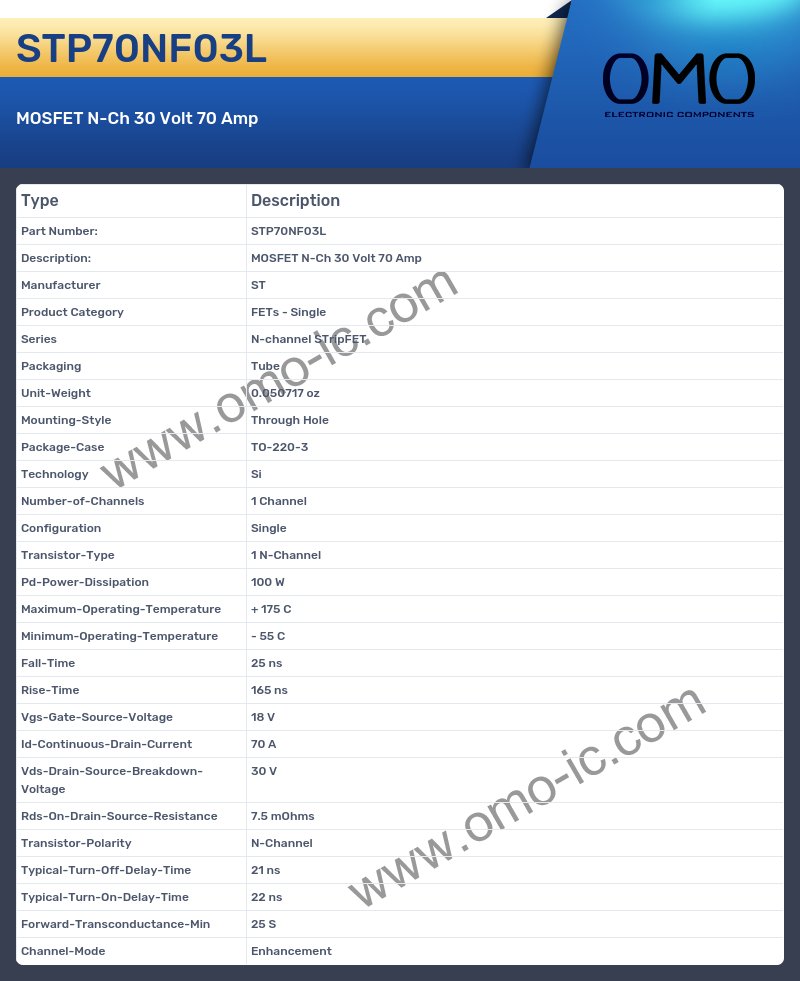

STP70NF03L Specifications
