STP3NB100

STP3NB100 Overview

Product belongs to the PowerMESH series. Tube is the packaging method for this product Product Obsolete N-Channel FET Type MOSFET (Metal Oxide) is the technology used. Drain to Source Voltage (Vdss) is 1000V Current - Continuous Drain (Id) at 25°C is given as 3A (Tc). This product's 10V is 1.8V, 4.5V. This product's 4V @ 250A for optimal performance. The maximum 30nC @ 10V gate charge of this product ensures efficient switching performance. Vgs (Max): ±30V This product has a maximum 700pF @ 25V input capacitance at Vds for improved circuit performance. The maximum power dissipation is 100W (Tc). Rds On (Max) @ Id, Vgs is 6 Ohm @ 1.5A, 10V. Operating Temperature of 150°C (TJ) This product has a Through Hole. The supplier device package for this product is TO-220AB. Package type is TO-220-3

STP3NB100 Image

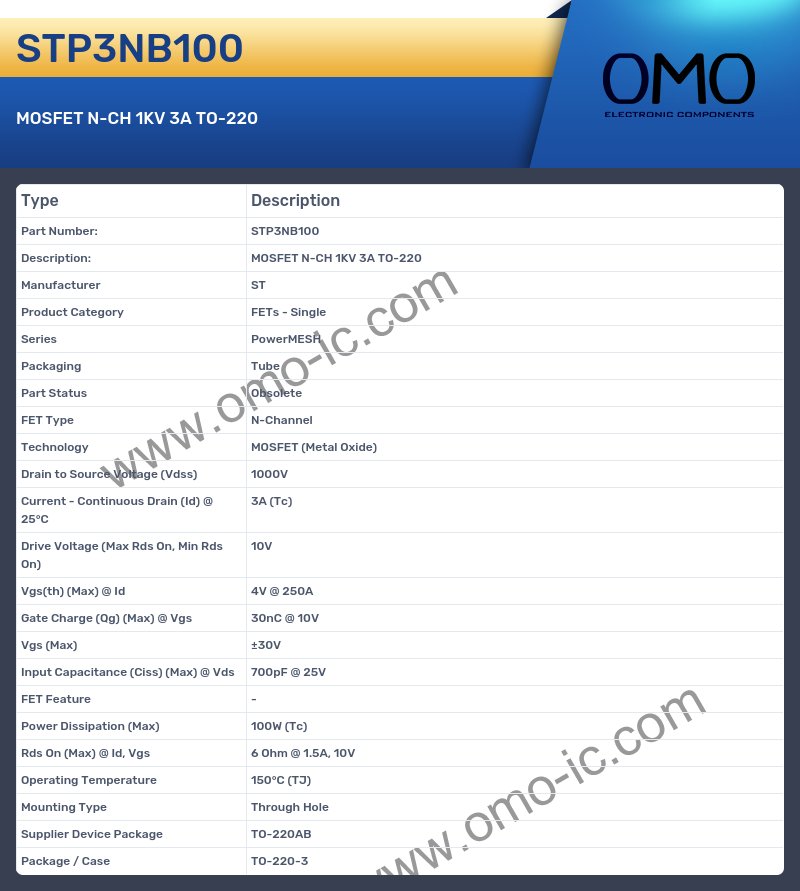

STP3NB100 Specifications

• Manufacturer ST
• Product Category FETs - Single
• Series PowerMESH
• Packaging Tube
• Part Status Obsolete
• FET Type N-Channel
• Technology MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss) 1000V
• Current - Continuous Drain (Id) @ 25°C 3A (Tc)
• Drive Voltage (Max Rds On, Min Rds On) 10V
• Vgs(th) (Max) @ Id 4V @ 250A
• Gate Charge (Qg) (Max) @ Vgs 30nC @ 10V
• Vgs (Max) ±30V
• Input Capacitance (Ciss) (Max) @ Vds 700pF @ 25V
• FET Feature -
• Power Dissipation (Max) 100W (Tc)
• Rds On (Max) @ Id, Vgs 6 Ohm @ 1.5A, 10V
• Operating Temperature 150°C (TJ)
• Mounting Type Through Hole
• Supplier Device Package TO-220AB
• Package / Case TO-220-3
