| Mfr. #: | STP160N3LL |
|---|---|
| Fabricante: | STMicroelectronics |
| Descripción: | MOSFET N-CH 30V 120A TO-220AB |
| Ciclo vital: | Nuevo de este fabricante. |
| Ficha de datos: | STP160N3LL Ficha de datos |
RoHS compliant with Details Input bias current of Through Hole Package type is TO-220-3 Single 1 Channel for basic signal processing The transistor polarity is N-Channel. 30 V is the Vds - Drain-Source Breakdown Voltage Continuous Drain Current identified as 120 A; The Rds On - Drain-Source Resistance of the product is 3.2 mOhms. The Vgs - Gate-Source Voltage attribute for this product is +/- 20 V. The 1 V to 2.5 V Gate-Source Threshold Voltage of Vgs th; 42 nC Gate Charge of Qg; Maximum Operating Temperature: + 175 C Si is the technology used. Enhancement Channel Mode Fall Time of 23.4 ns - 55 C minimum operating temperature The power dissipation is 136 W. 91 ns Rise Time Product belongs to the N-channel STripFET series. 1 N-Channel Transistor Type Typical Turn-Off Delay Time of 24.5 ns; The 19 ns typical turn-on delay time The Unit Weight is 0.011640 oz.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

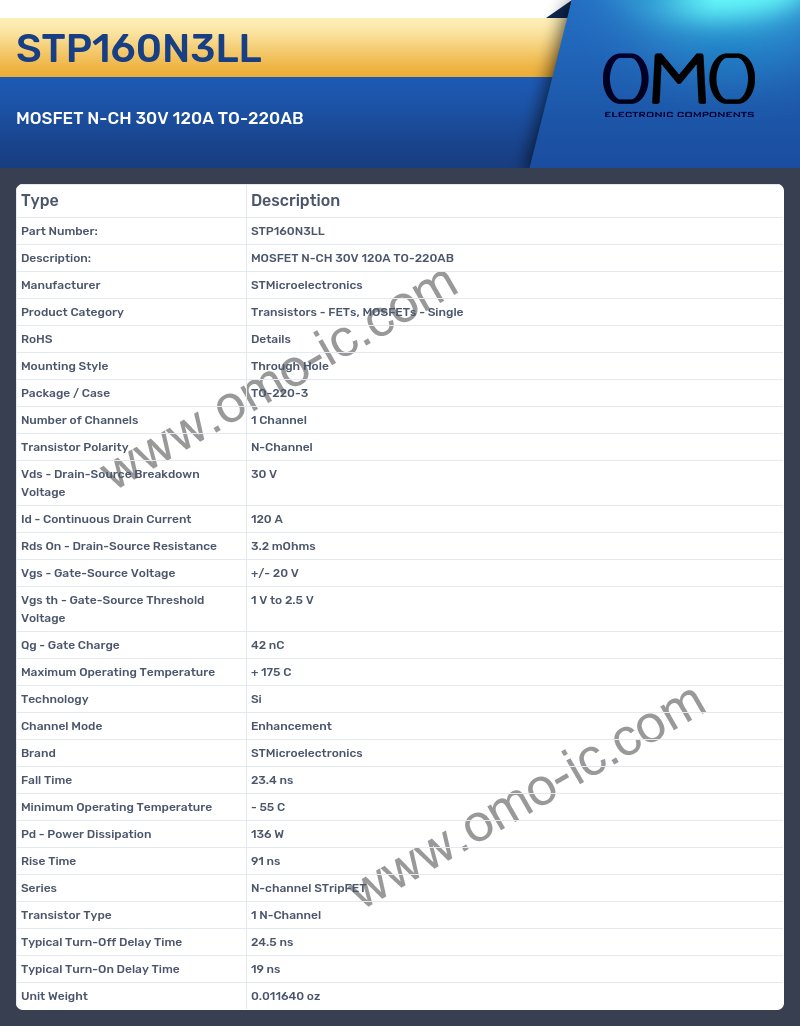

STP160N3LL Specifications
