| Mfr. #: | STN851 |
|---|---|
| Fabricante: | STMicroelectronics |
| Descripción: | Bipolar Transistors - BJT NPN Lo-Volt Fast Sw |
| Ciclo vital: | Nuevo de este fabricante. |
| Ficha de datos: | STN851 Ficha de datos |
Product belongs to the 500V Transistors series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.006632 oz SMD/SMT Mounting-Style TO-261-4, TO-261AA Surface Mount mounting type Supplier device package: SOT-223 Configuration Single Transistor type: NPN Maximum current collector Ic is 5A . Maximum collector-emitter breakdown voltage of 60V DC current gain minimum (hFE) of Ic/Vce at 150 @ 2A, 1V. Product Attribute: Vce-Saturation-Max-Ib-Ic: 500mV @ 200mA, 5A Power-off control: 1.6 W Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Rated VCEO up to 60 V The transistor polarity is NPN. Saturation voltage between collector and emitter is 320 mV The 150 V voltage rating is 40 V. 7 V rating of 5 V Max DC collector current: 5 A Gain-Bandwidth-Product: 130 MHz Minimum hfe for DC collector-base gain is 150. 350 of 605.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

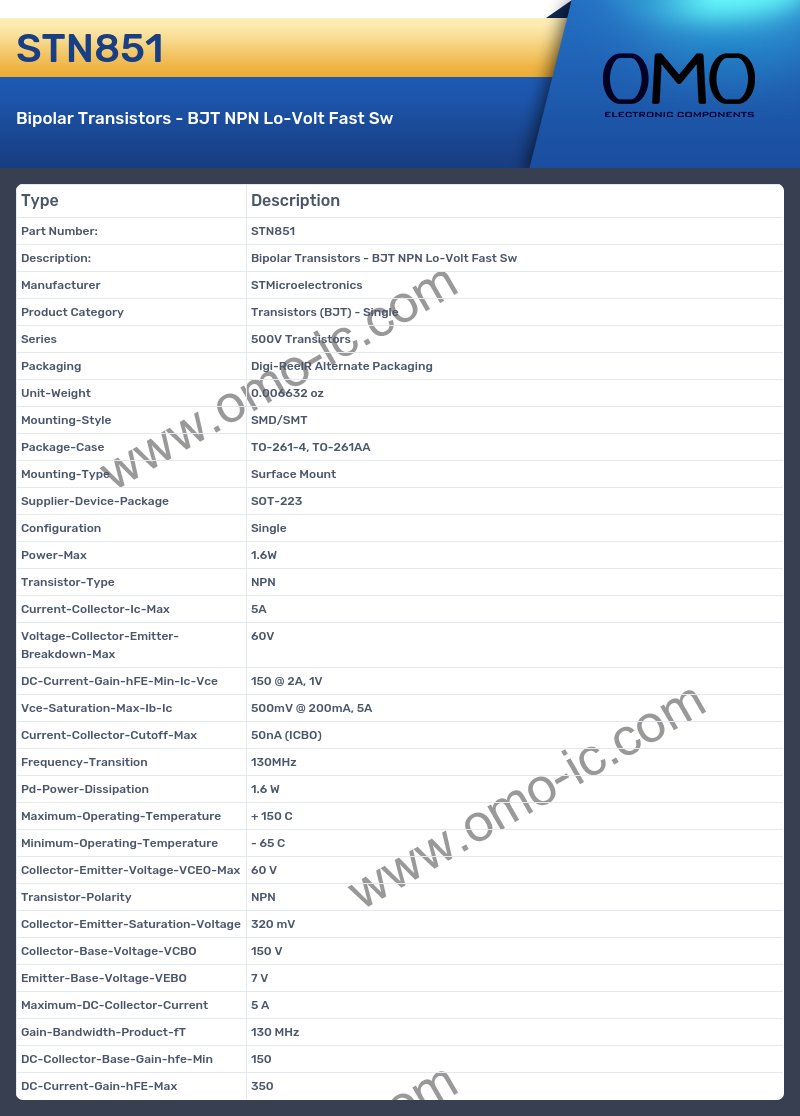

STN851 Specifications
A: Is the cutoff frequency of the product Series?
Q: Yes, the product's Series is indeed 500V Transistors
A: At what frequency does the Packaging?
Q: The product Packaging is Digi-ReelR Alternate Packaging.
A: At what frequency does the Unit-Weight?
Q: The product Unit-Weight is 0.006632 oz.
A: At what frequency does the Mounting-Style?
Q: The product Mounting-Style is SMD/SMT.
A: What is the Package-Case of the product?
Q: The Package-Case of the product is TO-261-4, TO-261AA.
A: Is the cutoff frequency of the product Mounting-Type?
Q: Yes, the product's Mounting-Type is indeed Surface Mount
A: What is the Supplier-Device-Package of the product?
Q: The Supplier-Device-Package of the product is SOT-223.
A: At what frequency does the Configuration?
Q: The product Configuration is Single.
A: Is the cutoff frequency of the product Transistor-Type?
Q: Yes, the product's Transistor-Type is indeed NPN
A: What is the Current-Collector-Ic-Max of the product?
Q: The Current-Collector-Ic-Max of the product is 5A.
A: What is the Voltage-Collector-Emitter-Breakdown-Max of the product?
Q: The Voltage-Collector-Emitter-Breakdown-Max of the product is 60V.
A: At what frequency does the DC-Current-Gain-hFE-Min-Ic-Vce?
Q: The product DC-Current-Gain-hFE-Min-Ic-Vce is 150 @ 2A, 1V.
A: Is the cutoff frequency of the product Vce-Saturation-Max-Ib-Ic?
Q: Yes, the product's Vce-Saturation-Max-Ib-Ic is indeed 500mV @ 200mA, 5A
A: What is the Pd-Power-Dissipation of the product?
Q: The Pd-Power-Dissipation of the product is 1.6 W.
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 150 C.
A: At what frequency does the Minimum-Operating-Temperature?
Q: The product Minimum-Operating-Temperature is - 65 C.
A: Is the cutoff frequency of the product Collector-Emitter-Voltage-VCEO-Max?
Q: Yes, the product's Collector-Emitter-Voltage-VCEO-Max is indeed 60 V
A: What is the Transistor-Polarity of the product?
Q: The Transistor-Polarity of the product is NPN.
A: At what frequency does the Collector-Emitter-Saturation-Voltage?
Q: The product Collector-Emitter-Saturation-Voltage is 320 mV.
A: At what frequency does the Collector-Base-Voltage-VCBO?
Q: The product Collector-Base-Voltage-VCBO is 150 V.
A: Is the cutoff frequency of the product Emitter-Base-Voltage-VEBO?
Q: Yes, the product's Emitter-Base-Voltage-VEBO is indeed 7 V
A: At what frequency does the Maximum-DC-Collector-Current?
Q: The product Maximum-DC-Collector-Current is 5 A.
A: At what frequency does the Gain-Bandwidth-Product-fT?
Q: The product Gain-Bandwidth-Product-fT is 130 MHz.
A: At what frequency does the DC-Collector-Base-Gain-hfe-Min?
Q: The product DC-Collector-Base-Gain-hfe-Min is 150.
A: What is the DC-Current-Gain-hFE-Max of the product?
Q: The DC-Current-Gain-hFE-Max of the product is 350.
