STM804TM6F

STM804TM6F Overview

Product belongs to the STM804TM series. Type: Simple Reset/Power-On Reset Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.017870 oz SMD/SMT Mounting-Style SO-8 Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Active High Supplier device package: 8-SOIC The Open Drain or Open Collector. This product's Active High. This product has 1 monitored voltages. The reset timeout for this product is 140 ms Minimum. This product's 3.075V. Power-off control: 320 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 60 uA is 92 nA. This product does not have Backup capability. Maximum supply voltage of 5.5 V Minimum supply voltage is 1 V This product includes Watchdog This product's 1 V to 5.5 V is 2.32 V. This product can only 1 Input at a time. This product features a No Manual Reset function that allows for manual reset. This product does not support No Chip Enable. This product does not have Yes capability. The product's 280 ms is 200 ms. The 3.12 V is 2.35 V. 3 V is set to 2.29 V.

STM804TM6F Image

STM804TM6F Specifications

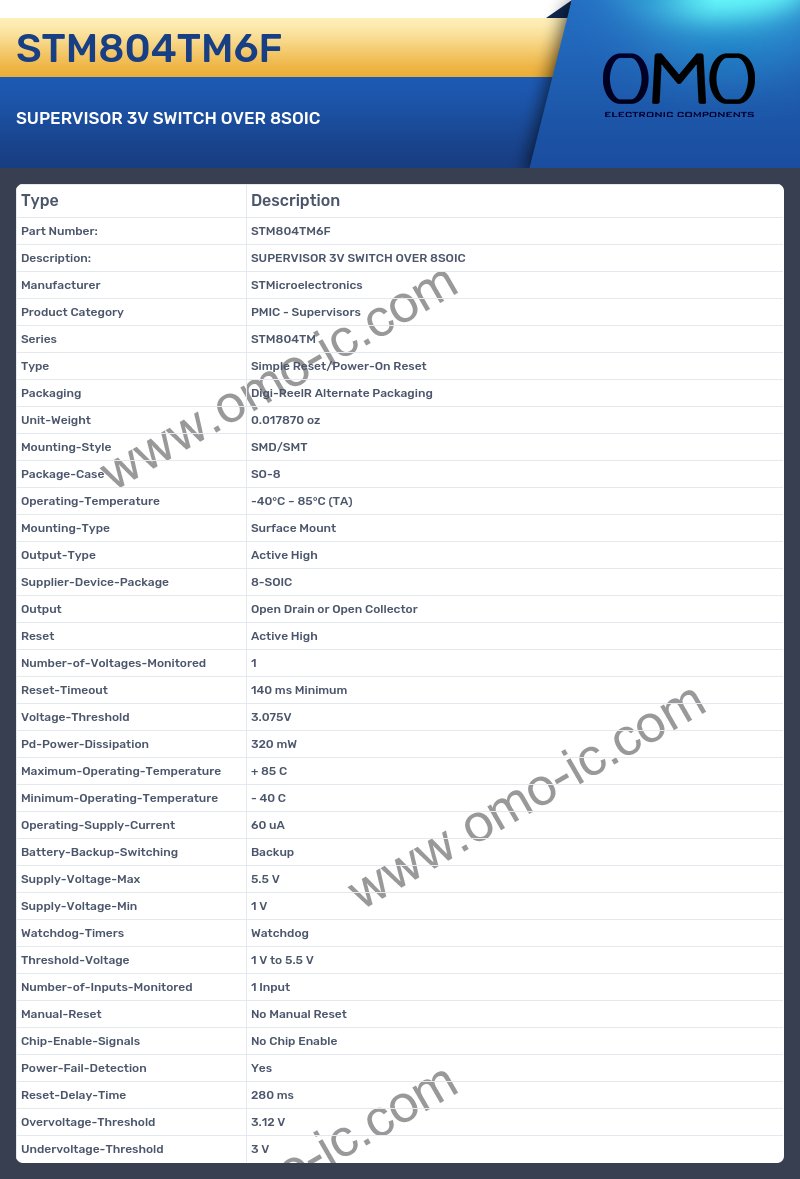

• Manufacturer STMicroelectronics
• Product Category PMIC - Supervisors
• Series STM804TM
• Type Simple Reset/Power-On Reset
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.017870 oz
• Mounting-Style SMD/SMT
• Package-Case SO-8
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Active High
• Supplier-Device-Package 8-SOIC
• Output Open Drain or Open Collector
• Reset Active High
• Number-of-Voltages-Monitored 1
• Reset-Timeout 140 ms Minimum
• Voltage-Threshold 3.075V
• Pd-Power-Dissipation 320 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 60 uA
• Battery-Backup-Switching Backup
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 1 V
• Watchdog-Timers Watchdog
• Threshold-Voltage 1 V to 5.5 V
• Number-of-Inputs-Monitored 1 Input
• Manual-Reset No Manual Reset
• Chip-Enable-Signals No Chip Enable
• Power-Fail-Detection Yes
• Reset-Delay-Time 280 ms
• Overvoltage-Threshold 3.12 V
• Undervoltage-Threshold 3 V
