STM6777SVWB6F

STM6777SVWB6F Overview

Product belongs to the STM6777 series. Type: Multi-Voltage Supervisor Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.001270 oz SMD/SMT Mounting-Style SOT-23-6 Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Active Low Open Drain Supplier device package: SOT-23-6 The Open Drain or Open Collector. This product's Active Low. This product has 2 monitored voltages. The reset timeout for this product is 140 ms Minimum. This product's 1.575V, 2.925V. Power-off control: 675 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 35 uA is 92 nA. This product does not have No Backup capability. Maximum supply voltage of 5.5 V Minimum supply voltage is 0.8 V This product includes No Watchdog This product's 0.8 V to 5.5 V is 2.32 V. This product can only 2 Input at a time. This product features a Manual Reset function that allows for manual reset. This product does not support No Chip Enable. This product does not have No capability. The product's 280 ms is 200 ms. The 3 V 1.62 V is 2.35 V. 2.85 V 1.53 V is set to 2.29 V.

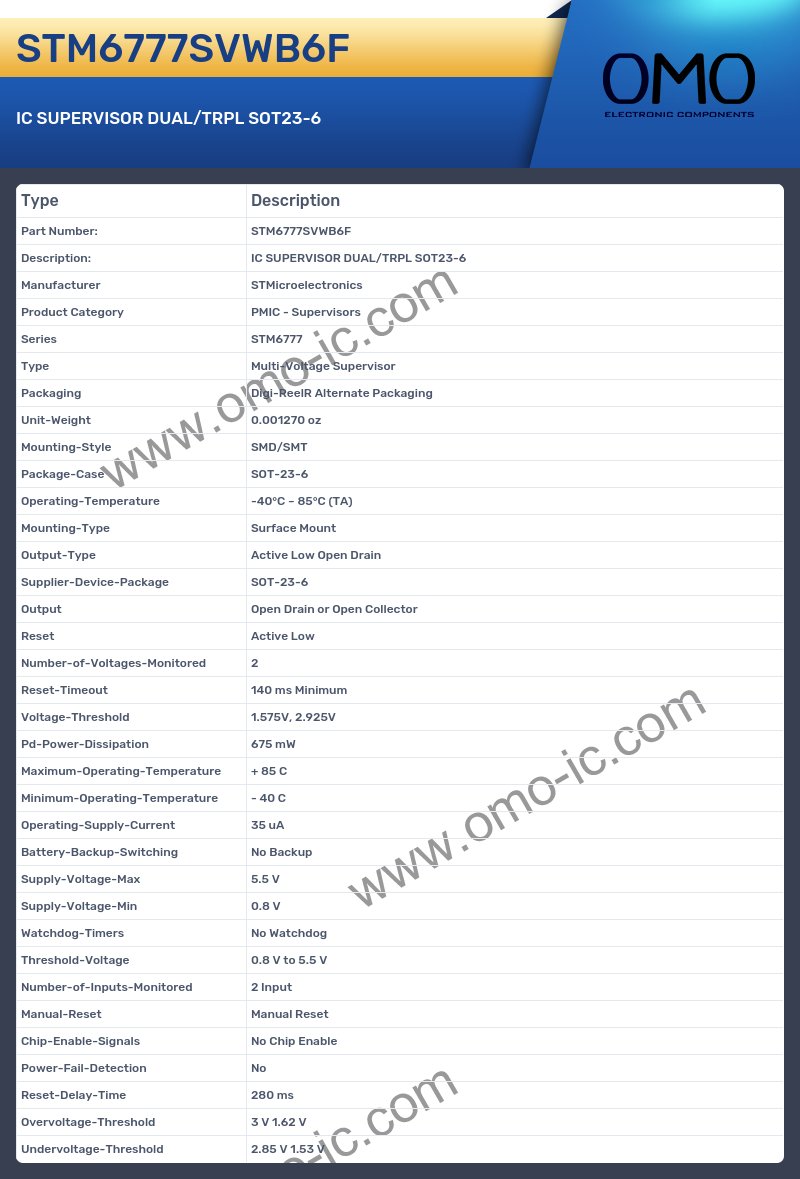

STM6777SVWB6F Image

STM6777SVWB6F Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Supervisors
• Series STM6777
• Type Multi-Voltage Supervisor
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.001270 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-23-6
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Active Low Open Drain
• Supplier-Device-Package SOT-23-6
• Output Open Drain or Open Collector
• Reset Active Low
• Number-of-Voltages-Monitored 2
• Reset-Timeout 140 ms Minimum
• Voltage-Threshold 1.575V, 2.925V
• Pd-Power-Dissipation 675 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 35 uA
• Battery-Backup-Switching No Backup
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 0.8 V
• Watchdog-Timers No Watchdog
• Threshold-Voltage 0.8 V to 5.5 V
• Number-of-Inputs-Monitored 2 Input
• Manual-Reset Manual Reset
• Chip-Enable-Signals No Chip Enable
• Power-Fail-Detection No
• Reset-Delay-Time 280 ms
• Overvoltage-Threshold 3 V 1.62 V
• Undervoltage-Threshold 2.85 V 1.53 V
