| Mfr. #: | STL7DN6LF3 |
|---|---|
| Fabricante: | STMicroelectronics |
| Descripción: | IGBT Transistors MOSFET Dual N-Ch 60V 35mOhm 6.5A STripFET III |
| Ciclo vital: | Nuevo de este fabricante. |
| Ficha de datos: | STL7DN6LF3 Ficha de datos |
Product belongs to the STripFET III series. Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style 8-PowerVDFN Si is the technology used. Operational temperature range: -55°C ~ 175°C (TJ) Surface Mount mounting type Number of channels: 2 Channel Supplier device package: PowerFlat (5x6) Configuration Dual This product uses an 2 N-Channel (Dual) FET-Type transistor. Transistor type: 2 N-Channel 60V This product has an 432pF @ 25V value of 300pF @ 25V. This product's Logic Level Gate. 20A continuous drain-ID current at 25°C; This product has an 43 mOhm @ 3A, 10V of 12 Ohm @ 150mA, 0V. Power-off control: 52 W The ID of continuous drain current is 20 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 60 V. The 43 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. This product operates in Enhancement channel mode for optimal performance.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

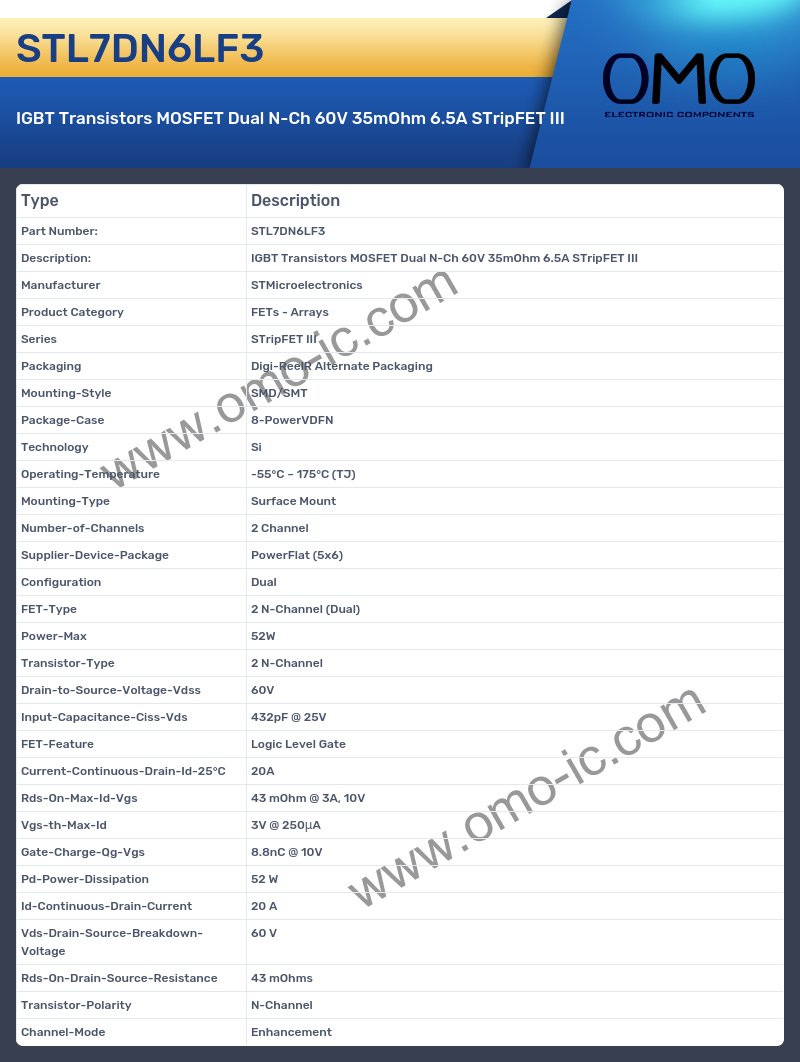

STL7DN6LF3 Specifications
