STL4P3LLH6

STL4P3LLH6 Overview

Product belongs to the DeepGATE, STripFET H6 series. Digi-ReelR Alternate Packaging is the packaging method for this product 6-PowerWDFN Si is the technology used. Operational temperature range: 150°C (TJ) Surface Mount mounting type Supplier device package: PowerFlat (2x2) This product uses an MOSFET P-Channel, Metal Oxide FET-Type transistor. 30V This product has an 639pF @ 25V value of 300pF @ 25V. This product's Standard. 4A (Ta) continuous drain-ID current at 25°C; This product has an 56 mOhm @ 2A, 10V of 12 Ohm @ 150mA, 0V.

STL4P3LLH6 Image

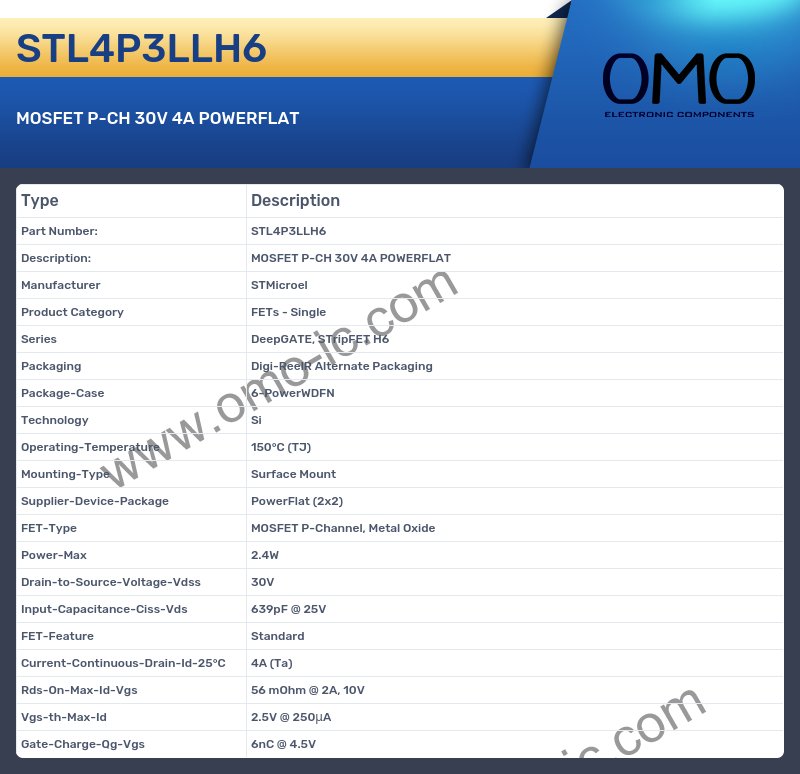

STL4P3LLH6 Specifications

• Manufacturer STMicroel
• Product Category FETs - Single
• Series DeepGATE, STripFET H6
• Packaging Digi-ReelR Alternate Packaging
• Package-Case 6-PowerWDFN
• Technology Si
• Operating-Temperature 150°C (TJ)
• Mounting-Type Surface Mount
• Supplier-Device-Package PowerFlat (2x2)
• FET-Type MOSFET P-Channel, Metal Oxide
• Power-Max 2.4W
• Drain-to-Source-Voltage-Vdss 30V
• Input-Capacitance-Ciss-Vds 639pF @ 25V
• FET-Feature Standard
• Current-Continuous-Drain-Id-25°C 4A (Ta)
• Rds-On-Max-Id-Vgs 56 mOhm @ 2A, 10V
• Vgs-th-Max-Id 2.5V @ 250μA
• Gate-Charge-Qg-Vgs 6nC @ 4.5V
