STL2N80K5

STL2N80K5 Overview

Product belongs to the MDmesh K5 series. Reel is the packaging method for this product SMD/SMT Mounting-Style PowerFlat-8 Si is the technology used. Number of channels: 1 Channel Configuration Triple Common Source Transistor type: 1 N-Channel Power-off control: 30 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product's + /- 30 V. The ID of continuous drain current is 2 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 800 V. This product has a 4 V Vgs-th gate-source threshold voltage for efficient power management. The 3.7 Ohms for this product is 12 Ohms. The transistor polarity is N-Channel. Qg-Gate-Charge is 3 nC.

STL2N80K5 Image

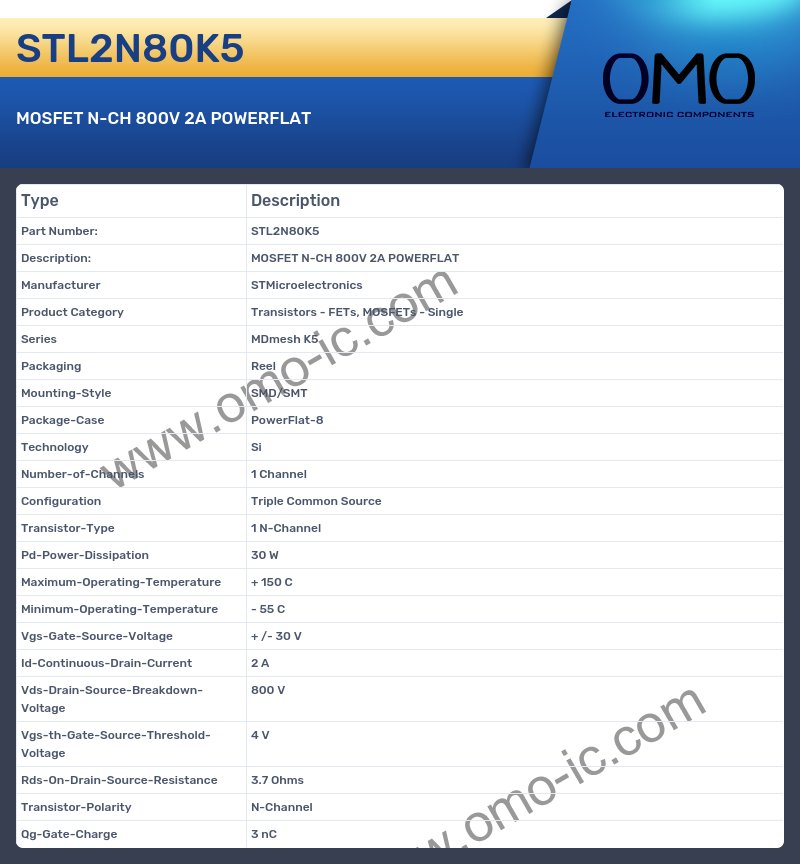

STL2N80K5 Specifications

• Manufacturer STMicroelectronics
• Product Category Transistors - FETs, MOSFETs - Single
• Series MDmesh K5
• Packaging Reel
• Mounting-Style SMD/SMT
• Package-Case PowerFlat-8
• Technology Si
• Number-of-Channels 1 Channel
• Configuration Triple Common Source
• Transistor-Type 1 N-Channel
• Pd-Power-Dissipation 30 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Vgs-Gate-Source-Voltage + /- 30 V
• Id-Continuous-Drain-Current 2 A
• Vds-Drain-Source-Breakdown-Voltage 800 V
• Vgs-th-Gate-Source-Threshold-Voltage 4 V
• Rds-On-Drain-Source-Resistance 3.7 Ohms
• Transistor-Polarity N-Channel
• Qg-Gate-Charge 3 nC
