| Mfr. #: | STGWT80H65FB |
|---|---|
| Fabricante: | STMicroelectronics |
| Descripción: | IGBT Transistors IGBT & Power Bipola |
| Ciclo vital: | Nuevo de este fabricante. |
| Ficha de datos: | STGWT80H65FB Ficha de datos |
Product belongs to the 600-650V IGBTs series. Tube is the packaging method for this product Weight of 0.238311 oz Through Hole Mounting-Style TO-3P-3, SC-65-3 The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-3P Configuration Single Maximum current collector Ic is 120A . Maximum collector-emitter breakdown voltage of 650V The Current-Collector-Pulsed-Icm is rated at 240A. The Vce-on-Max-Vge-Ic is rated at 2V @ 15V, 80A. 84ns/280ns Td-on-off at 25°C; Operating temperature: 400V, 80A, 10 Ohm, 15V Power-off control: 469 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C Rated VCEO up to 650 V Saturation voltage between collector and emitter is 1.6 V 120 A Continuous Collector Current at 25°C Maximum-Gate-Emitter-Voltage: 20 V Maximal 80 A Collector Current of Continuity;
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

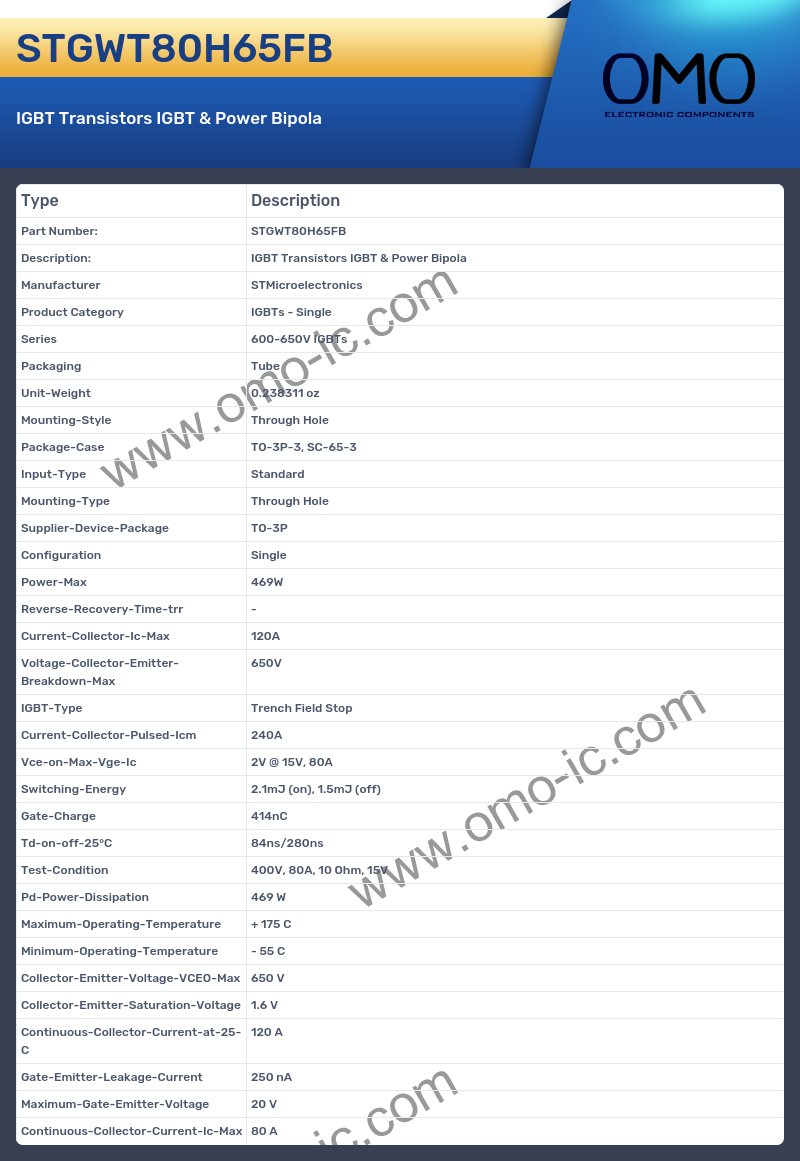

STGWT80H65FB Specifications
