| Mfr. #: | STGWT20V60F |
|---|---|
| Fabricante: | STMicroelectronics |
| Descripción: | IGBT Transistors 600V 20A Hi Spd TrenchGate FieldStop |
| Ciclo vital: | Nuevo de este fabricante. |
| Ficha de datos: | STGWT20V60F Ficha de datos |
Product belongs to the 600-650V IGBTs series. Tube is the packaging method for this product Weight of 0.245577 oz Through Hole Mounting-Style TO-3P-3, SC-65-3 The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-3P Configuration Single Maximum current collector Ic is 40A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at 80A. The Vce-on-Max-Vge-Ic is rated at 2.2V @ 15V, 20A. 38ns/149ns Td-on-off at 25°C; Operating temperature: 400V, 20A, 15V Power-off control: 167 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C Rated VCEO up to 600 V Saturation voltage between collector and emitter is 2.3 V 40 A Continuous Collector Current at 25°C Maximum-Gate-Emitter-Voltage: 20 V Maximal 20 A Collector Current of Continuity;
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

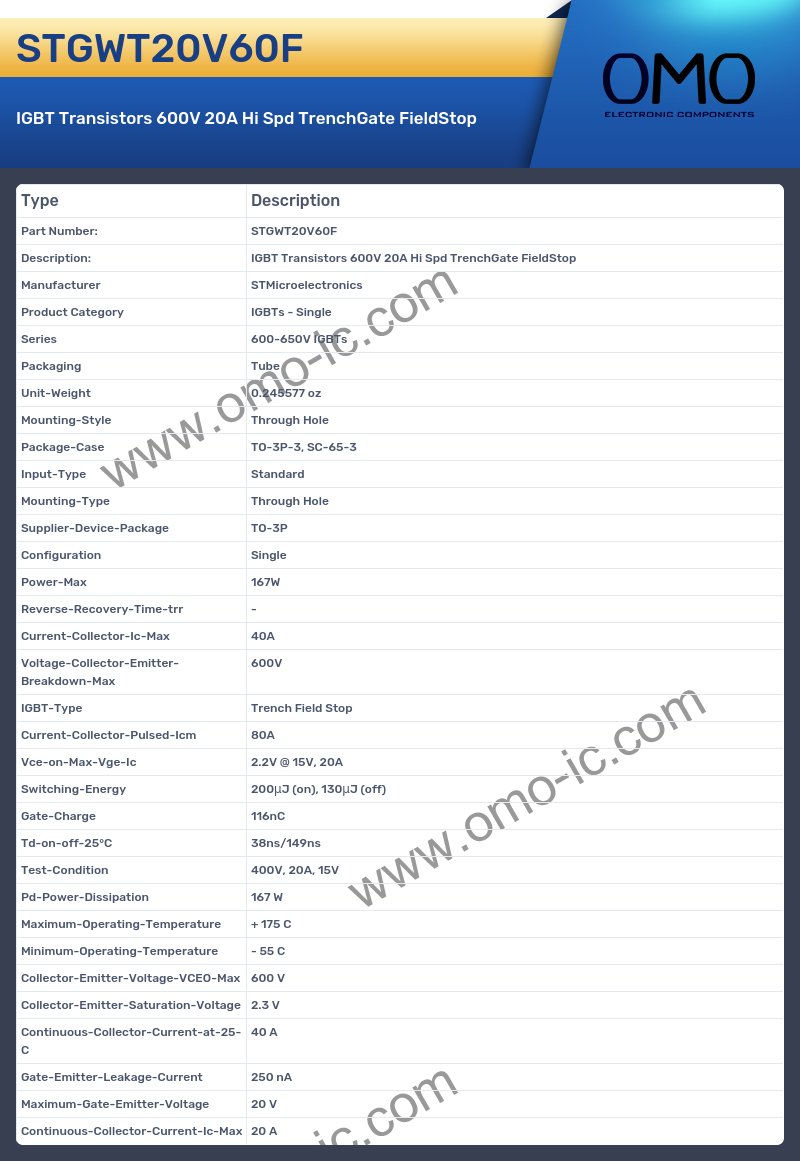

STGWT20V60F Specifications
A: At what frequency does the Series?
Q: The product Series is 600-650V IGBTs.
A: What is the Packaging of the product?
Q: The Packaging of the product is Tube.
A: What is the Unit-Weight of the product?
Q: The Unit-Weight of the product is 0.245577 oz.
A: Is the cutoff frequency of the product Mounting-Style?
Q: Yes, the product's Mounting-Style is indeed Through Hole
A: What is the Package-Case of the product?
Q: The Package-Case of the product is TO-3P-3, SC-65-3.
A: At what frequency does the Input-Type?
Q: The product Input-Type is Standard.
A: Is the cutoff frequency of the product Mounting-Type?
Q: Yes, the product's Mounting-Type is indeed Through Hole
A: Is the cutoff frequency of the product Supplier-Device-Package?
Q: Yes, the product's Supplier-Device-Package is indeed TO-3P
A: Is the cutoff frequency of the product Configuration?
Q: Yes, the product's Configuration is indeed Single
A: Is the cutoff frequency of the product Current-Collector-Ic-Max?
Q: Yes, the product's Current-Collector-Ic-Max is indeed 40A
A: What is the Voltage-Collector-Emitter-Breakdown-Max of the product?
Q: The Voltage-Collector-Emitter-Breakdown-Max of the product is 600V.
A: Is the cutoff frequency of the product Current-Collector-Pulsed-Icm?
Q: Yes, the product's Current-Collector-Pulsed-Icm is indeed 80A
A: Is the cutoff frequency of the product Vce-on-Max-Vge-Ic?
Q: Yes, the product's Vce-on-Max-Vge-Ic is indeed 2.2V @ 15V, 20A
A: Is the cutoff frequency of the product Td-on-off-25°C?
Q: Yes, the product's Td-on-off-25°C is indeed 38ns/149ns
A: What is the Test-Condition of the product?
Q: The Test-Condition of the product is 400V, 20A, 15V.
A: Is the cutoff frequency of the product Pd-Power-Dissipation?
Q: Yes, the product's Pd-Power-Dissipation is indeed 167 W
A: Is the cutoff frequency of the product Maximum-Operating-Temperature?
Q: Yes, the product's Maximum-Operating-Temperature is indeed + 175 C
A: What is the Minimum-Operating-Temperature of the product?
Q: The Minimum-Operating-Temperature of the product is - 55 C.
A: What is the Collector-Emitter-Voltage-VCEO-Max of the product?
Q: The Collector-Emitter-Voltage-VCEO-Max of the product is 600 V.
A: At what frequency does the Collector-Emitter-Saturation-Voltage?
Q: The product Collector-Emitter-Saturation-Voltage is 2.3 V.
A: What is the Continuous-Collector-Current-at-25-C of the product?
Q: The Continuous-Collector-Current-at-25-C of the product is 40 A.
A: What is the Maximum-Gate-Emitter-Voltage of the product?
Q: The Maximum-Gate-Emitter-Voltage of the product is 20 V.
A: Is the cutoff frequency of the product Continuous-Collector-Current-Ic-Max?
Q: Yes, the product's Continuous-Collector-Current-Ic-Max is indeed 20 A
