| Mfr. #: | STGWT20IH125DF |
|---|---|
| Fabricante: | STMicroelectronics |
| Descripción: | IGBT Transistors 1250V 20A trench gte field-stop IGBT |
| Ciclo vital: | Nuevo de este fabricante. |
| Ficha de datos: | STGWT20IH125DF Ficha de datos |
Product belongs to the 900-1300V IGBTs series. Tube is the packaging method for this product Weight of 0.238311 oz Through Hole Mounting-Style TO-3P-3, SC-65-3 The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-3P Configuration Single Maximum current collector Ic is 40A . Maximum collector-emitter breakdown voltage of 1250V The Current-Collector-Pulsed-Icm is rated at 80A. The Vce-on-Max-Vge-Ic is rated at 2.5V @ 15V, 15A. -/106ns Td-on-off at 25°C; Operating temperature: 600V, 15A, 10 Ohm, 15V Power-off control: 259 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C Rated VCEO up to 1.25 kV Saturation voltage between collector and emitter is 2.55 V 40 A Continuous Collector Current at 25°C Maximum-Gate-Emitter-Voltage: 20 V Maximal 20 A Collector Current of Continuity;
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

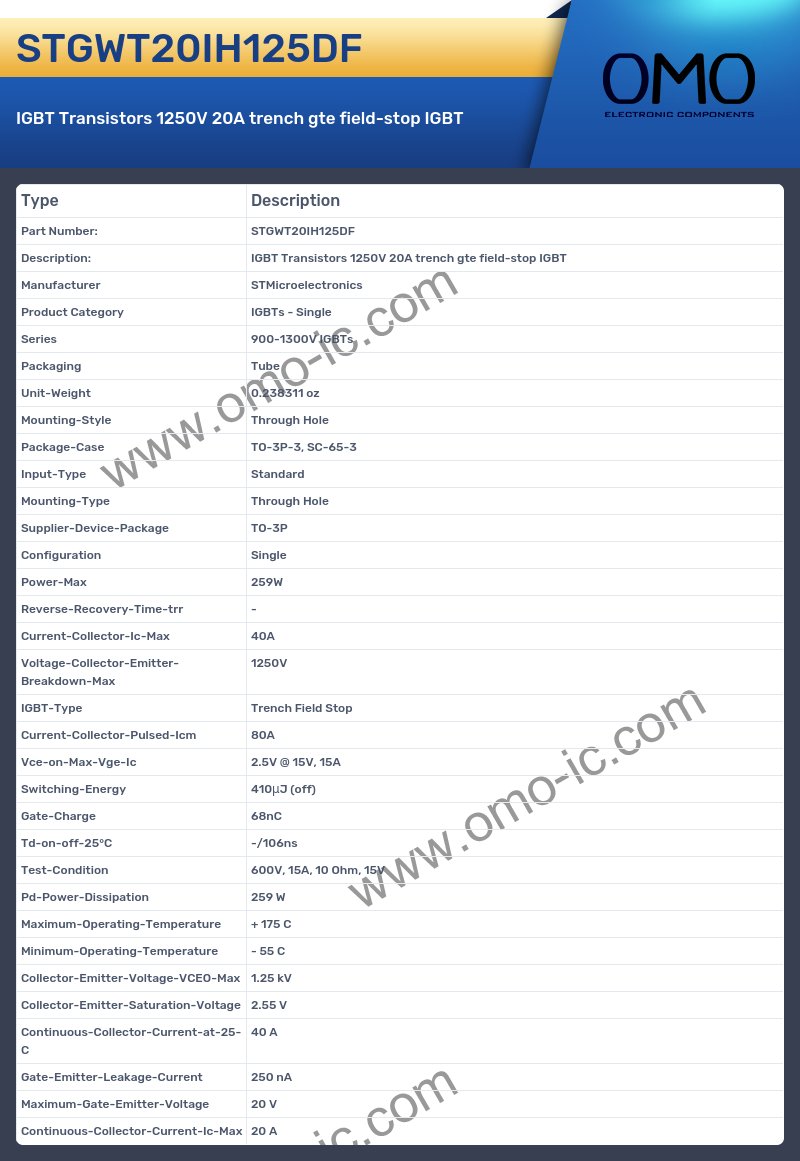

STGWT20IH125DF Specifications
