STGW80H65FB-4

STGW80H65FB-4 Overview

Product belongs to the - series. Tube is the packaging method for this product TO-247-3 The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-247 Maximum current collector Ic is 120A . Maximum collector-emitter breakdown voltage of 650V The Current-Collector-Pulsed-Icm is rated at 240A. The Vce-on-Max-Vge-Ic is rated at 2V @ 15V, 80A. 84ns/280ns Td-on-off at 25°C; Operating temperature: 400V, 80A, 10 Ohm, 15V

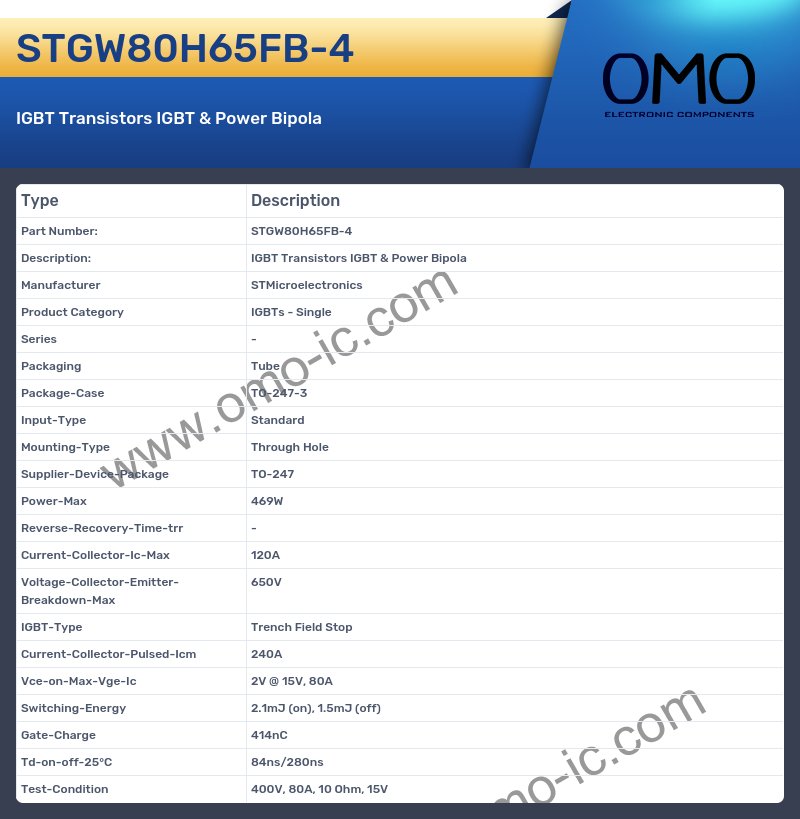

STGW80H65FB-4 Image

STGW80H65FB-4 Specifications

• Manufacturer STMicroelectronics
• Product Category IGBTs - Single
• Series -
• Packaging Tube
• Package-Case TO-247-3
• Input-Type Standard
• Mounting-Type Through Hole
• Supplier-Device-Package TO-247
• Power-Max 469W
• Reverse-Recovery-Time-trr -
• Current-Collector-Ic-Max 120A
• Voltage-Collector-Emitter-Breakdown-Max 650V
• IGBT-Type Trench Field Stop
• Current-Collector-Pulsed-Icm 240A
• Vce-on-Max-Vge-Ic 2V @ 15V, 80A
• Switching-Energy 2.1mJ (on), 1.5mJ (off)
• Gate-Charge 414nC
• Td-on-off-25°C 84ns/280ns
• Test-Condition 400V, 80A, 10 Ohm, 15V
