| Mfr. #: | STGW30H60DF |
|---|---|
| Fabricante: | STMicroelectronics |
| Descripción: | IGBT Transistors 600V 30A High Speed Trench Gate IGBT |
| Ciclo vital: | Nuevo de este fabricante. |
| Ficha de datos: | STGW30H60DF Ficha de datos |
Product belongs to the 600-650V IGBTs series. Tube is the packaging method for this product Weight of 0.229281 oz Through Hole Mounting-Style TO-247-3 The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-247 Configuration Single Maximum current collector Ic is 60A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at 120A. The Vce-on-Max-Vge-Ic is rated at 2.4V @ 15V, 30A. 50ns/160ns Td-on-off at 25°C; Operating temperature: 400V, 30A, 10 Ohm, 15V Power-off control: 260 W Maximum operating temperature of + 175 C Minimum operating temperature: - 40 C Rated VCEO up to 600 V Saturation voltage between collector and emitter is 2.4 V 60 A Continuous Collector Current at 25°C Maximum-Gate-Emitter-Voltage: 20 V
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

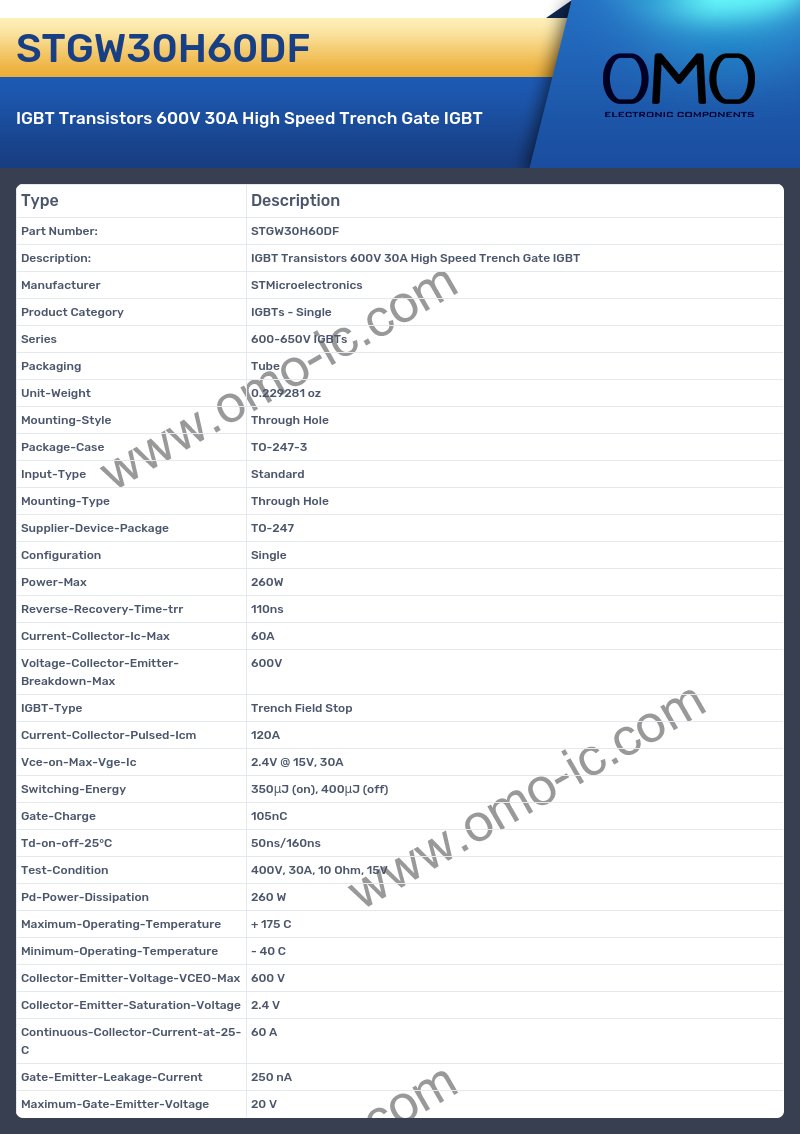

STGW30H60DF Specifications
A: Is the cutoff frequency of the product Series?
Q: Yes, the product's Series is indeed 600-650V IGBTs
A: At what frequency does the Packaging?
Q: The product Packaging is Tube.
A: Is the cutoff frequency of the product Unit-Weight?
Q: Yes, the product's Unit-Weight is indeed 0.229281 oz
A: At what frequency does the Mounting-Style?
Q: The product Mounting-Style is Through Hole.
A: Is the cutoff frequency of the product Package-Case?
Q: Yes, the product's Package-Case is indeed TO-247-3
A: Is the cutoff frequency of the product Input-Type?
Q: Yes, the product's Input-Type is indeed Standard
A: At what frequency does the Mounting-Type?
Q: The product Mounting-Type is Through Hole.
A: What is the Supplier-Device-Package of the product?
Q: The Supplier-Device-Package of the product is TO-247.
A: What is the Configuration of the product?
Q: The Configuration of the product is Single.
A: What is the Current-Collector-Ic-Max of the product?
Q: The Current-Collector-Ic-Max of the product is 60A.
A: At what frequency does the Voltage-Collector-Emitter-Breakdown-Max?
Q: The product Voltage-Collector-Emitter-Breakdown-Max is 600V.
A: At what frequency does the Current-Collector-Pulsed-Icm?
Q: The product Current-Collector-Pulsed-Icm is 120A.
A: Is the cutoff frequency of the product Vce-on-Max-Vge-Ic?
Q: Yes, the product's Vce-on-Max-Vge-Ic is indeed 2.4V @ 15V, 30A
A: At what frequency does the Td-on-off-25°C?
Q: The product Td-on-off-25°C is 50ns/160ns.
A: What is the Test-Condition of the product?
Q: The Test-Condition of the product is 400V, 30A, 10 Ohm, 15V.
A: At what frequency does the Pd-Power-Dissipation?
Q: The product Pd-Power-Dissipation is 260 W.
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 175 C.
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed - 40 C
A: Is the cutoff frequency of the product Collector-Emitter-Voltage-VCEO-Max?
Q: Yes, the product's Collector-Emitter-Voltage-VCEO-Max is indeed 600 V
A: At what frequency does the Collector-Emitter-Saturation-Voltage?
Q: The product Collector-Emitter-Saturation-Voltage is 2.4 V.
A: What is the Continuous-Collector-Current-at-25-C of the product?
Q: The Continuous-Collector-Current-at-25-C of the product is 60 A.
A: At what frequency does the Maximum-Gate-Emitter-Voltage?
Q: The product Maximum-Gate-Emitter-Voltage is 20 V.
