STGPL6NC60D

STGPL6NC60D Overview

Product belongs to the PowerMESH series. Tube is the packaging method for this product Weight of 0.211644 oz Through Hole Mounting-Style TO-220-3 The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-220AB Configuration Single Maximum current collector Ic is 14A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at 18A. The Vce-on-Max-Vge-Ic is rated at 2.9V @ 15V, 3A. 6.7ns/46ns Td-on-off at 25°C; Operating temperature: 390V, 3A, 10 Ohm, 15V Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C Rated VCEO up to 600 V Maximum-Gate-Emitter-Voltage: +/- 20 V Maximal 42 A Collector Current of Continuity;

STGPL6NC60D Image

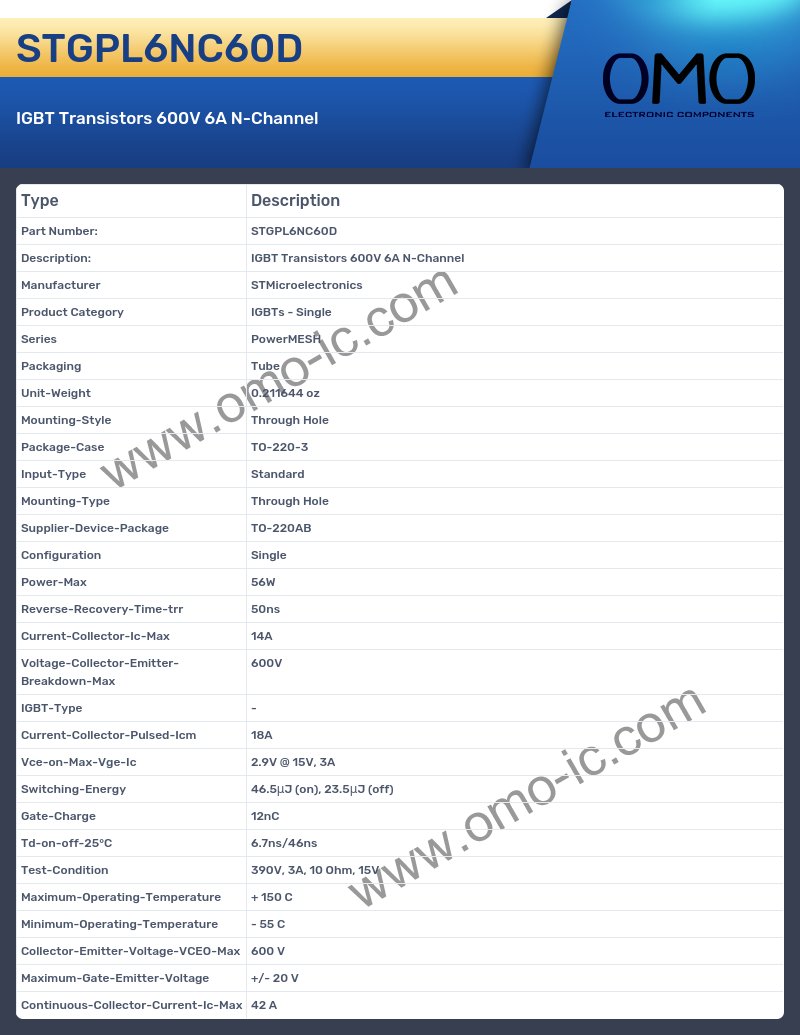

STGPL6NC60D Specifications

• Manufacturer STMicroelectronics
• Product Category IGBTs - Single
• Series PowerMESH
• Packaging Tube
• Unit-Weight 0.211644 oz
• Mounting-Style Through Hole
• Package-Case TO-220-3
• Input-Type Standard
• Mounting-Type Through Hole
• Supplier-Device-Package TO-220AB
• Configuration Single
• Power-Max 56W
• Reverse-Recovery-Time-trr 50ns
• Current-Collector-Ic-Max 14A
• Voltage-Collector-Emitter-Breakdown-Max 600V
• IGBT-Type -
• Current-Collector-Pulsed-Icm 18A
• Vce-on-Max-Vge-Ic 2.9V @ 15V, 3A
• Switching-Energy 46.5μJ (on), 23.5μJ (off)
• Gate-Charge 12nC
• Td-on-off-25°C 6.7ns/46ns
• Test-Condition 390V, 3A, 10 Ohm, 15V
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Collector-Emitter-Voltage-VCEO-Max 600 V
• Maximum-Gate-Emitter-Voltage +/- 20 V
• Continuous-Collector-Current-Ic-Max 42 A
