| Mfr. #: | STGP7NC60HD |
|---|---|
| Fabricante: | STMicroelectronics |
| Descripción: | IGBT 600V 25A 80W TO220 |
| Ciclo vital: | Nuevo de este fabricante. |
| Ficha de datos: | STGP7NC60HD Ficha de datos |
Product belongs to the PowerMESH series. Tube is the packaging method for this product Weight of 0.081130 oz Through Hole Mounting-Style TO-220-3 The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-220AB Configuration Single Maximum current collector Ic is 25A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at 50A. The Vce-on-Max-Vge-Ic is rated at 2.5V @ 15V, 7A. 18.5ns/72ns Td-on-off at 25°C; Operating temperature: 390V, 7A, 10 Ohm, 15V Power-off control: 80 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C Rated VCEO up to 600 V Saturation voltage between collector and emitter is 2.5 V Maximum-Gate-Emitter-Voltage: +/- 20 V Maximal 25 A Collector Current of Continuity;
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

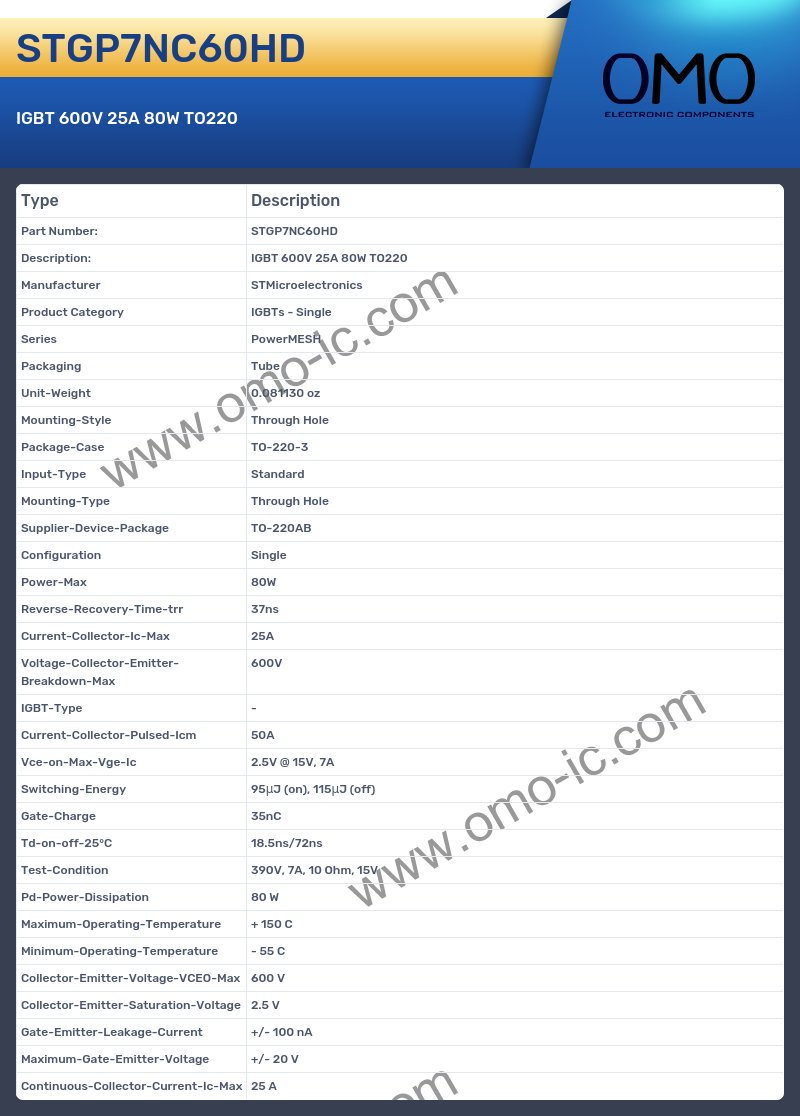

STGP7NC60HD Specifications
A: Is the cutoff frequency of the product Series?
Q: Yes, the product's Series is indeed PowerMESH
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Tube
A: Is the cutoff frequency of the product Unit-Weight?
Q: Yes, the product's Unit-Weight is indeed 0.081130 oz
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is Through Hole.
A: What is the Package-Case of the product?
Q: The Package-Case of the product is TO-220-3.
A: What is the Input-Type of the product?
Q: The Input-Type of the product is Standard.
A: At what frequency does the Mounting-Type?
Q: The product Mounting-Type is Through Hole.
A: At what frequency does the Supplier-Device-Package?
Q: The product Supplier-Device-Package is TO-220AB.
A: At what frequency does the Configuration?
Q: The product Configuration is Single.
A: At what frequency does the Current-Collector-Ic-Max?
Q: The product Current-Collector-Ic-Max is 25A.
A: At what frequency does the Voltage-Collector-Emitter-Breakdown-Max?
Q: The product Voltage-Collector-Emitter-Breakdown-Max is 600V.
A: What is the Current-Collector-Pulsed-Icm of the product?
Q: The Current-Collector-Pulsed-Icm of the product is 50A.
A: What is the Vce-on-Max-Vge-Ic of the product?
Q: The Vce-on-Max-Vge-Ic of the product is 2.5V @ 15V, 7A.
A: Is the cutoff frequency of the product Td-on-off-25°C?
Q: Yes, the product's Td-on-off-25°C is indeed 18.5ns/72ns
A: At what frequency does the Test-Condition?
Q: The product Test-Condition is 390V, 7A, 10 Ohm, 15V.
A: Is the cutoff frequency of the product Pd-Power-Dissipation?
Q: Yes, the product's Pd-Power-Dissipation is indeed 80 W
A: What is the Maximum-Operating-Temperature of the product?
Q: The Maximum-Operating-Temperature of the product is + 150 C.
A: What is the Minimum-Operating-Temperature of the product?
Q: The Minimum-Operating-Temperature of the product is - 55 C.
A: At what frequency does the Collector-Emitter-Voltage-VCEO-Max?
Q: The product Collector-Emitter-Voltage-VCEO-Max is 600 V.
A: Is the cutoff frequency of the product Collector-Emitter-Saturation-Voltage?
Q: Yes, the product's Collector-Emitter-Saturation-Voltage is indeed 2.5 V
A: Is the cutoff frequency of the product Maximum-Gate-Emitter-Voltage?
Q: Yes, the product's Maximum-Gate-Emitter-Voltage is indeed +/- 20 V
A: Is the cutoff frequency of the product Continuous-Collector-Current-Ic-Max?
Q: Yes, the product's Continuous-Collector-Current-Ic-Max is indeed 25 A
