| Mfr. #: | STGFW30V60F |
|---|---|
| Fabricante: | STMicroelectronics |
| Descripción: | IGBT Transistors 600V 30A Hi Spd TrenchGate FieldStop |
| Ciclo vital: | Nuevo de este fabricante. |
| Ficha de datos: | STGFW30V60F Ficha de datos |
Product belongs to the 600-650V IGBTs series. Tube is the packaging method for this product Weight of 0.245577 oz Through Hole Mounting-Style TO-3P-3 Full Pack The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-3PF Configuration Single Maximum current collector Ic is 60A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at 120A. The Vce-on-Max-Vge-Ic is rated at 2.3V @ 15V, 30A. 45ns/189ns Td-on-off at 25°C; Operating temperature: 400V, 30A, 10 Ohm, 15V Power-off control: 58 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C Rated VCEO up to 600 V Saturation voltage between collector and emitter is 2.3 V 60 A Continuous Collector Current at 25°C Maximum-Gate-Emitter-Voltage: 20 V Maximal 30 A Collector Current of Continuity;
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

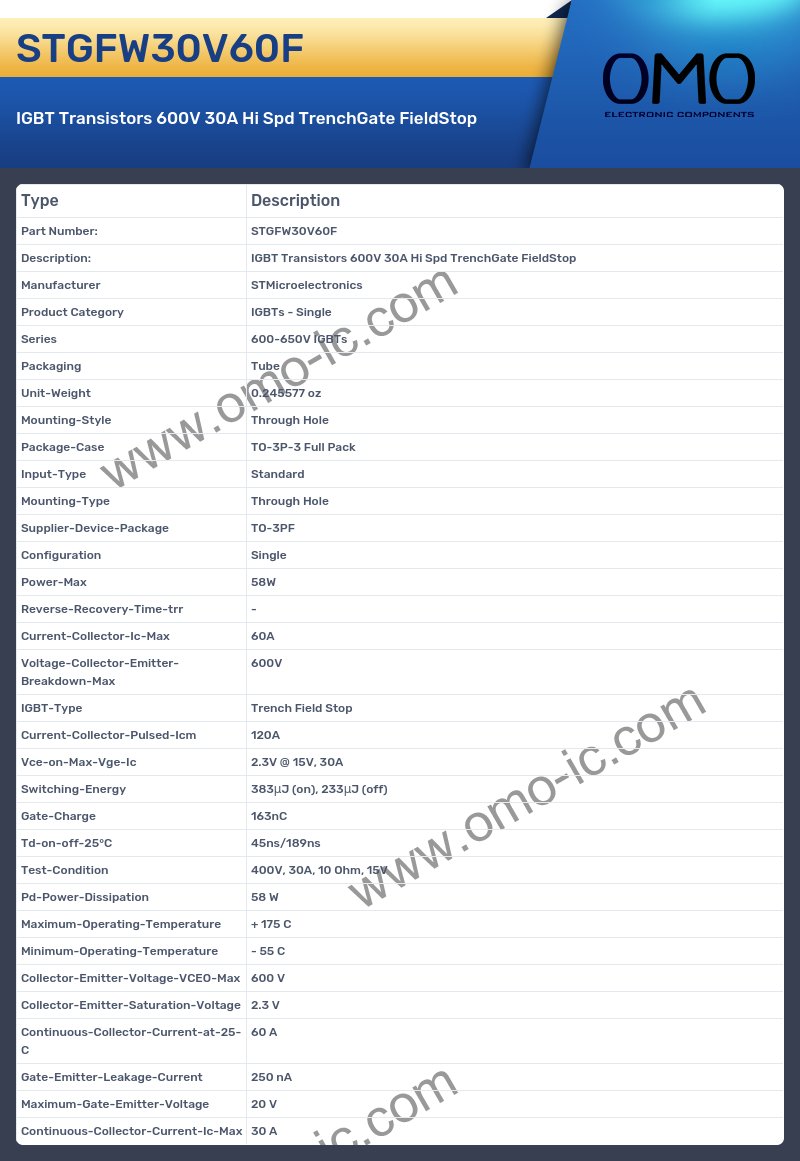

STGFW30V60F Specifications
A: What is the Series of the product?
Q: The Series of the product is 600-650V IGBTs.
A: What is the Packaging of the product?
Q: The Packaging of the product is Tube.
A: What is the Unit-Weight of the product?
Q: The Unit-Weight of the product is 0.245577 oz.
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is Through Hole.
A: What is the Package-Case of the product?
Q: The Package-Case of the product is TO-3P-3 Full Pack.
A: What is the Input-Type of the product?
Q: The Input-Type of the product is Standard.
A: Is the cutoff frequency of the product Mounting-Type?
Q: Yes, the product's Mounting-Type is indeed Through Hole
A: Is the cutoff frequency of the product Supplier-Device-Package?
Q: Yes, the product's Supplier-Device-Package is indeed TO-3PF
A: Is the cutoff frequency of the product Configuration?
Q: Yes, the product's Configuration is indeed Single
A: What is the Current-Collector-Ic-Max of the product?
Q: The Current-Collector-Ic-Max of the product is 60A.
A: Is the cutoff frequency of the product Voltage-Collector-Emitter-Breakdown-Max?
Q: Yes, the product's Voltage-Collector-Emitter-Breakdown-Max is indeed 600V
A: At what frequency does the Current-Collector-Pulsed-Icm?
Q: The product Current-Collector-Pulsed-Icm is 120A.
A: What is the Vce-on-Max-Vge-Ic of the product?
Q: The Vce-on-Max-Vge-Ic of the product is 2.3V @ 15V, 30A.
A: At what frequency does the Td-on-off-25°C?
Q: The product Td-on-off-25°C is 45ns/189ns.
A: At what frequency does the Test-Condition?
Q: The product Test-Condition is 400V, 30A, 10 Ohm, 15V.
A: Is the cutoff frequency of the product Pd-Power-Dissipation?
Q: Yes, the product's Pd-Power-Dissipation is indeed 58 W
A: What is the Maximum-Operating-Temperature of the product?
Q: The Maximum-Operating-Temperature of the product is + 175 C.
A: What is the Minimum-Operating-Temperature of the product?
Q: The Minimum-Operating-Temperature of the product is - 55 C.
A: Is the cutoff frequency of the product Collector-Emitter-Voltage-VCEO-Max?
Q: Yes, the product's Collector-Emitter-Voltage-VCEO-Max is indeed 600 V
A: At what frequency does the Collector-Emitter-Saturation-Voltage?
Q: The product Collector-Emitter-Saturation-Voltage is 2.3 V.
A: At what frequency does the Continuous-Collector-Current-at-25-C?
Q: The product Continuous-Collector-Current-at-25-C is 60 A.
A: Is the cutoff frequency of the product Maximum-Gate-Emitter-Voltage?
Q: Yes, the product's Maximum-Gate-Emitter-Voltage is indeed 20 V
A: What is the Continuous-Collector-Current-Ic-Max of the product?
Q: The Continuous-Collector-Current-Ic-Max of the product is 30 A.
