| Mfr. #: | STGF7NC60HD |
|---|---|
| Fabricante: | STMicroelectronics |
| Descripción: | IGBT 600V 10A 25W TO220FP |
| Ciclo vital: | Nuevo de este fabricante. |
| Ficha de datos: | STGF7NC60HD Ficha de datos |
Product belongs to the PowerMESH series. Tube is the packaging method for this product Weight of 0.081130 oz Through Hole Mounting-Style TO-220-3 Full Pack The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-220FP Configuration Single Maximum current collector Ic is 10A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at 50A. The Vce-on-Max-Vge-Ic is rated at 2.5V @ 15V, 7A. 18.5ns/72ns Td-on-off at 25°C; Operating temperature: 390V, 7A, 10 Ohm, 15V Power-off control: 25 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C Rated VCEO up to 600 V Saturation voltage between collector and emitter is 2.5 V 10 A Continuous Collector Current at 25°C Maximum-Gate-Emitter-Voltage: +/- 20 V Maximal 10 A Collector Current of Continuity;
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

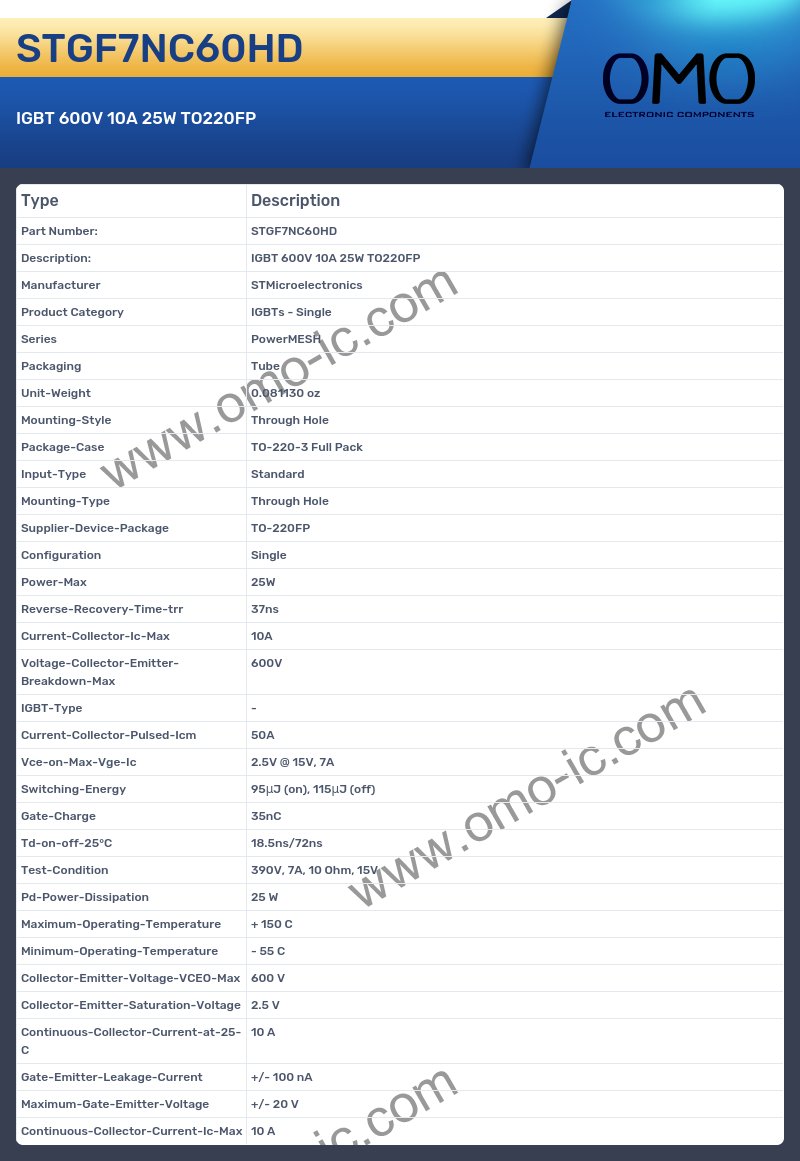

STGF7NC60HD Specifications
A: At what frequency does the Series?
Q: The product Series is PowerMESH.
A: At what frequency does the Packaging?
Q: The product Packaging is Tube.
A: What is the Unit-Weight of the product?
Q: The Unit-Weight of the product is 0.081130 oz.
A: Is the cutoff frequency of the product Mounting-Style?
Q: Yes, the product's Mounting-Style is indeed Through Hole
A: At what frequency does the Package-Case?
Q: The product Package-Case is TO-220-3 Full Pack.
A: At what frequency does the Input-Type?
Q: The product Input-Type is Standard.
A: Is the cutoff frequency of the product Mounting-Type?
Q: Yes, the product's Mounting-Type is indeed Through Hole
A: What is the Supplier-Device-Package of the product?
Q: The Supplier-Device-Package of the product is TO-220FP.
A: What is the Configuration of the product?
Q: The Configuration of the product is Single.
A: Is the cutoff frequency of the product Current-Collector-Ic-Max?
Q: Yes, the product's Current-Collector-Ic-Max is indeed 10A
A: Is the cutoff frequency of the product Voltage-Collector-Emitter-Breakdown-Max?
Q: Yes, the product's Voltage-Collector-Emitter-Breakdown-Max is indeed 600V
A: What is the Current-Collector-Pulsed-Icm of the product?
Q: The Current-Collector-Pulsed-Icm of the product is 50A.
A: At what frequency does the Vce-on-Max-Vge-Ic?
Q: The product Vce-on-Max-Vge-Ic is 2.5V @ 15V, 7A.
A: What is the Td-on-off-25°C of the product?
Q: The Td-on-off-25°C of the product is 18.5ns/72ns.
A: At what frequency does the Test-Condition?
Q: The product Test-Condition is 390V, 7A, 10 Ohm, 15V.
A: What is the Pd-Power-Dissipation of the product?
Q: The Pd-Power-Dissipation of the product is 25 W.
A: Is the cutoff frequency of the product Maximum-Operating-Temperature?
Q: Yes, the product's Maximum-Operating-Temperature is indeed + 150 C
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed - 55 C
A: What is the Collector-Emitter-Voltage-VCEO-Max of the product?
Q: The Collector-Emitter-Voltage-VCEO-Max of the product is 600 V.
A: What is the Collector-Emitter-Saturation-Voltage of the product?
Q: The Collector-Emitter-Saturation-Voltage of the product is 2.5 V.
A: At what frequency does the Continuous-Collector-Current-at-25-C?
Q: The product Continuous-Collector-Current-at-25-C is 10 A.
A: What is the Maximum-Gate-Emitter-Voltage of the product?
Q: The Maximum-Gate-Emitter-Voltage of the product is +/- 20 V.
A: What is the Continuous-Collector-Current-Ic-Max of the product?
Q: The Continuous-Collector-Current-Ic-Max of the product is 10 A.
