| Mfr. #: | STGF6NC60HD |
|---|---|
| Fabricante: | STMicroelectronics |
| Descripción: | IGBT 600V 6A 20W TO220FP |
| Ciclo vital: | Nuevo de este fabricante. |
| Ficha de datos: | STGF6NC60HD Ficha de datos |
Product belongs to the PowerMESH series. Tube is the packaging method for this product Weight of 0.081130 oz Through Hole Mounting-Style TO-220-3 Full Pack The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-220FP Configuration Single Maximum current collector Ic is 6A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at 21A. The Vce-on-Max-Vge-Ic is rated at 2.5V @ 15V, 3A. 12ns/76ns Td-on-off at 25°C; Operating temperature: 390V, 3A, 10 Ohm, 15V Power-off control: 20 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C Rated VCEO up to 600 V Saturation voltage between collector and emitter is 1.9 V Maximum-Gate-Emitter-Voltage: +/- 20 V Maximal 6 A Collector Current of Continuity;
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

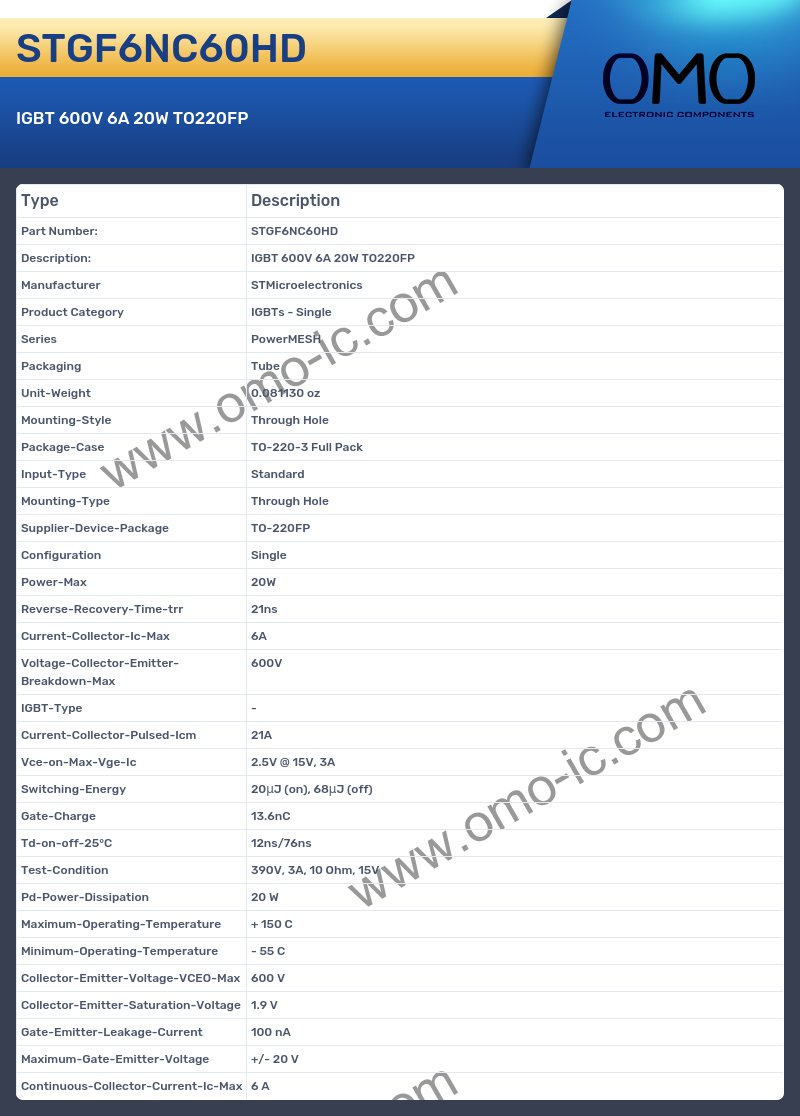

STGF6NC60HD Specifications
A: Is the cutoff frequency of the product Series?
Q: Yes, the product's Series is indeed PowerMESH
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Tube
A: At what frequency does the Unit-Weight?
Q: The product Unit-Weight is 0.081130 oz.
A: At what frequency does the Mounting-Style?
Q: The product Mounting-Style is Through Hole.
A: At what frequency does the Package-Case?
Q: The product Package-Case is TO-220-3 Full Pack.
A: At what frequency does the Input-Type?
Q: The product Input-Type is Standard.
A: At what frequency does the Mounting-Type?
Q: The product Mounting-Type is Through Hole.
A: What is the Supplier-Device-Package of the product?
Q: The Supplier-Device-Package of the product is TO-220FP.
A: At what frequency does the Configuration?
Q: The product Configuration is Single.
A: What is the Current-Collector-Ic-Max of the product?
Q: The Current-Collector-Ic-Max of the product is 6A.
A: What is the Voltage-Collector-Emitter-Breakdown-Max of the product?
Q: The Voltage-Collector-Emitter-Breakdown-Max of the product is 600V.
A: Is the cutoff frequency of the product Current-Collector-Pulsed-Icm?
Q: Yes, the product's Current-Collector-Pulsed-Icm is indeed 21A
A: What is the Vce-on-Max-Vge-Ic of the product?
Q: The Vce-on-Max-Vge-Ic of the product is 2.5V @ 15V, 3A.
A: At what frequency does the Td-on-off-25°C?
Q: The product Td-on-off-25°C is 12ns/76ns.
A: At what frequency does the Test-Condition?
Q: The product Test-Condition is 390V, 3A, 10 Ohm, 15V.
A: Is the cutoff frequency of the product Pd-Power-Dissipation?
Q: Yes, the product's Pd-Power-Dissipation is indeed 20 W
A: What is the Maximum-Operating-Temperature of the product?
Q: The Maximum-Operating-Temperature of the product is + 150 C.
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed - 55 C
A: At what frequency does the Collector-Emitter-Voltage-VCEO-Max?
Q: The product Collector-Emitter-Voltage-VCEO-Max is 600 V.
A: What is the Collector-Emitter-Saturation-Voltage of the product?
Q: The Collector-Emitter-Saturation-Voltage of the product is 1.9 V.
A: What is the Maximum-Gate-Emitter-Voltage of the product?
Q: The Maximum-Gate-Emitter-Voltage of the product is +/- 20 V.
A: At what frequency does the Continuous-Collector-Current-Ic-Max?
Q: The product Continuous-Collector-Current-Ic-Max is 6 A.
