STGE50NC60VD

STGE50NC60VD Overview

Product belongs to the PowerMESH series. Tube is the packaging method for this product Weight of 1 oz Through Hole Mounting-Style ISOTOP Chassis Mount mounting type Supplier device package: ISOTOP Input type: Standard Configuration Single Maximum current collector Ic is 90A . Maximum collector-emitter breakdown voltage of 600V The Vce-on-Max-Vge-Ic is rated at 2.5V @ 15V, 40A. 4.55nF @ 25V of Input-Capacitance-Cies-Vce; No NTC-Thermistor Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C Rated VCEO up to 600 V Maximum-Gate-Emitter-Voltage: +/- 20 V Maximal 80 A Collector Current of Continuity;

STGE50NC60VD Image

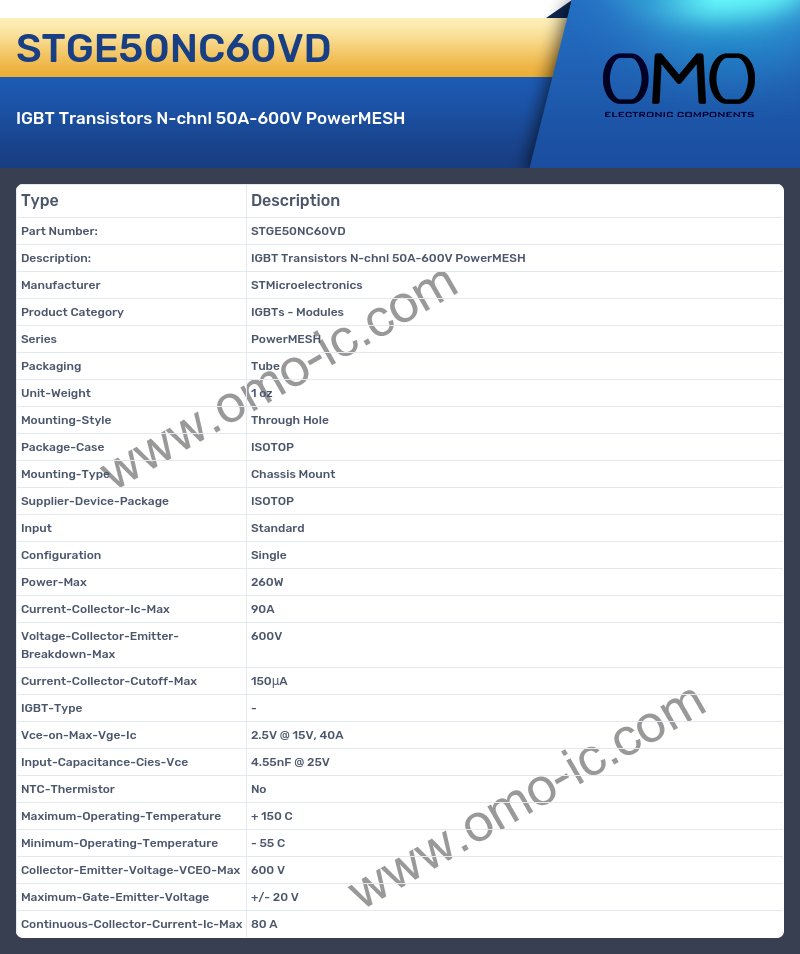

STGE50NC60VD Specifications

• Manufacturer STMicroelectronics
• Product Category IGBTs - Modules
• Series PowerMESH
• Packaging Tube
• Unit-Weight 1 oz
• Mounting-Style Through Hole
• Package-Case ISOTOP
• Mounting-Type Chassis Mount
• Supplier-Device-Package ISOTOP
• Input Standard
• Configuration Single
• Power-Max 260W
• Current-Collector-Ic-Max 90A
• Voltage-Collector-Emitter-Breakdown-Max 600V
• Current-Collector-Cutoff-Max 150μA
• IGBT-Type -
• Vce-on-Max-Vge-Ic 2.5V @ 15V, 40A
• Input-Capacitance-Cies-Vce 4.55nF @ 25V
• NTC-Thermistor No
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Collector-Emitter-Voltage-VCEO-Max 600 V
• Maximum-Gate-Emitter-Voltage +/- 20 V
• Continuous-Collector-Current-Ic-Max 80 A
