STGB30H60DLFB

STGB30H60DLFB Overview

Product belongs to the - series. Digi-ReelR Alternate Packaging is the packaging method for this product TO-263-3, D2Pak (2 Leads + Tab), TO-263AB The Standard for this product is CMOS/TTL. Surface Mount mounting type Supplier device package: D2PAK Maximum current collector Ic is 60A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at 120A. The Vce-on-Max-Vge-Ic is rated at 2V @ 15V, 30A. -/146ns Td-on-off at 25°C; Operating temperature: 400V, 30A, 10 Ohm, 15V

STGB30H60DLFB Image

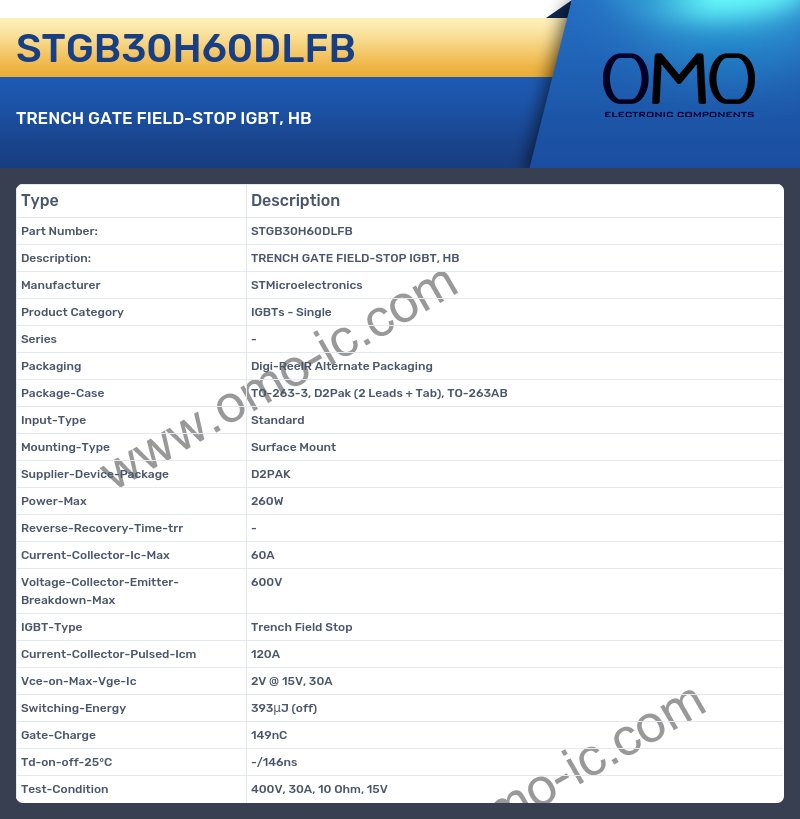

STGB30H60DLFB Specifications

• Manufacturer STMicroelectronics
• Product Category IGBTs - Single
• Series -
• Packaging Digi-ReelR Alternate Packaging
• Package-Case TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
• Input-Type Standard
• Mounting-Type Surface Mount
• Supplier-Device-Package D2PAK
• Power-Max 260W
• Reverse-Recovery-Time-trr -
• Current-Collector-Ic-Max 60A
• Voltage-Collector-Emitter-Breakdown-Max 600V
• IGBT-Type Trench Field Stop
• Current-Collector-Pulsed-Icm 120A
• Vce-on-Max-Vge-Ic 2V @ 15V, 30A
• Switching-Energy 393μJ (off)
• Gate-Charge 149nC
• Td-on-off-25°C -/146ns
• Test-Condition 400V, 30A, 10 Ohm, 15V
