| Mfr. #: | STF10LN80K5 |
|---|---|
| Fabricante: | STMicroelectronics |
| Descripción: | MOSFET N-CH 800V 8A TO-220FP |
| Ciclo vital: | Nuevo de este fabricante. |
| Ficha de datos: | STF10LN80K5 Ficha de datos |
RoHS compliant with Details Input bias current of Through Hole Package type is IPAK-3 Single 1 Channel for basic signal processing The transistor polarity is N-Channel. 800 V is the Vds - Drain-Source Breakdown Voltage Continuous Drain Current identified as 5 A; The Rds On - Drain-Source Resistance of the product is 1.15 Ohms. The Vgs - Gate-Source Voltage attribute for this product is +/- 30 V. The 3 V Gate-Source Threshold Voltage of Vgs th; 12 nC Gate Charge of Qg; Maximum Operating Temperature: + 150 C Si is the technology used. Enhancement Channel Mode Configuration 1 N-Channel Fall Time of 17.4 ns - 55 C minimum operating temperature The power dissipation is 85 W. 6.7 ns Rise Time 1 N-Channel Transistor Type Typical Turn-Off Delay Time of 23.6 ns; The 9.3 ns typical turn-on delay time
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

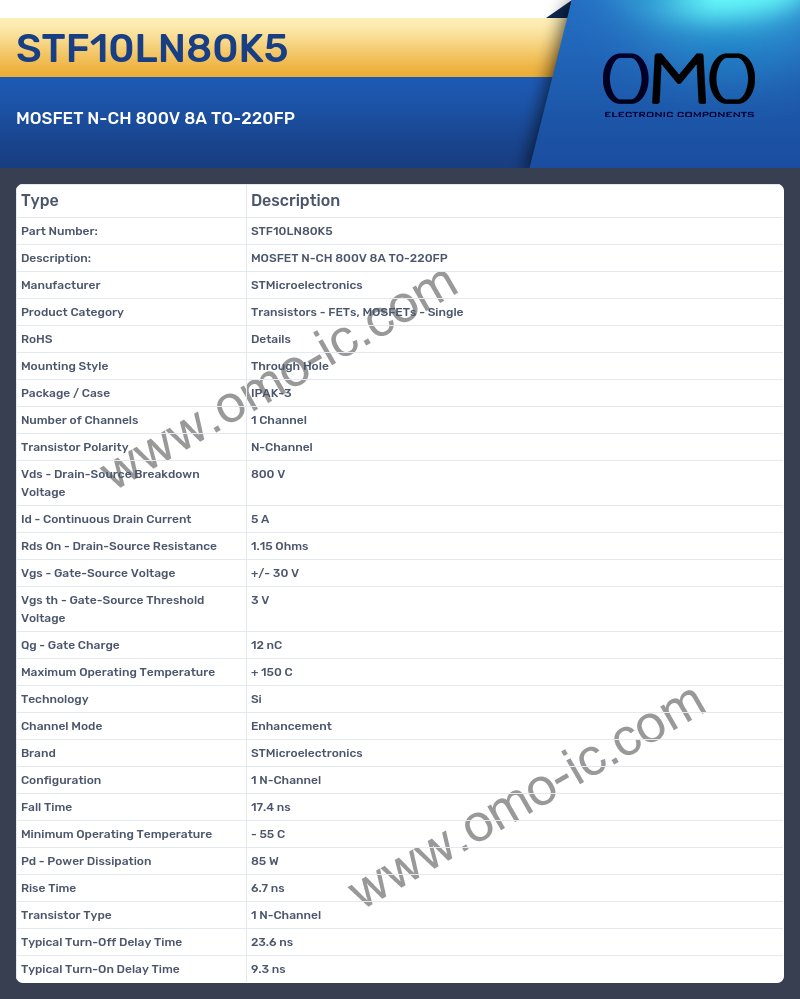

STF10LN80K5 Specifications
