STD845DN40

STD845DN40 Overview

Product belongs to the STD845DN40 series. Tube is the packaging method for this product Weight of 0.080001 oz Through Hole Mounting-Style 8-DIP (0.300", 7.62mm) Through Hole mounting type Supplier device package: 8-DIP Configuration Dual Transistor type: 2 NPN (Dual) Maximum current collector Ic is 4A . Maximum collector-emitter breakdown voltage of 400V DC current gain minimum (hFE) of Ic/Vce at 12 @ 2A, 5V. Product Attribute: Vce-Saturation-Max-Ib-Ic: 500mV @ 1A, 4A Power-off control: 45 W Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Rated VCEO up to 400 V The transistor polarity is NPN. Saturation voltage between collector and emitter is 500 mV The 700 V voltage rating is 40 V. 9 V to 18 V rating of 5 V Max DC collector current: 8 A This product is capable of handling a 4 A continuous collector current. Minimum hfe for DC collector-base gain is 10.

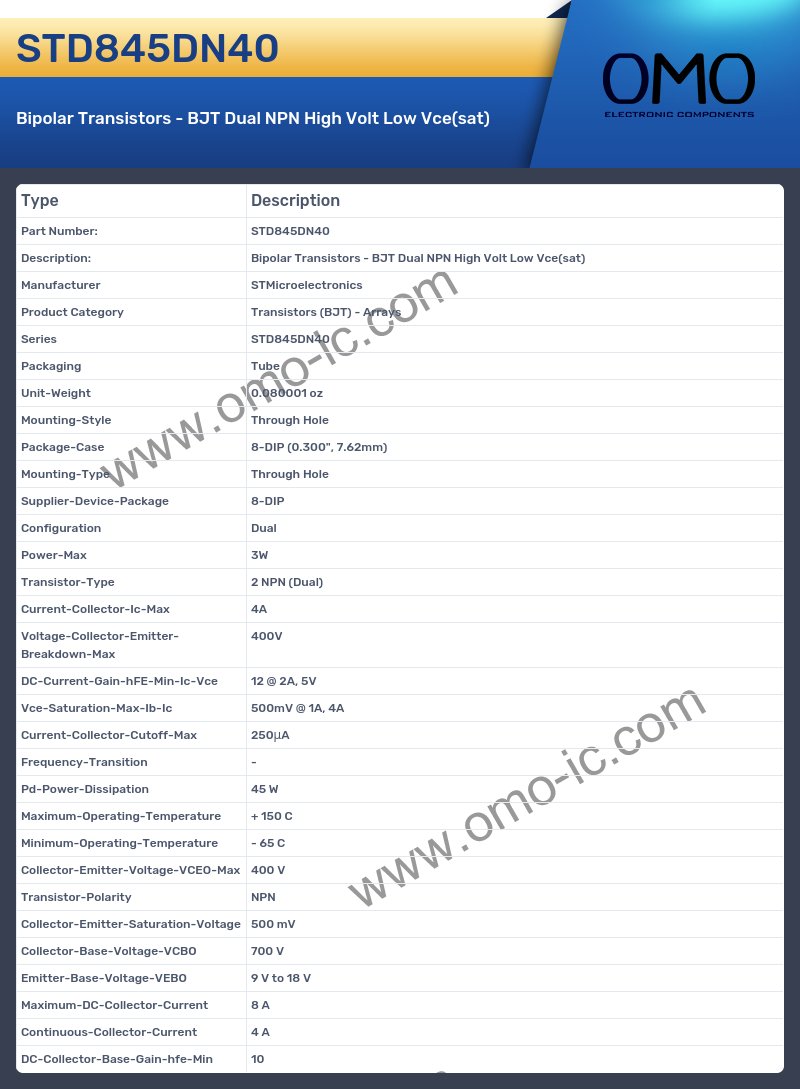

STD845DN40 Image

STD845DN40 Specifications

• Manufacturer STMicroelectronics
• Product Category Transistors (BJT) - Arrays
• Series STD845DN40
• Packaging Tube
• Unit-Weight 0.080001 oz
• Mounting-Style Through Hole
• Package-Case 8-DIP (0.300", 7.62mm)
• Mounting-Type Through Hole
• Supplier-Device-Package 8-DIP
• Configuration Dual
• Power-Max 3W
• Transistor-Type 2 NPN (Dual)
• Current-Collector-Ic-Max 4A
• Voltage-Collector-Emitter-Breakdown-Max 400V
• DC-Current-Gain-hFE-Min-Ic-Vce 12 @ 2A, 5V
• Vce-Saturation-Max-Ib-Ic 500mV @ 1A, 4A
• Current-Collector-Cutoff-Max 250μA
• Frequency-Transition -
• Pd-Power-Dissipation 45 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 65 C
• Collector-Emitter-Voltage-VCEO-Max 400 V
• Transistor-Polarity NPN
• Collector-Emitter-Saturation-Voltage 500 mV
• Collector-Base-Voltage-VCBO 700 V
• Emitter-Base-Voltage-VEBO 9 V to 18 V
• Maximum-DC-Collector-Current 8 A
• Continuous-Collector-Current 4 A
• DC-Collector-Base-Gain-hfe-Min 10
