STD80N4F6

STD80N4F6 Overview

Product belongs to the N-channel STripFET series. Reel is the packaging method for this product Weight of 0.139332 oz SMD/SMT Mounting-Style TO-252-3 Si is the technology used. Number of channels: 1 Channel Transistor type: 1 N-Channel Power-off control: 70 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C This product has a 11.9 ns of 16 ns. This product has a 7.6 ns of 16 ns. The ID of continuous drain current is 80 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 40 V. This product has a 4 V Vgs-th gate-source threshold voltage for efficient power management. The 6 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 46.1 ns This product has a 10.5 ns. Qg-Gate-Charge is 36 nC.

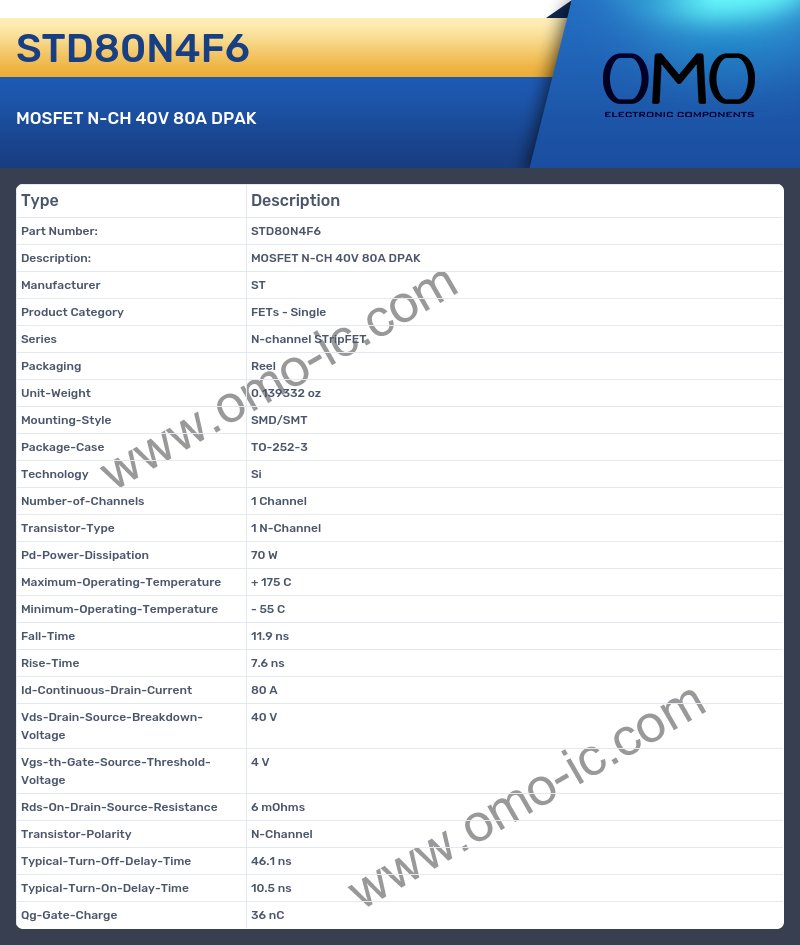

STD80N4F6 Image

STD80N4F6 Specifications

• Manufacturer ST
• Product Category FETs - Single
• Series N-channel STripFET
• Packaging Reel
• Unit-Weight 0.139332 oz
• Mounting-Style SMD/SMT
• Package-Case TO-252-3
• Technology Si
• Number-of-Channels 1 Channel
• Transistor-Type 1 N-Channel
• Pd-Power-Dissipation 70 W
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 55 C
• Fall-Time 11.9 ns
• Rise-Time 7.6 ns
• Id-Continuous-Drain-Current 80 A
• Vds-Drain-Source-Breakdown-Voltage 40 V
• Vgs-th-Gate-Source-Threshold-Voltage 4 V
• Rds-On-Drain-Source-Resistance 6 mOhms
• Transistor-Polarity N-Channel
• Typical-Turn-Off-Delay-Time 46.1 ns
• Typical-Turn-On-Delay-Time 10.5 ns
• Qg-Gate-Charge 36 nC
