STD60N55F3

STD60N55F3 Overview

Product belongs to the STripFET III series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.139332 oz SMD/SMT Mounting-Style TO-252-3, DPak (2 Leads + Tab), SC-63 Si is the technology used. Operational temperature range: -55°C ~ 175°C (TJ) Surface Mount mounting type Number of channels: 1 Channel Supplier device package: D-Pak Configuration Single This product uses an MOSFET N-Channel, Metal Oxide FET-Type transistor. Transistor type: 1 N-Channel 55V This product has an 2200pF @ 25V value of 300pF @ 25V. This product's Standard. 80A (Tc) continuous drain-ID current at 25°C; This product has an 8.5 mOhm @ 32A, 10V of 12 Ohm @ 150mA, 0V. Power-off control: 110 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C This product has a 11.5 ns of 16 ns. This product has a 50 ns of 16 ns. This product's 20 V. The ID of continuous drain current is 80 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 55 V. The 8.5 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 35 ns This product has a 20 ns. This product operates in Enhancement channel mode for optimal performance.

STD60N55F3 Image

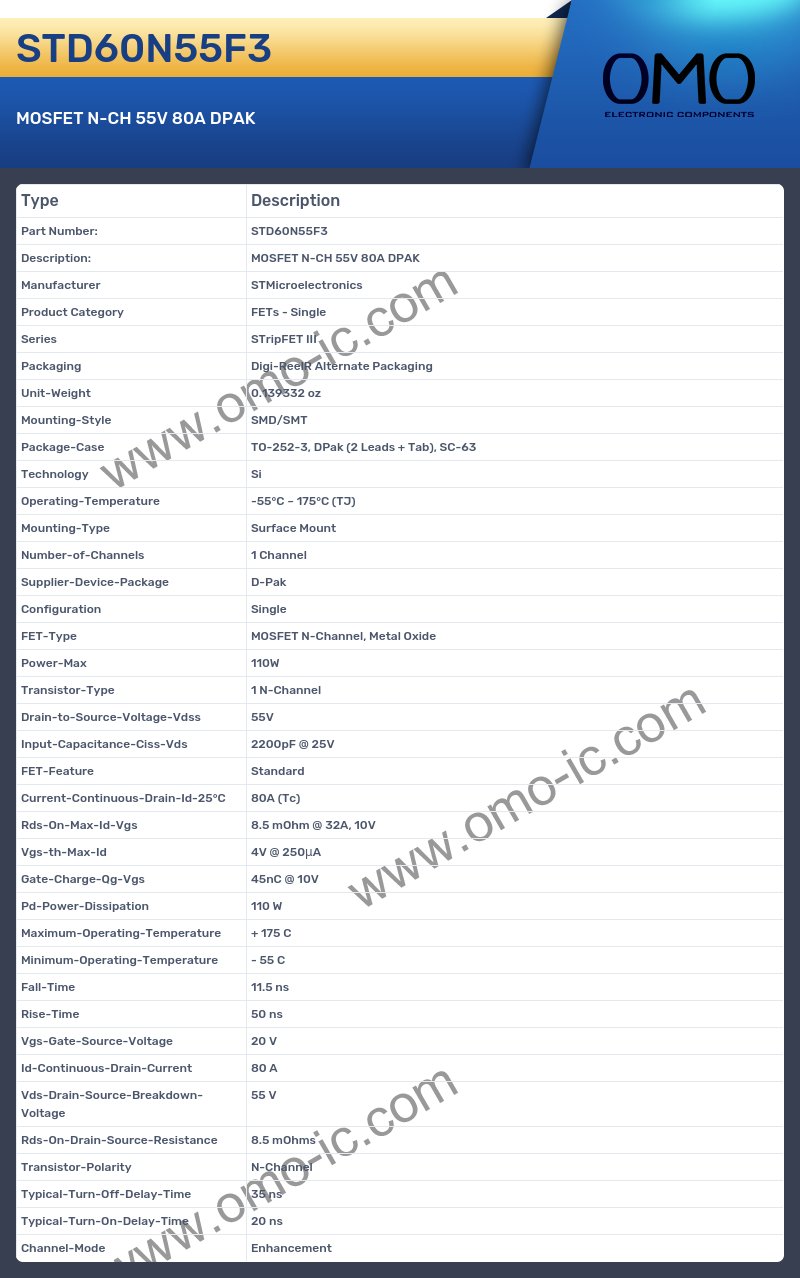

STD60N55F3 Specifications

• Manufacturer STMicroelectronics
• Product Category FETs - Single
• Series STripFET III
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.139332 oz
• Mounting-Style SMD/SMT
• Package-Case TO-252-3, DPak (2 Leads + Tab), SC-63
• Technology Si
• Operating-Temperature -55°C ~ 175°C (TJ)
• Mounting-Type Surface Mount
• Number-of-Channels 1 Channel
• Supplier-Device-Package D-Pak
• Configuration Single
• FET-Type MOSFET N-Channel, Metal Oxide
• Power-Max 110W
• Transistor-Type 1 N-Channel
• Drain-to-Source-Voltage-Vdss 55V
• Input-Capacitance-Ciss-Vds 2200pF @ 25V
• FET-Feature Standard
• Current-Continuous-Drain-Id-25°C 80A (Tc)
• Rds-On-Max-Id-Vgs 8.5 mOhm @ 32A, 10V
• Vgs-th-Max-Id 4V @ 250μA
• Gate-Charge-Qg-Vgs 45nC @ 10V
• Pd-Power-Dissipation 110 W
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 55 C
• Fall-Time 11.5 ns
• Rise-Time 50 ns
• Vgs-Gate-Source-Voltage 20 V
• Id-Continuous-Drain-Current 80 A
• Vds-Drain-Source-Breakdown-Voltage 55 V
• Rds-On-Drain-Source-Resistance 8.5 mOhms
• Transistor-Polarity N-Channel
• Typical-Turn-Off-Delay-Time 35 ns
• Typical-Turn-On-Delay-Time 20 ns
• Channel-Mode Enhancement
