| Mfr. #: | STD30NF03LT4 |
|---|---|
| Fabricante: | STMicroelectronics |
| Descripción: | MOSFET N-CH 30V 30A DPAK |
| Ciclo vital: | Nuevo de este fabricante. |
| Ficha de datos: | STD30NF03LT4 Ficha de datos |
Product belongs to the STripFET II series. Tape & Reel (TR) is the packaging method for this product Weight of 0.139332 oz SMD/SMT Mounting-Style TO-252-3, DPak (2 Leads + Tab), SC-63 Si is the technology used. Operational temperature range: -65°C ~ 175°C (TJ) Surface Mount mounting type Number of channels: 1 Channel Supplier device package: D-Pak Configuration Single This product uses an MOSFET N-Channel, Metal Oxide FET-Type transistor. Transistor type: 1 N-Channel 30V This product has an 830pF @ 25V value of 300pF @ 25V. This product's Standard. 30A (Tc) continuous drain-ID current at 25°C; This product has an 25 mOhm @ 15A, 10V of 12 Ohm @ 150mA, 0V. Power-off control: 50 W Maximum operating temperature of + 175 C Minimum operating temperature: - 65 C This product has a 240 ns of 16 ns. This product has a 205 ns of 16 ns. This product's 20 V. The ID of continuous drain current is 30 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 30 V. The 20 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 90 ns This product has a 35 ns. This product features a 13 S of 500 S for high performance. This product operates in Enhancement channel mode for optimal performance.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

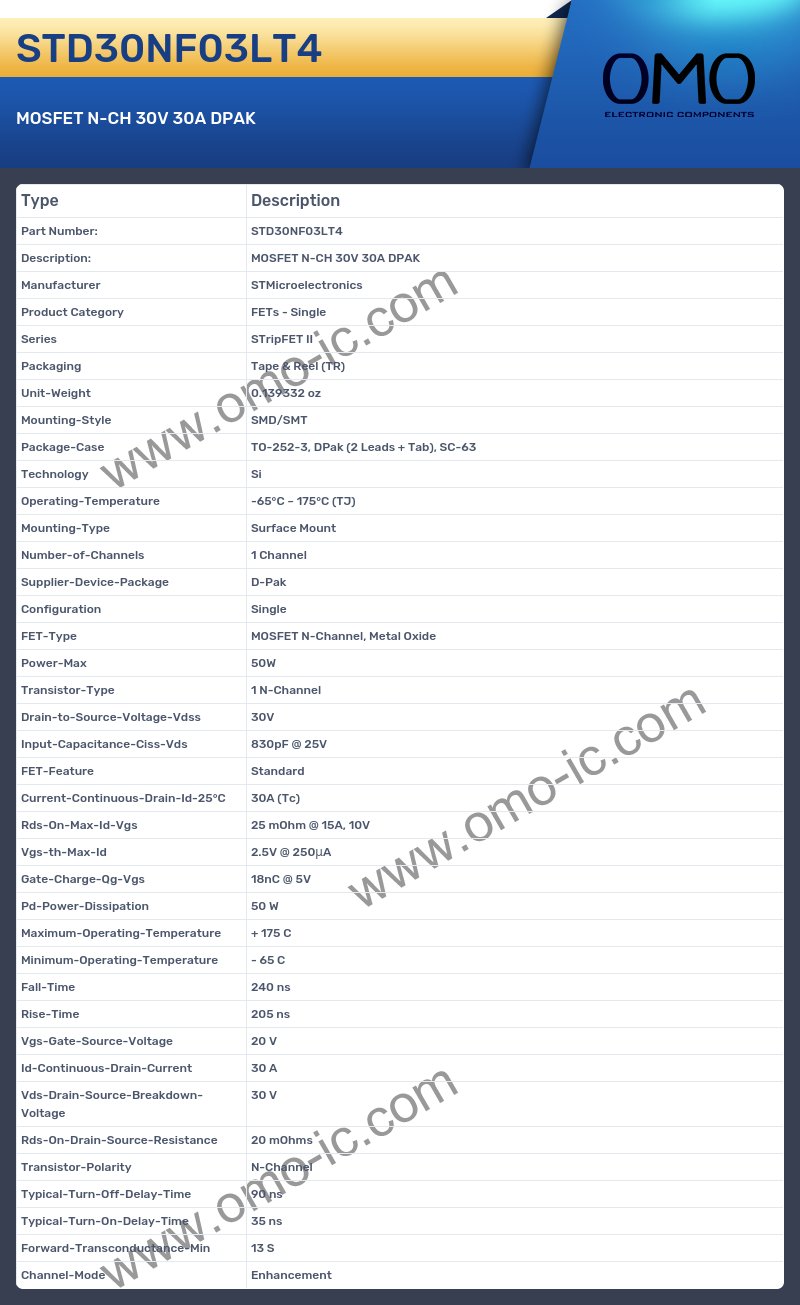

STD30NF03LT4 Specifications
A: What is the Series of the product?
Q: The Series of the product is STripFET II.
A: At what frequency does the Packaging?
Q: The product Packaging is Tape & Reel (TR).
A: At what frequency does the Unit-Weight?
Q: The product Unit-Weight is 0.139332 oz.
A: At what frequency does the Mounting-Style?
Q: The product Mounting-Style is SMD/SMT.
A: At what frequency does the Package-Case?
Q: The product Package-Case is TO-252-3, DPak (2 Leads + Tab), SC-63.
A: Is the cutoff frequency of the product Technology?
Q: Yes, the product's Technology is indeed Si
A: At what frequency does the Operating-Temperature?
Q: The product Operating-Temperature is -65°C ~ 175°C (TJ).
A: What is the Mounting-Type of the product?
Q: The Mounting-Type of the product is Surface Mount.
A: Is the cutoff frequency of the product Number-of-Channels?
Q: Yes, the product's Number-of-Channels is indeed 1 Channel
A: At what frequency does the Supplier-Device-Package?
Q: The product Supplier-Device-Package is D-Pak.
A: Is the cutoff frequency of the product Configuration?
Q: Yes, the product's Configuration is indeed Single
A: What is the FET-Type of the product?
Q: The FET-Type of the product is MOSFET N-Channel, Metal Oxide.
A: Is the cutoff frequency of the product Transistor-Type?
Q: Yes, the product's Transistor-Type is indeed 1 N-Channel
A: What is the Drain-to-Source-Voltage-Vdss of the product?
Q: The Drain-to-Source-Voltage-Vdss of the product is 30V.
A: At what frequency does the Input-Capacitance-Ciss-Vds?
Q: The product Input-Capacitance-Ciss-Vds is 830pF @ 25V.
A: Is the cutoff frequency of the product FET-Feature?
Q: Yes, the product's FET-Feature is indeed Standard
A: What is the Current-Continuous-Drain-Id-25°C of the product?
Q: The Current-Continuous-Drain-Id-25°C of the product is 30A (Tc).
A: At what frequency does the Rds-On-Max-Id-Vgs?
Q: The product Rds-On-Max-Id-Vgs is 25 mOhm @ 15A, 10V.
A: What is the Pd-Power-Dissipation of the product?
Q: The Pd-Power-Dissipation of the product is 50 W.
A: What is the Maximum-Operating-Temperature of the product?
Q: The Maximum-Operating-Temperature of the product is + 175 C.
A: At what frequency does the Minimum-Operating-Temperature?
Q: The product Minimum-Operating-Temperature is - 65 C.
A: What is the Fall-Time of the product?
Q: The Fall-Time of the product is 240 ns.
A: Is the cutoff frequency of the product Rise-Time?
Q: Yes, the product's Rise-Time is indeed 205 ns
A: Is the cutoff frequency of the product Vgs-Gate-Source-Voltage?
Q: Yes, the product's Vgs-Gate-Source-Voltage is indeed 20 V
A: At what frequency does the Id-Continuous-Drain-Current?
Q: The product Id-Continuous-Drain-Current is 30 A.
A: At what frequency does the Vds-Drain-Source-Breakdown-Voltage?
Q: The product Vds-Drain-Source-Breakdown-Voltage is 30 V.
A: Is the cutoff frequency of the product Rds-On-Drain-Source-Resistance?
Q: Yes, the product's Rds-On-Drain-Source-Resistance is indeed 20 mOhms
A: What is the Transistor-Polarity of the product?
Q: The Transistor-Polarity of the product is N-Channel.
A: Is the cutoff frequency of the product Typical-Turn-Off-Delay-Time?
Q: Yes, the product's Typical-Turn-Off-Delay-Time is indeed 90 ns
A: At what frequency does the Typical-Turn-On-Delay-Time?
Q: The product Typical-Turn-On-Delay-Time is 35 ns.
A: What is the Forward-Transconductance-Min of the product?
Q: The Forward-Transconductance-Min of the product is 13 S.
A: At what frequency does the Channel-Mode?
Q: The product Channel-Mode is Enhancement.
