STD1NK80Z-1

STD1NK80Z-1 Overview

RoHS compliant with Details Input bias current of Through Hole Package type is IPAK-3 Single 1 Channel for basic signal processing The transistor polarity is N-Channel. 800 V is the Vds - Drain-Source Breakdown Voltage Continuous Drain Current identified as 1 A; The Rds On - Drain-Source Resistance of the product is 16 Ohms. The Vgs - Gate-Source Voltage attribute for this product is 30 V. The 3.75 V Gate-Source Threshold Voltage of Vgs th; 7.7 nC Gate Charge of Qg; Maximum Operating Temperature: + 150 C Si is the technology used. Tube is the packaging method for this product Enhancement Channel Mode Configuration Single Fall Time of 55 ns Minimum Forward Transconductance of 0.8 S. - 55 C minimum operating temperature The power dissipation is 45 W. 30 ns Rise Time Product belongs to the STD1NK80Z series. 1 N-Channel Transistor Type Typical Turn-Off Delay Time of 22 ns; The 8 ns typical turn-on delay time The Unit Weight is 0.139332 oz.

STD1NK80Z-1 Image

STD1NK80Z-1 Specifications

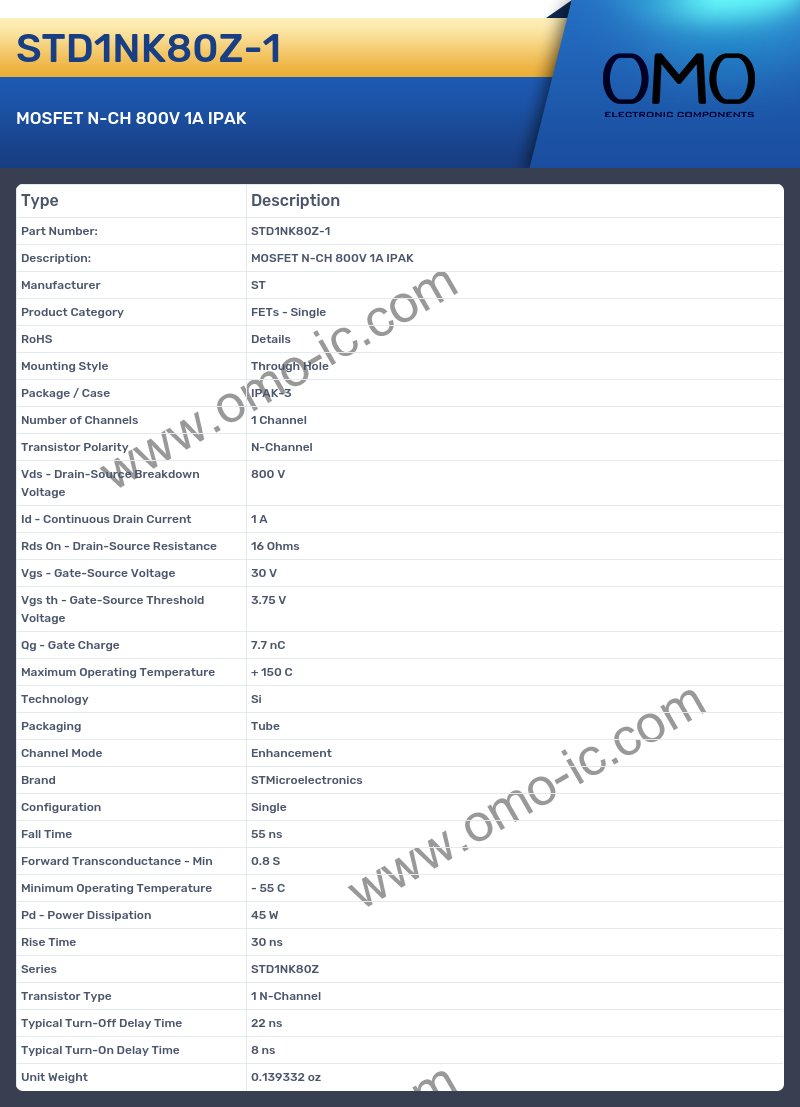

• Manufacturer ST
• Product Category FETs - Single
• RoHS Details
• Mounting Style Through Hole
• Package / Case IPAK-3
• Number of Channels 1 Channel
• Transistor Polarity N-Channel
• Vds - Drain-Source Breakdown Voltage 800 V
• Id - Continuous Drain Current 1 A
• Rds On - Drain-Source Resistance 16 Ohms
• Vgs - Gate-Source Voltage 30 V
• Vgs th - Gate-Source Threshold Voltage 3.75 V
• Qg - Gate Charge 7.7 nC
• Maximum Operating Temperature + 150 C
• Technology Si
• Packaging Tube
• Channel Mode Enhancement
• Brand STMicroelectronics
• Configuration Single
• Fall Time 55 ns
• Forward Transconductance - Min 0.8 S
• Minimum Operating Temperature - 55 C
• Pd - Power Dissipation 45 W
• Rise Time 30 ns
• Series STD1NK80Z
• Transistor Type 1 N-Channel
• Typical Turn-Off Delay Time 22 ns
• Typical Turn-On Delay Time 8 ns
• Unit Weight 0.139332 oz
