STB18NM60N

STB18NM60N Overview

Product belongs to the MDmesh II series. Cut Tape (CT) is the packaging method for this product Product Obsolete N-Channel FET Type MOSFET (Metal Oxide) is the technology used. Drain to Source Voltage (Vdss) is 600V Current - Continuous Drain (Id) at 25°C is given as 13A (Tc). This product's 10V is 1.8V, 4.5V. This product's 4V @ 250A for optimal performance. The maximum 35nC @ 10V gate charge of this product ensures efficient switching performance. Vgs (Max): ±25V This product has a maximum 1000pF @ 50V input capacitance at Vds for improved circuit performance. The maximum power dissipation is 110W (Tc). Rds On (Max) @ Id, Vgs is 285 mOhm @ 6.5A, 10V. Operating Temperature of -55°C ~ 150°C (TJ) This product has a Surface Mount. The supplier device package for this product is D2PAK. Package type is TO-263-3, DPak (2 Leads + Tab), TO-263AB

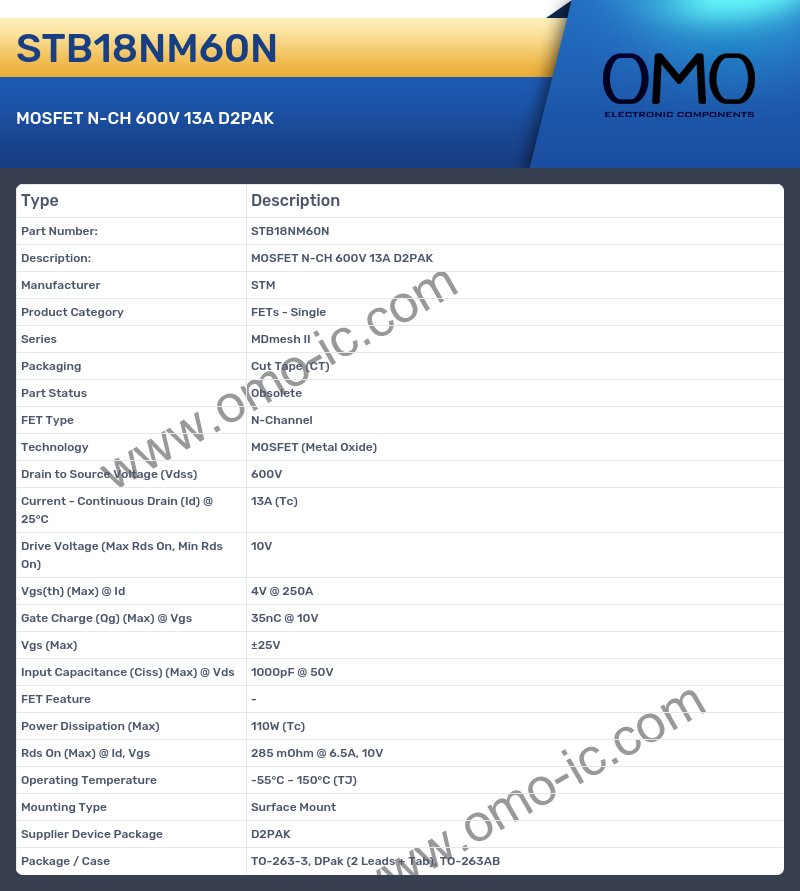

STB18NM60N Image

STB18NM60N Specifications

• Manufacturer STM
• Product Category FETs - Single
• Series MDmesh II
• Packaging Cut Tape (CT)
• Part Status Obsolete
• FET Type N-Channel
• Technology MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss) 600V
• Current - Continuous Drain (Id) @ 25°C 13A (Tc)
• Drive Voltage (Max Rds On, Min Rds On) 10V
• Vgs(th) (Max) @ Id 4V @ 250A
• Gate Charge (Qg) (Max) @ Vgs 35nC @ 10V
• Vgs (Max) ±25V
• Input Capacitance (Ciss) (Max) @ Vds 1000pF @ 50V
• FET Feature -
• Power Dissipation (Max) 110W (Tc)
• Rds On (Max) @ Id, Vgs 285 mOhm @ 6.5A, 10V
• Operating Temperature -55°C ~ 150°C (TJ)
• Mounting Type Surface Mount
• Supplier Device Package D2PAK
• Package / Case TO-263-3, DPak (2 Leads + Tab), TO-263AB
