ST1S50PUR

ST1S50PUR Overview

Product belongs to the ST1S50 series. Type: Step Down Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style Wide - 40 C to + 150 C operating temperature range for diverse applications VFDFPN-8 Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Output-Type: Adjustable Product function is Step-Down. Supplier device package: 8-VFDFPN (3x3) Number-of-Outputs: 1 Topology: Buck feedback This product features 'Frequency-Switching' at 500kHz for optimal performance. The Positive. Minimum fixed output voltage is 0.8V . The value of Yes is included as a product attribute. The minimum input voltage is 4V. The 18V. Power-off control: Shutdown Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C Output voltage: 0.8 V to 18 V 500 uA is 92 nA. Maximum Input Voltage: 18 V Output current: 4 A Switching frequency is 500 kHz The product's 4 V is 5.1 V. Minimum supply voltage is 4 V

ST1S50PUR Image

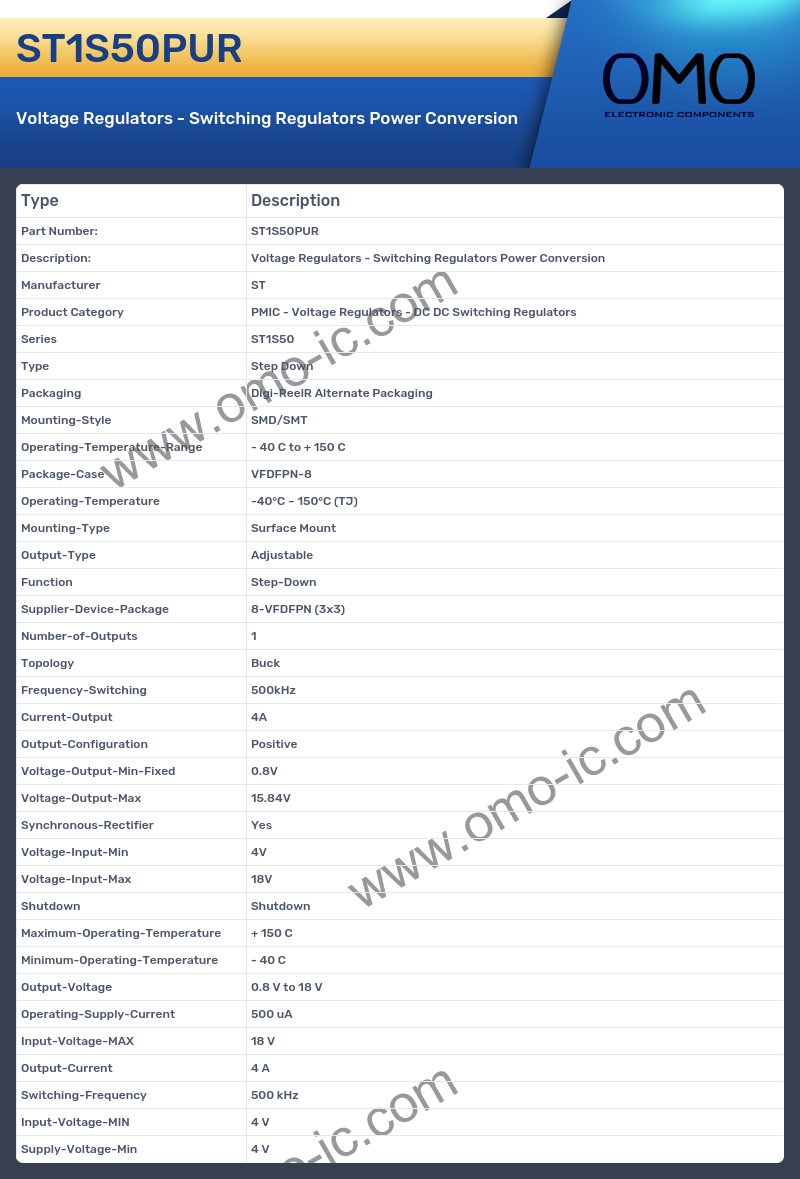

ST1S50PUR Specifications

• Manufacturer ST
• Product Category PMIC - Voltage Regulators - DC DC Switching Regulators
• Series ST1S50
• Type Step Down
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 150 C
• Package-Case VFDFPN-8
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Function Step-Down
• Supplier-Device-Package 8-VFDFPN (3x3)
• Number-of-Outputs 1
• Topology Buck
• Frequency-Switching 500kHz
• Current-Output 4A
• Output-Configuration Positive
• Voltage-Output-Min-Fixed 0.8V
• Voltage-Output-Max 15.84V
• Synchronous-Rectifier Yes
• Voltage-Input-Min 4V
• Voltage-Input-Max 18V
• Shutdown Shutdown
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 0.8 V to 18 V
• Operating-Supply-Current 500 uA
• Input-Voltage-MAX 18 V
• Output-Current 4 A
• Switching-Frequency 500 kHz
• Input-Voltage-MIN 4 V
• Supply-Voltage-Min 4 V
