SN75976A1DGG

SN75976A1DGG Overview

Product belongs to the SN75976A series. This product is categorized as RS-485 Transceivers Type: Transceiver Tube Alternate Packaging is the packaging method for this product Weight of 0.008917 oz SMD/SMT Mounting-Style TSSOP-56 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Output-Type: Differential Product function is Transceiver. Voltage Supply Range: 4.75 V ~ 5.25 V Supplier device package: 56-TSSOP This product has a 2016/9/9 number of drivers and receivers. Power-off control: Shutdown Power-off control: 2500 mW Maximum operating temperature of + 70 C Minimum operating temperature: 0 C This product operates at a 5 V supply voltage for reliable performance. Output voltage: 1.8 V 60 mA is 92 nA. Input Voltage Range: 5 V Output current: 260 mA Maximum supply voltage of 5.25 V Minimum supply voltage is 4.75 V Number-of-Drivers: 9 Driver The product has 9 Receiver receivers. 13.5 ns is 23 microseconds.

SN75976A1DGG Image

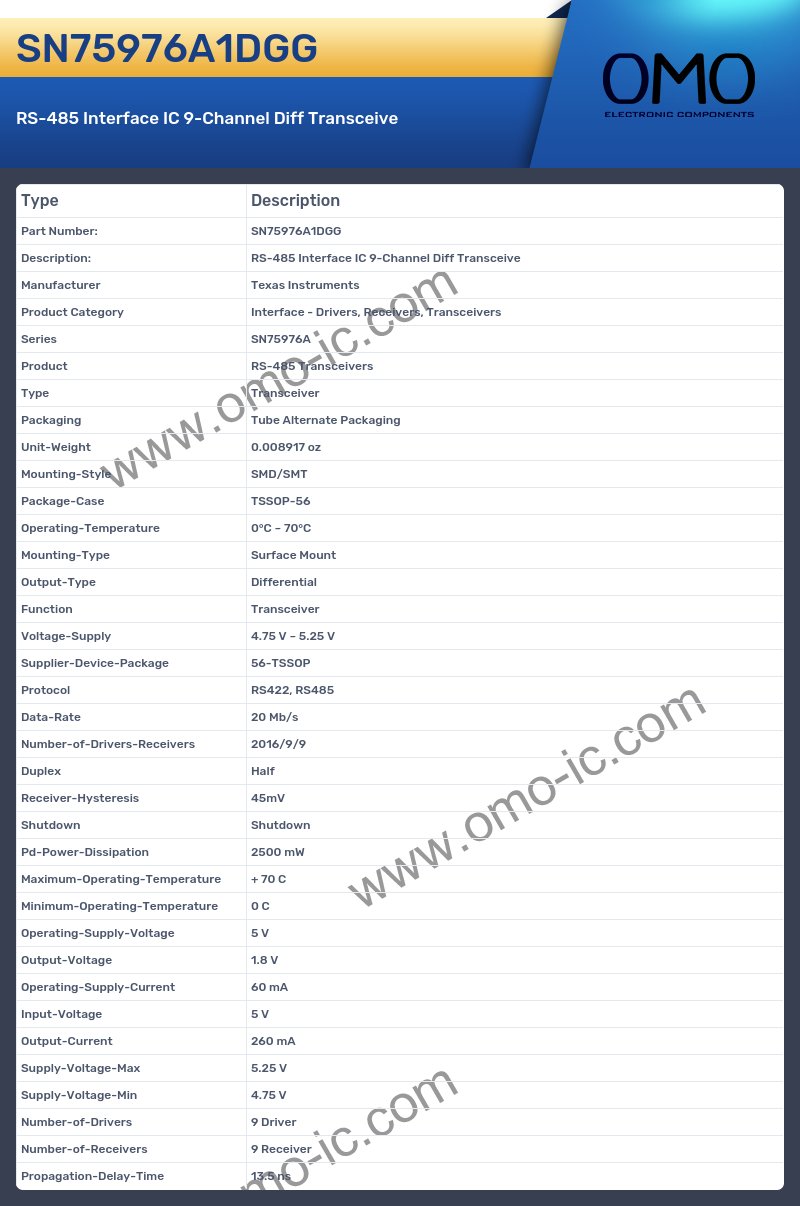

SN75976A1DGG Specifications

• Manufacturer Texas Instruments
• Product Category Interface - Drivers, Receivers, Transceivers
• Series SN75976A
• Product RS-485 Transceivers
• Type Transceiver
• Packaging Tube Alternate Packaging
• Unit-Weight 0.008917 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-56
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Output-Type Differential
• Function Transceiver
• Voltage-Supply 4.75 V ~ 5.25 V
• Supplier-Device-Package 56-TSSOP
• Protocol RS422, RS485
• Data-Rate 20 Mb/s
• Number-of-Drivers-Receivers 2016/9/9
• Duplex Half
• Receiver-Hysteresis 45mV
• Shutdown Shutdown
• Pd-Power-Dissipation 2500 mW
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Voltage 5 V
• Output-Voltage 1.8 V
• Operating-Supply-Current 60 mA
• Input-Voltage 5 V
• Output-Current 260 mA
• Supply-Voltage-Max 5.25 V
• Supply-Voltage-Min 4.75 V
• Number-of-Drivers 9 Driver
• Number-of-Receivers 9 Receiver
• Propagation-Delay-Time 13.5 ns
