SN74LVCZ244APWT

SN74LVCZ244APWT Overview

Product belongs to the 74LVCZ series. Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.002716 oz SMD/SMT Mounting-Style TSSOP-20 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: 3-State Number of channels: 8 Voltage Supply Range: 2.7 V ~ 3.6 V Supplier device package: 20-TSSOP 2 element Buffer/Line Driver, Non-Inverting logic type 4 bits per element Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Polarity: Non-Inverting 100 uA is 92 nA. Maximum supply voltage of 3.6 V Minimum supply voltage is 2.7 V LVC logic type 6.9 ns at 2.7 V 5.9 ns at 3.3 V is 23 microseconds. High-Level-Output-Current of - 24 mA 24 mA low-level output current Number-of-Input-Lines: 8 Input Number-of-Output-Lines: 3 Output

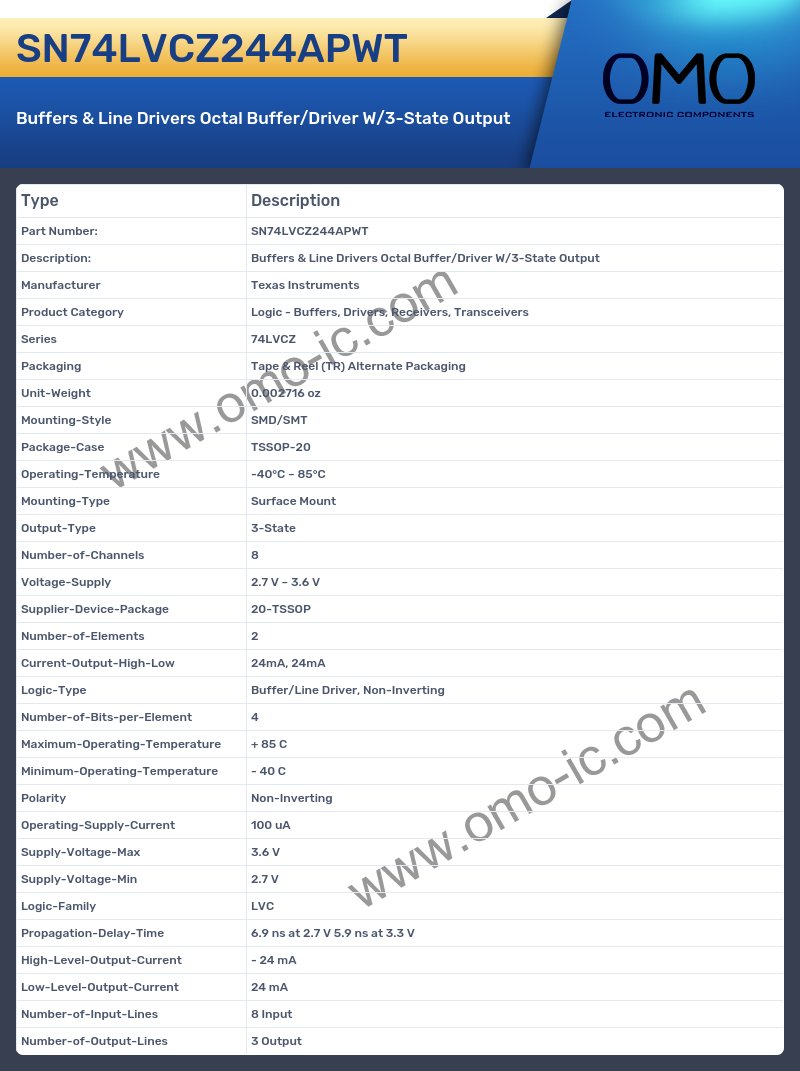

SN74LVCZ244APWT Image

SN74LVCZ244APWT Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Buffers, Drivers, Receivers, Transceivers
• Series 74LVCZ
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.002716 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-20
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Output-Type 3-State
• Number-of-Channels 8
• Voltage-Supply 2.7 V ~ 3.6 V
• Supplier-Device-Package 20-TSSOP
• Number-of-Elements 2
• Current-Output-High-Low 24mA, 24mA
• Logic-Type Buffer/Line Driver, Non-Inverting
• Number-of-Bits-per-Element 4
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Polarity Non-Inverting
• Operating-Supply-Current 100 uA
• Supply-Voltage-Max 3.6 V
• Supply-Voltage-Min 2.7 V
• Logic-Family LVC
• Propagation-Delay-Time 6.9 ns at 2.7 V 5.9 ns at 3.3 V
• High-Level-Output-Current - 24 mA
• Low-Level-Output-Current 24 mA
• Number-of-Input-Lines 8 Input
• Number-of-Output-Lines 3 Output
