SN74LV367AD

SN74LV367AD Overview

Product belongs to the 74LV series. Tube Alternate Packaging is the packaging method for this product Weight of 0.004998 oz SMD/SMT Mounting-Style SOIC-16 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: 3-State Number of channels: 5 Voltage Supply Range: 2 V ~ 5.5 V Supplier device package: 16-SOIC 2 element Buffer/Line Driver, Non-Inverting logic type bits per element Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Polarity: Non-Inverting 20 uA is 92 nA. Maximum supply voltage of 5.5 V Minimum supply voltage is 2 V LV logic type 17.5 ns at 2.5 V 11.8 ns at 3.3 7.9 ns at 5 V is 23 microseconds. High-Level-Output-Current of - 16 mA 16 mA low-level output current Number-of-Input-Lines: 6 Input Number-of-Output-Lines: 6 Output

SN74LV367AD Image

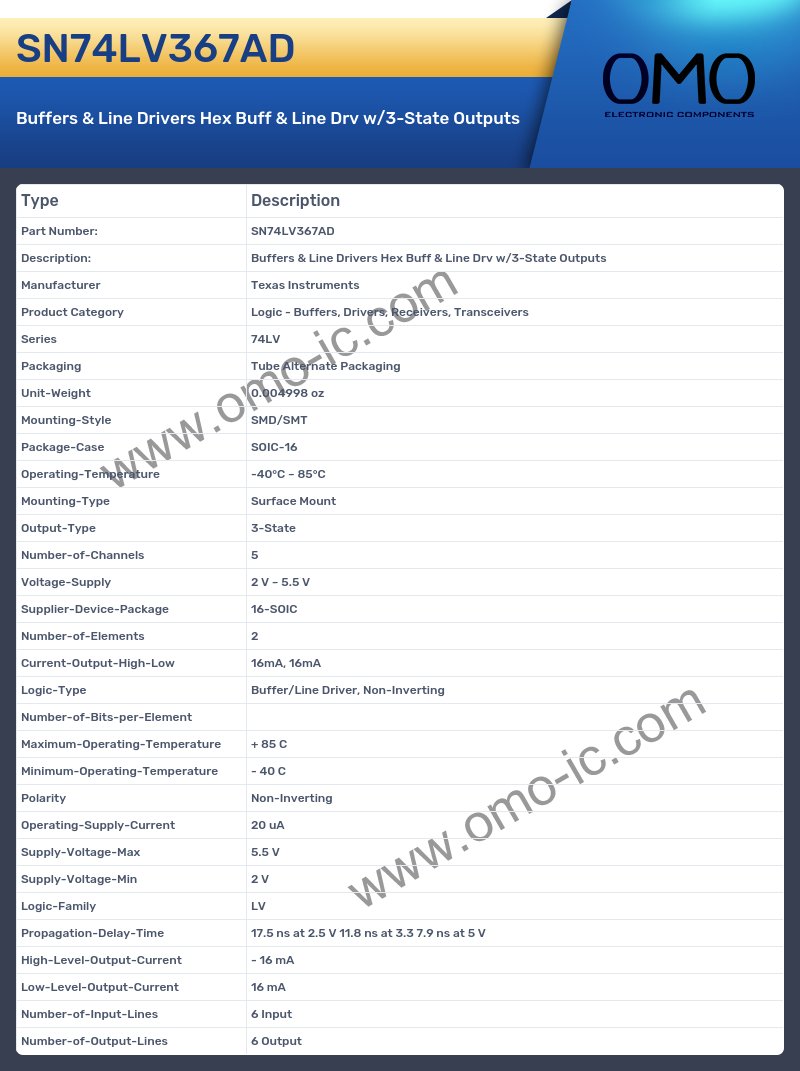

SN74LV367AD Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Buffers, Drivers, Receivers, Transceivers
• Series 74LV
• Packaging Tube Alternate Packaging
• Unit-Weight 0.004998 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-16
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Output-Type 3-State
• Number-of-Channels 5
• Voltage-Supply 2 V ~ 5.5 V
• Supplier-Device-Package 16-SOIC
• Number-of-Elements 2
• Current-Output-High-Low 16mA, 16mA
• Logic-Type Buffer/Line Driver, Non-Inverting
• Number-of-Bits-per-Element
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Polarity Non-Inverting
• Operating-Supply-Current 20 uA
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 2 V
• Logic-Family LV
• Propagation-Delay-Time 17.5 ns at 2.5 V 11.8 ns at 3.3 7.9 ns at 5 V
• High-Level-Output-Current - 16 mA
• Low-Level-Output-Current 16 mA
• Number-of-Input-Lines 6 Input
• Number-of-Output-Lines 6 Output
