SN74LV175APWR

SN74LV175APWR Overview

Product belongs to the 74LV series. Type: D-Type Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.002183 oz SMD/SMT Mounting-Style TSSOP-16 The CMOS for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Differential Product function is Master Reset. Voltage Supply Range: 2 V ~ 5.5 V 4 is 8. 165MHz is 26GHz. 1 element D-Type Flip-Flop logic type 4 bits per element Positive Edge trigger type Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Polarity: Inverting/Non-Inverting Maximum supply voltage of 5.5 V Minimum supply voltage is 2 V LV-A logic type 23.3 ns is 23 microseconds. High-Level-Output-Current of - 12 mA 12 mA low-level output current Number-of-Input-Lines: 2 Number-of-Output-Lines: 2

SN74LV175APWR Image

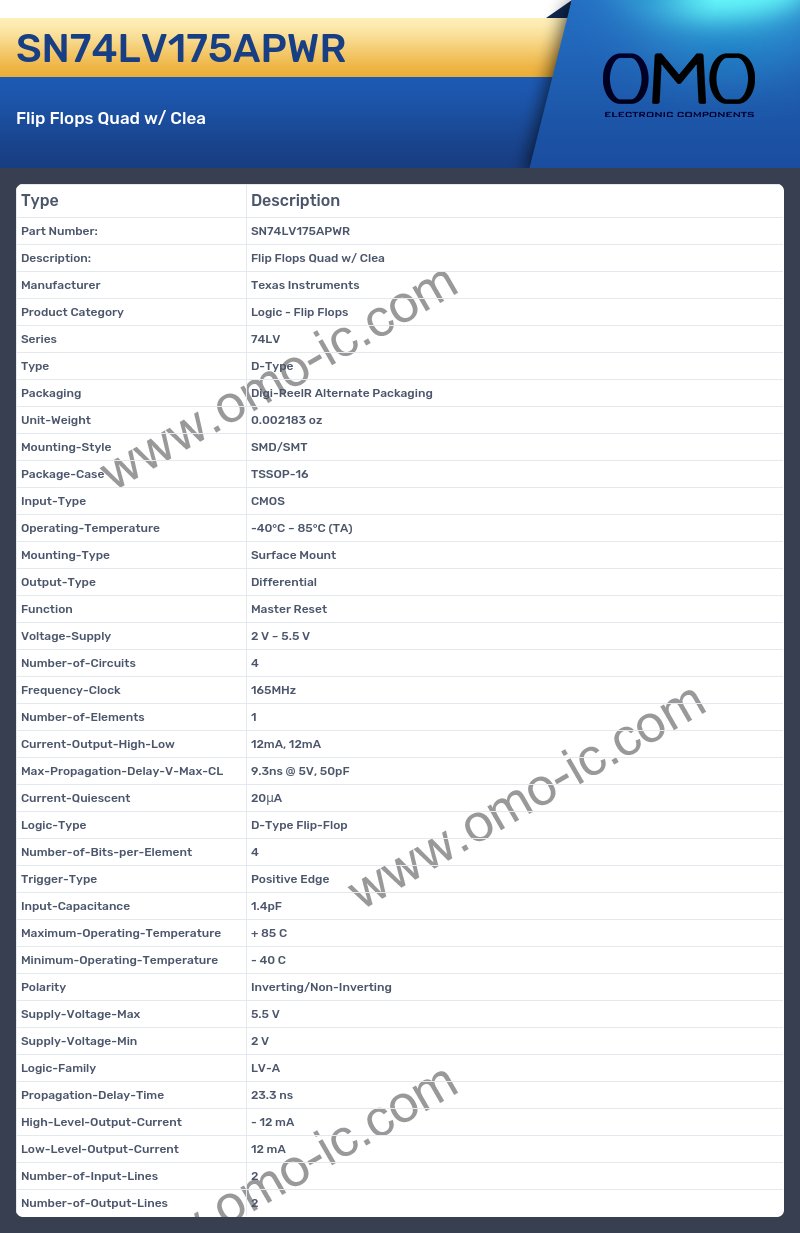

SN74LV175APWR Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Flip Flops
• Series 74LV
• Type D-Type
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.002183 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-16
• Input-Type CMOS
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Differential
• Function Master Reset
• Voltage-Supply 2 V ~ 5.5 V
• Number-of-Circuits 4
• Frequency-Clock 165MHz
• Number-of-Elements 1
• Current-Output-High-Low 12mA, 12mA
• Max-Propagation-Delay-V-Max-CL 9.3ns @ 5V, 50pF
• Current-Quiescent 20μA
• Logic-Type D-Type Flip-Flop
• Number-of-Bits-per-Element 4
• Trigger-Type Positive Edge
• Input-Capacitance 1.4pF
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Polarity Inverting/Non-Inverting
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 2 V
• Logic-Family LV-A
• Propagation-Delay-Time 23.3 ns
• High-Level-Output-Current - 12 mA
• Low-Level-Output-Current 12 mA
• Number-of-Input-Lines 2
• Number-of-Output-Lines 2
