| Mfr. #: | SN74LV125ADBR |
|---|---|
| Fabricante: | Texas Instruments |
| Descripción: | Buffers & Line Drivers Tri-State Quad Bus |
| Ciclo vital: | Nuevo de este fabricante. |
| Ficha de datos: | SN74LV125ADBR Ficha de datos |
Product belongs to the 74LV series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.004296 oz SMD/SMT Mounting-Style SSOP-14 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: 3-State Number of channels: 4 Voltage Supply Range: 2 V ~ 5.5 V Supplier device package: 14-SSOP 4 element Buffer/Line Driver, Non-Inverting logic type 1 bits per element Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Polarity: Non-Inverting 20 uA is 92 nA. Maximum supply voltage of 5.5 V Minimum supply voltage is 2 V LV logic type 16.5 ns at 2.5 V 11.5 ns at 3.3 V 7.5 ns at 5 V is 23 microseconds. High-Level-Output-Current of - 16 mA 16 mA low-level output current Number-of-Input-Lines: 4 Input Number-of-Output-Lines: 4 Output
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

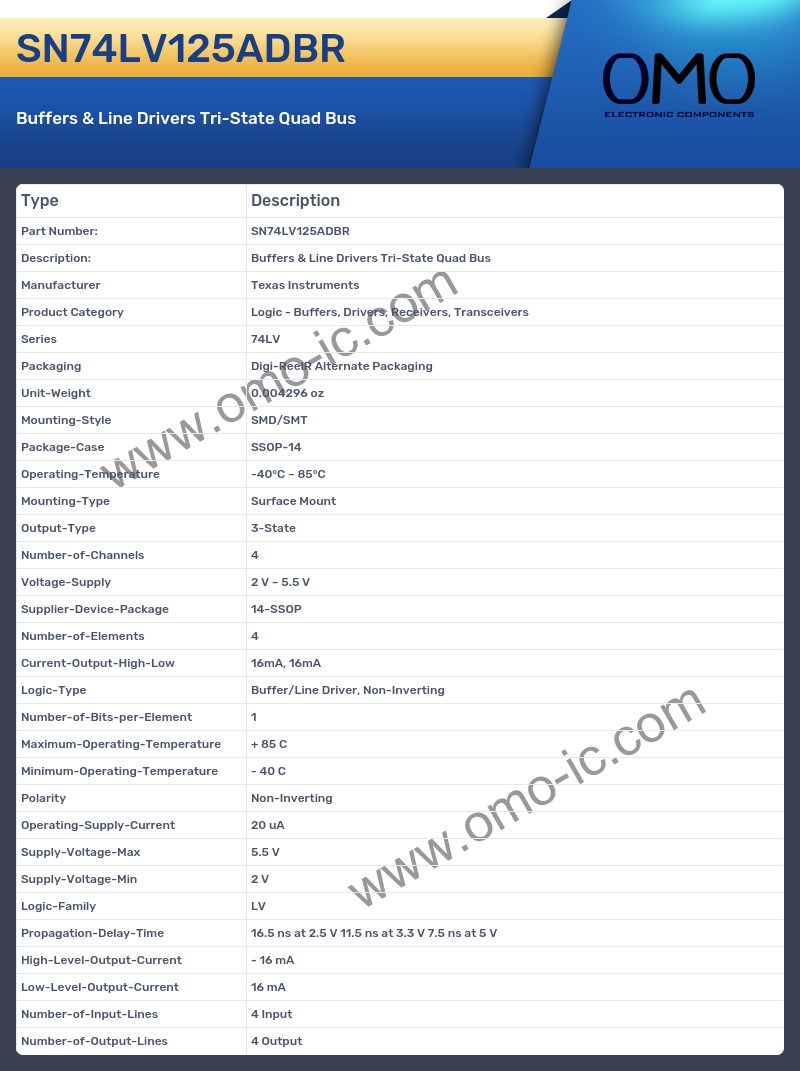

SN74LV125ADBR Specifications
A: What is the Series of the product?
Q: The Series of the product is 74LV.
A: What is the Packaging of the product?
Q: The Packaging of the product is Digi-ReelR Alternate Packaging.
A: What is the Unit-Weight of the product?
Q: The Unit-Weight of the product is 0.004296 oz.
A: At what frequency does the Mounting-Style?
Q: The product Mounting-Style is SMD/SMT.
A: At what frequency does the Package-Case?
Q: The product Package-Case is SSOP-14.
A: What is the Operating-Temperature of the product?
Q: The Operating-Temperature of the product is -40°C ~ 85°C.
A: Is the cutoff frequency of the product Mounting-Type?
Q: Yes, the product's Mounting-Type is indeed Surface Mount
A: What is the Output-Type of the product?
Q: The Output-Type of the product is 3-State.
A: At what frequency does the Number-of-Channels?
Q: The product Number-of-Channels is 4.
A: At what frequency does the Voltage-Supply?
Q: The product Voltage-Supply is 2 V ~ 5.5 V.
A: Is the cutoff frequency of the product Supplier-Device-Package?
Q: Yes, the product's Supplier-Device-Package is indeed 14-SSOP
A: At what frequency does the Number-of-Elements?
Q: The product Number-of-Elements is 4.
A: Is the cutoff frequency of the product Logic-Type?
Q: Yes, the product's Logic-Type is indeed Buffer/Line Driver, Non-Inverting
A: At what frequency does the Number-of-Bits-per-Element?
Q: The product Number-of-Bits-per-Element is 1.
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 85 C.
A: What is the Minimum-Operating-Temperature of the product?
Q: The Minimum-Operating-Temperature of the product is - 40 C.
A: Is the cutoff frequency of the product Polarity?
Q: Yes, the product's Polarity is indeed Non-Inverting
A: What is the Operating-Supply-Current of the product?
Q: The Operating-Supply-Current of the product is 20 uA.
A: What is the Supply-Voltage-Max of the product?
Q: The Supply-Voltage-Max of the product is 5.5 V.
A: What is the Supply-Voltage-Min of the product?
Q: The Supply-Voltage-Min of the product is 2 V.
A: At what frequency does the Logic-Family?
Q: The product Logic-Family is LV.
A: Is the cutoff frequency of the product Propagation-Delay-Time?
Q: Yes, the product's Propagation-Delay-Time is indeed 16.5 ns at 2.5 V 11.5 ns at 3.3 V 7.5 ns at 5 V
A: At what frequency does the High-Level-Output-Current?
Q: The product High-Level-Output-Current is - 16 mA.
A: Is the cutoff frequency of the product Low-Level-Output-Current?
Q: Yes, the product's Low-Level-Output-Current is indeed 16 mA
A: At what frequency does the Number-of-Input-Lines?
Q: The product Number-of-Input-Lines is 4 Input.
A: At what frequency does the Number-of-Output-Lines?
Q: The product Number-of-Output-Lines is 4 Output.
