SN74LS641N

SN74LS641N Overview

Product belongs to the 74LS series. This product is categorized as Standard Transceiver Tube Alternate Packaging is the packaging method for this product Weight of 0.042297 oz Through Hole Mounting-Style PDIP-20 Operational temperature range: 0°C ~ 70°C Through Hole mounting type Output-Type: Open Collector Product function is Bus Transceiver. Number of channels: 8 Voltage Supply Range: 4.75 V ~ 5.25 V Supplier device package: 20-PDIP 8 is 8. 1 element Transceiver, Non-Inverting logic type 8 bits per element Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Polarity: Non-Inverting Maximum supply voltage of 5.25 V Minimum supply voltage is 4.75 V LS logic type 25 ns is 23 microseconds. TTL is the output level. This product has an TTL for easy integration with other devices. High-Level-Output-Current of - 15 mA 24 mA low-level output current

SN74LS641N Image

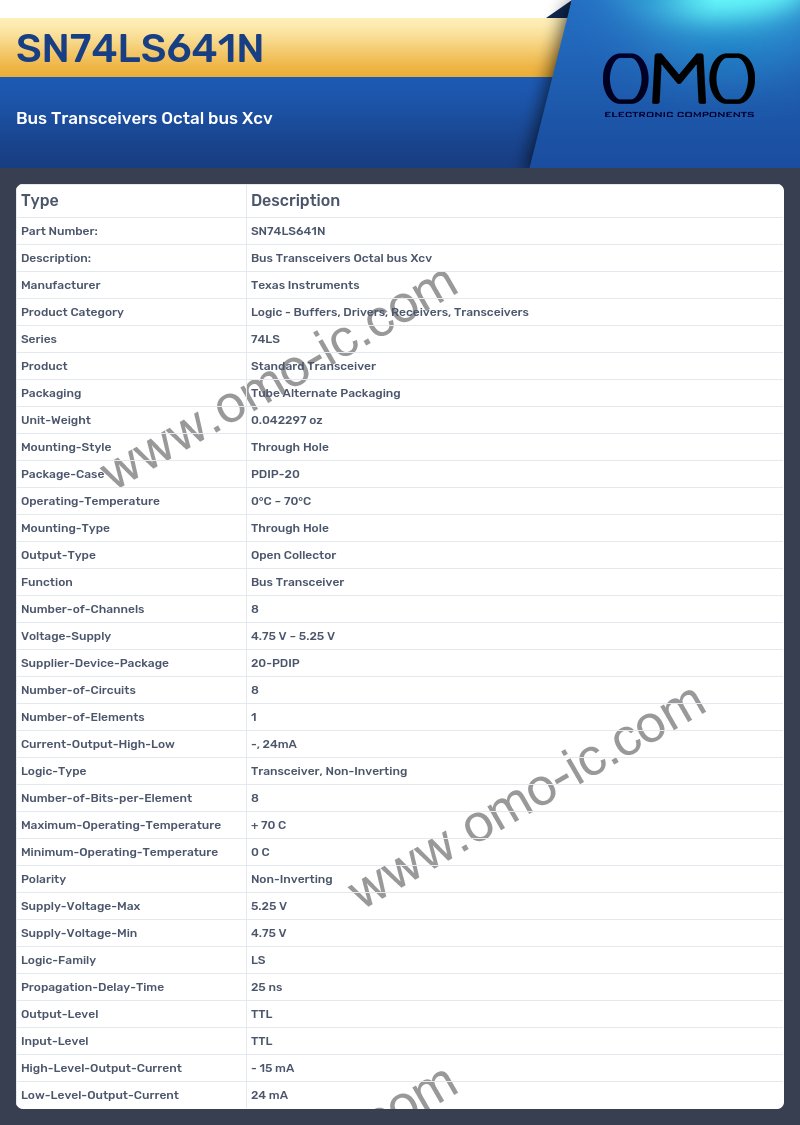

SN74LS641N Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Buffers, Drivers, Receivers, Transceivers
• Series 74LS
• Product Standard Transceiver
• Packaging Tube Alternate Packaging
• Unit-Weight 0.042297 oz
• Mounting-Style Through Hole
• Package-Case PDIP-20
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Through Hole
• Output-Type Open Collector
• Function Bus Transceiver
• Number-of-Channels 8
• Voltage-Supply 4.75 V ~ 5.25 V
• Supplier-Device-Package 20-PDIP
• Number-of-Circuits 8
• Number-of-Elements 1
• Current-Output-High-Low -, 24mA
• Logic-Type Transceiver, Non-Inverting
• Number-of-Bits-per-Element 8
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Polarity Non-Inverting
• Supply-Voltage-Max 5.25 V
• Supply-Voltage-Min 4.75 V
• Logic-Family LS
• Propagation-Delay-Time 25 ns
• Output-Level TTL
• Input-Level TTL
• High-Level-Output-Current - 15 mA
• Low-Level-Output-Current 24 mA
