| Mfr. #: | SN74LS126AN |
|---|---|
| Fabricante: | Texas Instruments |
| Descripción: | Buffers & Line Drivers Quad Bus Buffer With 3-State Outputs |
| Ciclo vital: | Nuevo de este fabricante. |
| Ficha de datos: | SN74LS126AN Ficha de datos |
Product belongs to the 74LS series. Tube Alternate Packaging is the packaging method for this product Weight of 0.032734 oz Through Hole Mounting-Style PDIP-14 Operational temperature range: 0°C ~ 70°C Through Hole mounting type Output-Type: 3-State Number of channels: 4 Voltage Supply Range: 4.75 V ~ 5.25 V Supplier device package: 14-PDIP 4 element Buffer/Line Driver, Non-Inverting logic type 1 bits per element Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Polarity: Non-Inverting 62 uA is 92 nA. Maximum supply voltage of 5.25 V Minimum supply voltage is 4.75 V LS logic type 18 ns at 5 V is 23 microseconds. High-Level-Output-Current of - 2.6 mA 24 mA low-level output current Number-of-Input-Lines: 4 Input Number-of-Output-Lines: 4 Output
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

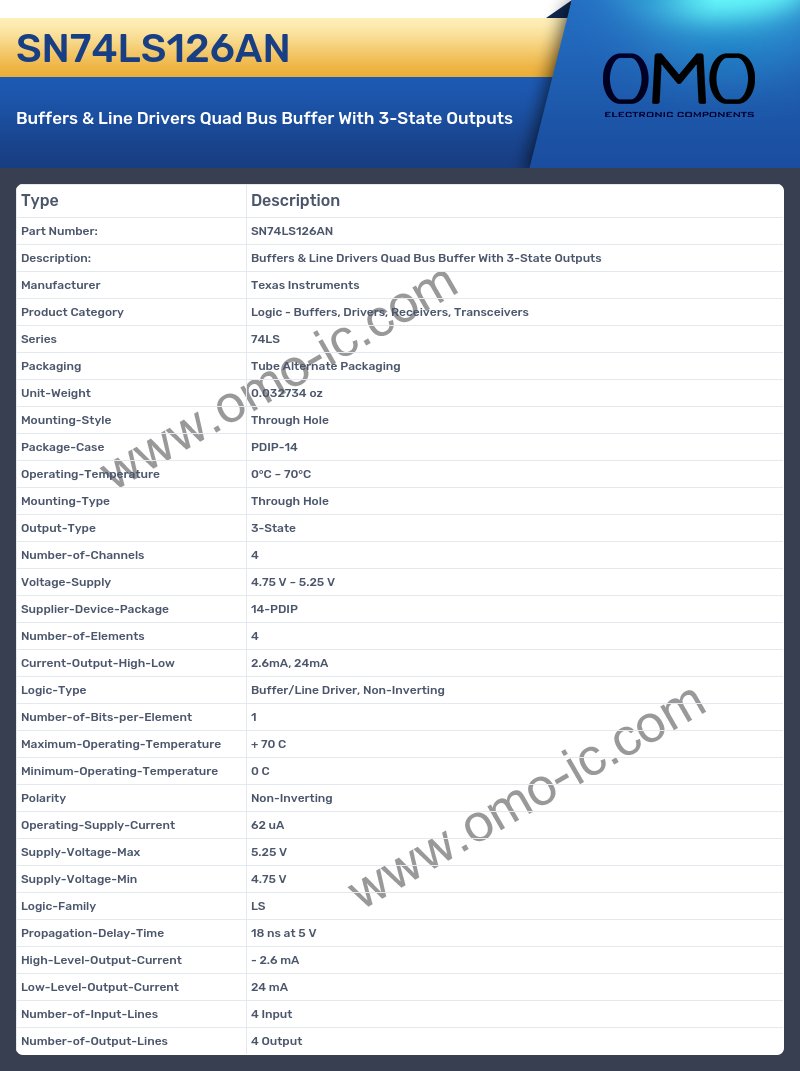

SN74LS126AN Specifications
A: What is the Series of the product?
Q: The Series of the product is 74LS.
A: What is the Packaging of the product?
Q: The Packaging of the product is Tube Alternate Packaging.
A: Is the cutoff frequency of the product Unit-Weight?
Q: Yes, the product's Unit-Weight is indeed 0.032734 oz
A: Is the cutoff frequency of the product Mounting-Style?
Q: Yes, the product's Mounting-Style is indeed Through Hole
A: Is the cutoff frequency of the product Package-Case?
Q: Yes, the product's Package-Case is indeed PDIP-14
A: At what frequency does the Operating-Temperature?
Q: The product Operating-Temperature is 0°C ~ 70°C.
A: Is the cutoff frequency of the product Mounting-Type?
Q: Yes, the product's Mounting-Type is indeed Through Hole
A: What is the Output-Type of the product?
Q: The Output-Type of the product is 3-State.
A: At what frequency does the Number-of-Channels?
Q: The product Number-of-Channels is 4.
A: What is the Voltage-Supply of the product?
Q: The Voltage-Supply of the product is 4.75 V ~ 5.25 V.
A: What is the Supplier-Device-Package of the product?
Q: The Supplier-Device-Package of the product is 14-PDIP.
A: At what frequency does the Number-of-Elements?
Q: The product Number-of-Elements is 4.
A: Is the cutoff frequency of the product Logic-Type?
Q: Yes, the product's Logic-Type is indeed Buffer/Line Driver, Non-Inverting
A: Is the cutoff frequency of the product Number-of-Bits-per-Element?
Q: Yes, the product's Number-of-Bits-per-Element is indeed 1
A: Is the cutoff frequency of the product Maximum-Operating-Temperature?
Q: Yes, the product's Maximum-Operating-Temperature is indeed + 70 C
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed 0 C
A: What is the Polarity of the product?
Q: The Polarity of the product is Non-Inverting.
A: At what frequency does the Operating-Supply-Current?
Q: The product Operating-Supply-Current is 62 uA.
A: At what frequency does the Supply-Voltage-Max?
Q: The product Supply-Voltage-Max is 5.25 V.
A: What is the Supply-Voltage-Min of the product?
Q: The Supply-Voltage-Min of the product is 4.75 V.
A: At what frequency does the Logic-Family?
Q: The product Logic-Family is LS.
A: What is the Propagation-Delay-Time of the product?
Q: The Propagation-Delay-Time of the product is 18 ns at 5 V.
A: Is the cutoff frequency of the product High-Level-Output-Current?
Q: Yes, the product's High-Level-Output-Current is indeed - 2.6 mA
A: Is the cutoff frequency of the product Low-Level-Output-Current?
Q: Yes, the product's Low-Level-Output-Current is indeed 24 mA
A: What is the Number-of-Input-Lines of the product?
Q: The Number-of-Input-Lines of the product is 4 Input.
A: Is the cutoff frequency of the product Number-of-Output-Lines?
Q: Yes, the product's Number-of-Output-Lines is indeed 4 Output
