SN74HC377DW

SN74HC377DW Overview

Product belongs to the 74HC series. Type: D-Type Tube Alternate Packaging is the packaging method for this product Weight of 0.017662 oz SMD/SMT Mounting-Style SOIC-20 Wide The CMOS for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Non-Inverted Product function is Standard. Voltage Supply Range: 2 V ~ 6 V 8 is 8. 64MHz is 26GHz. 1 element D-Type Flip-Flop logic type 8 bits per element Positive Edge trigger type Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Polarity: Non-Inverting Maximum supply voltage of 6 V Minimum supply voltage is 2 V HC logic type 160 ns is 23 microseconds. High-Level-Output-Current of - 5.2 mA 5.2 mA low-level output current Number-of-Input-Lines: 3 Number-of-Output-Lines: 1

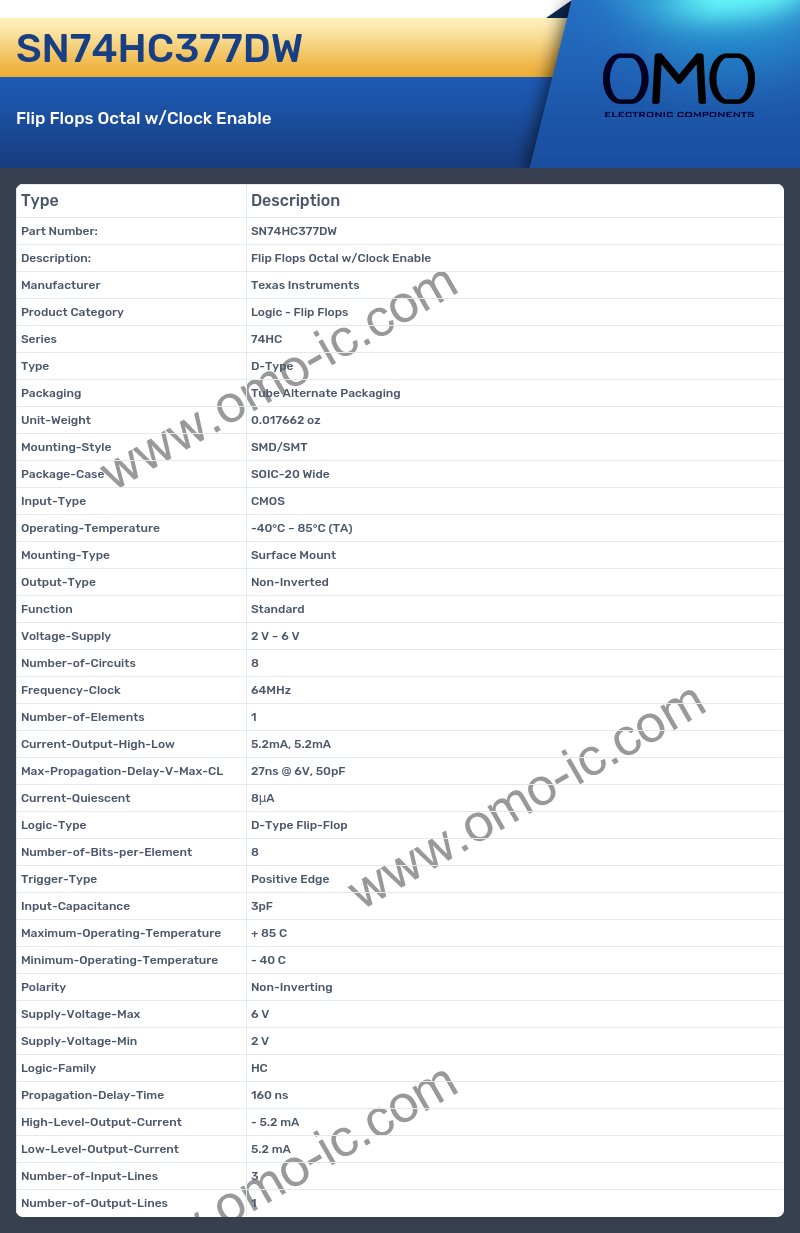

SN74HC377DW Image

SN74HC377DW Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Flip Flops
• Series 74HC
• Type D-Type
• Packaging Tube Alternate Packaging
• Unit-Weight 0.017662 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-20 Wide
• Input-Type CMOS
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Non-Inverted
• Function Standard
• Voltage-Supply 2 V ~ 6 V
• Number-of-Circuits 8
• Frequency-Clock 64MHz
• Number-of-Elements 1
• Current-Output-High-Low 5.2mA, 5.2mA
• Max-Propagation-Delay-V-Max-CL 27ns @ 6V, 50pF
• Current-Quiescent 8μA
• Logic-Type D-Type Flip-Flop
• Number-of-Bits-per-Element 8
• Trigger-Type Positive Edge
• Input-Capacitance 3pF
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Polarity Non-Inverting
• Supply-Voltage-Max 6 V
• Supply-Voltage-Min 2 V
• Logic-Family HC
• Propagation-Delay-Time 160 ns
• High-Level-Output-Current - 5.2 mA
• Low-Level-Output-Current 5.2 mA
• Number-of-Input-Lines 3
• Number-of-Output-Lines 1
